- RS Stock No.:
- 179-4724
- Mfr. Part No.:
- HS1L-R44KMSRM-G
- Brand:
- Idec
7 In stock - FREE next working day delivery available
Added
Price Each
£271.51
(exc. VAT)
£325.81
(inc. VAT)
Units | Per unit |
1 - 24 | £271.51 |
25 - 49 | £252.50 |
50 + | £238.92 |
- RS Stock No.:
- 179-4724
- Mfr. Part No.:
- HS1L-R44KMSRM-G
- Brand:
- Idec
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

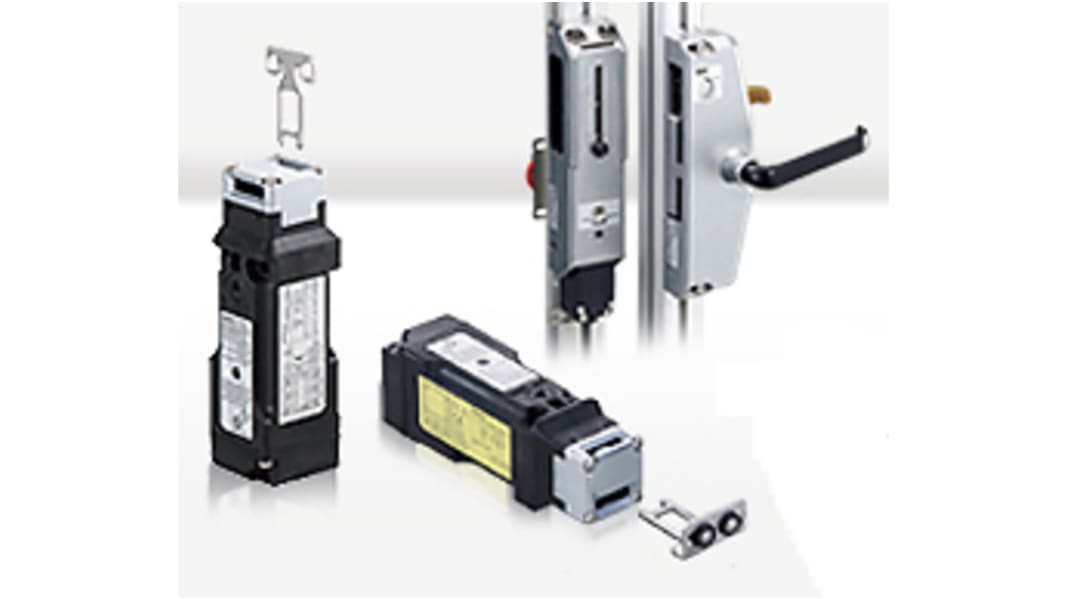

Idec Switch
The Idec HS1L series safety interlock switch has increased locking strength of 3000N and six contacts in a compact dimension housing. It is designed for applications with large machines that have heavy doors or gates. This model is equipped with a manual lock release key and an LED indicator.
Features and Benefits
1NC+1NC (main), 1NO/1NC (door monitor), 2NC (lock monitor) safety contacts
Compact in size
Door open, closed and locked status can be monitored
Easy to wire screw terminals
LED illumination colour is green
M20 connection type
No barriers on the sides of the contact terminal
Operating temperature ranges between -20°C and 55°C
Spring lock type
Compact in size
Door open, closed and locked status can be monitored
Easy to wire screw terminals
LED illumination colour is green
M20 connection type
No barriers on the sides of the contact terminal
Operating temperature ranges between -20°C and 55°C
Spring lock type
Applications
Doors
Certifications
CCC certified
CE certified
cUL listed
IP67 rated
TUV
CE certified
cUL listed
IP67 rated
TUV
Specifications
Attribute | Value |
---|---|
Lock Style | Keyed |
Normal State Configuration | 1NC/1NC + 1NC/1NO + 2NC |
Lock Type | Spring Lock |
Maximum AC Voltage | 250V |
Maximum DC Voltage | 30V |
Connection Type | M20 |
IP Rating | IP67 |
Series | HS1L |
Width | 63mm |
Minimum Operating Temperature | -20°C |
Maximum Current | 10A |
Depth | 129mm |
Length | 104mm |
Maximum Operating Temperature | +55°C |
