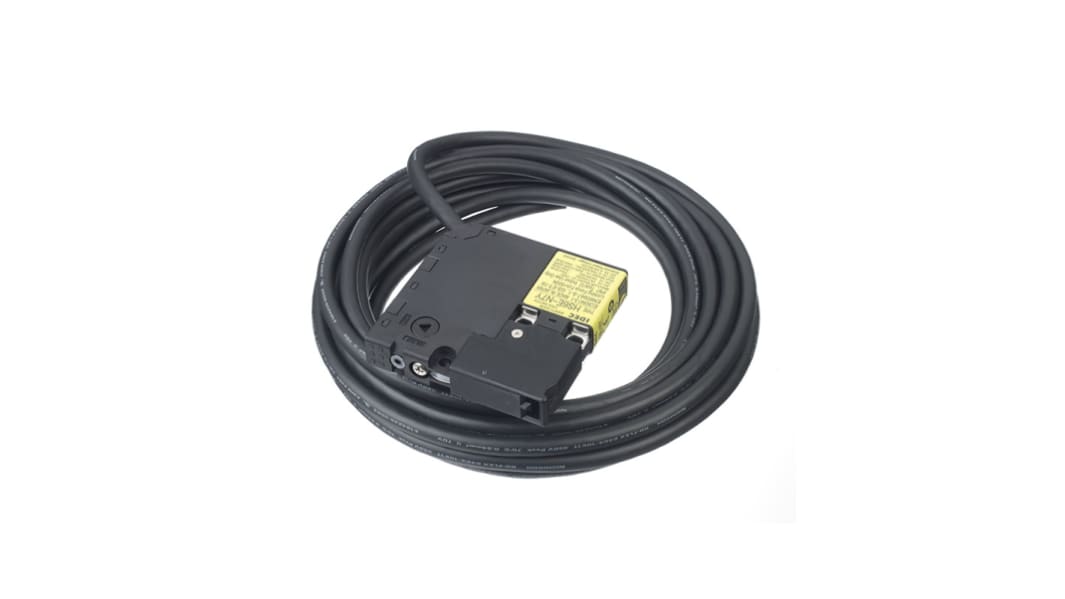

Idec HS6E Safety Interlock Switch, Keyed Actuator Included, Plastic, Solenoid Lock

View all Safety Interlock Switches
Bulk discount available

Subtotal (1 unit)*

£191.80

(exc. VAT)

£230.16

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 29 unit(s) ready to ship
  • Plus 999,999,970 unit(s) shipping from 27 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£191.80
25 - 49£178.38
50 +£168.79

*price indicative

RS Stock No.:
179-4755
Distrelec Article No.:
301-02-441
Mfr. Part No.:
HS6E-N7Y4B05-G
Brand:
Idec
Find similar products by selecting one or more attributes.
Select all

Brand

Idec

Lock Style

Keyed

Lock Type

Solenoid Lock

Actuator Included

Yes

Maximum AC Voltage

250V

Maximum DC Voltage

30V

Connection Type

Cable

Housing Material

Plastic

IP Rating

IP67

Series

HS6E

Maximum Current

2.5A

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+50°C

Depth

75mm

Length

75mm

Width

15mm

COO (Country of Origin):
JP

IDEC Switch


The IDEC HS6B subminiature 5-pole safety interlock switch is the world's smallest switch. It comes in a dimension of 30mm x 15mm x 78mm. This interlock switch is available with a 5m cable length.

Features and Benefits


• 1NC+1NC(main), 1NC, 1NO(door monitor) and 1NO(lock monitor) contact configuration
• Cable connection type
• Compact
• Easy to install
• Highest safety achieve by dual contacts and monitor contacts
• Integral cable design minimizes wiring, preventing wiring
• LED indicator shows solenoid operation
• Service temperature ranges between -25°C and 50°C
• Solenoid lock type
• Two actuator entry slots provide flexibility for installation

Applications


• Tight spaces

Certifications


• CCC certified
• CE certified
• CSA C22.2 No• 14
• CULus listed
• EN1088
• EN60947-5-1
• EN954-1
• GB14048.5
• GS-ET-15
• IEC 60529
• IEC /EN60204-1
• IEC /EN60947-5-1
• IP67 rating
• ISO14119
• SO 13849-1
• TÜV approved
• UL508
• UL-listed
