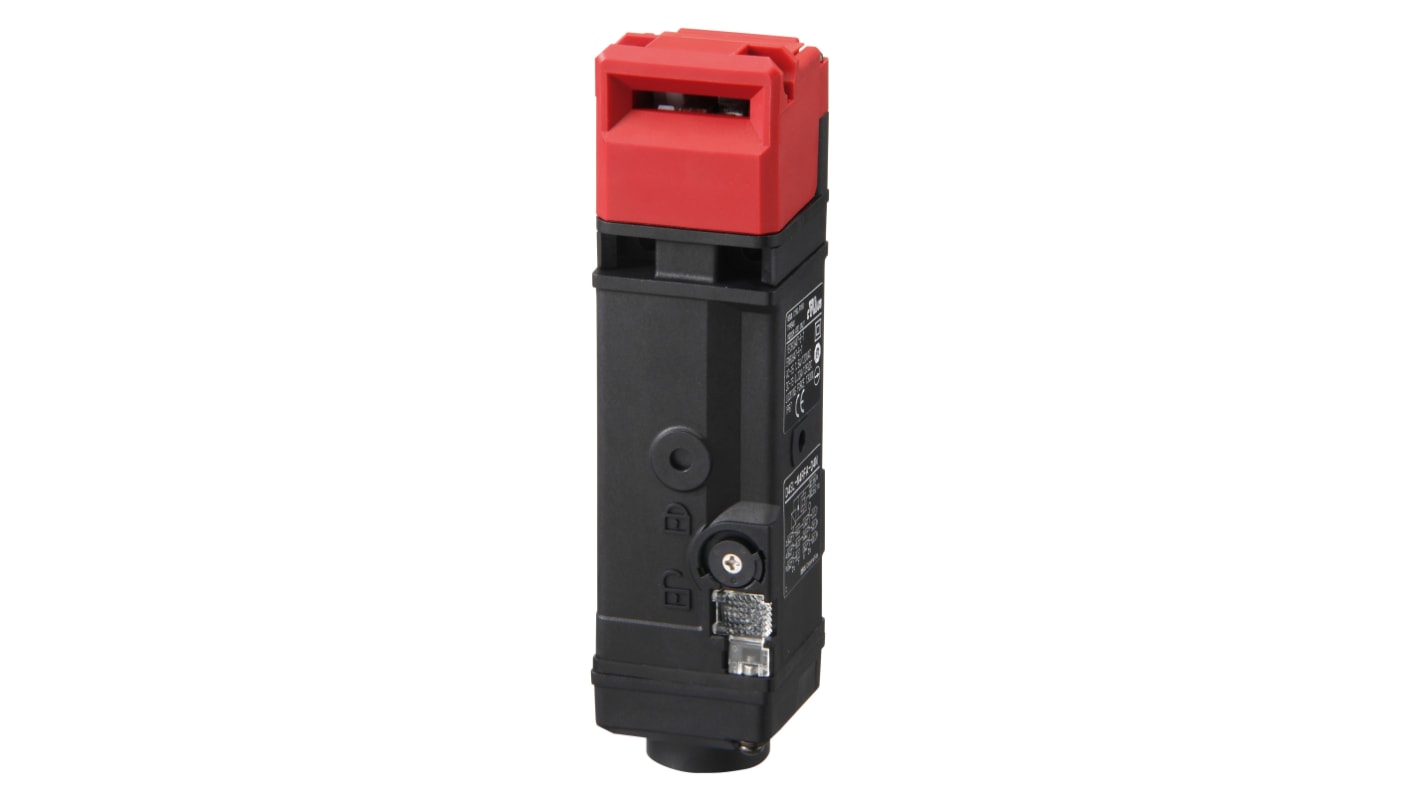

Omron D4SL Door Switch, Key, Plastic, Key
- RS Stock No.:
- 214-7556
- Distrelec Article No.:
- 301-36-841
- Mfr. Part No.:
- D4SL-N2NFG-DN
- Brand:
- Omron
Subtotal (1 unit)*
£148.32
(exc. VAT)
£177.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 51 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £148.32 |
*price indicative
- RS Stock No.:
- 214-7556
- Distrelec Article No.:
- 301-36-841
- Mfr. Part No.:
- D4SL-N2NFG-DN
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Door Switch | |
| Lock Style | Key | |
| Lock Type | Key | |
| Actuator Included | No | |
| Safety Contacts | 2 NC/1 NO, 2 NC/1 NO | |
| Housing Material | Plastic | |
| Series | D4SL | |
| IP Rating | IP67 | |
| Minimum Operating Temperature | -10°C | |
| Number of Auxiliary Contacts | 3 | |
| Contact AC Voltage | 120V ac | |
| Switch Contact Current | 1.5A | |
| Hazardous Area Certification | No | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UL, CCC, CE | |
| Width | 179.5mm | |
| Depth | 39mm | |
| Number of Head Directions | 4 | |
| Length | 39mm | |
| Conduit Entry | G 1/2 | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Door Switch | ||
Lock Style Key | ||
Lock Type Key | ||
Actuator Included No | ||
Safety Contacts 2 NC/1 NO, 2 NC/1 NO | ||
Housing Material Plastic | ||
Series D4SL | ||
IP Rating IP67 | ||
Minimum Operating Temperature -10°C | ||
Number of Auxiliary Contacts 3 | ||
Contact AC Voltage 120V ac | ||
Switch Contact Current 1.5A | ||
Hazardous Area Certification No | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UL, CCC, CE | ||
Width 179.5mm | ||
Depth 39mm | ||
Number of Head Directions 4 | ||
Length 39mm | ||
Conduit Entry G 1/2 | ||
Omron D4SL Series Door Switch, IP67, 179.5mm Width - D4SL-N2NFG-DN
This door switch is a rugged interlock device designed to monitor access points in industrial control systems. It provides a keyed locking mechanism for secure actuation and is intended for use where environmental protection and clear status signalling are required.
Features & Benefits
• IP67 rated enclosure protects against dust and immersion
• Key-operated lock prevents unauthorised opening
• 2NC/1NO safety contact arrangement for clear safety logic
• Three auxiliary contacts enable expanded monitoring functions
• Compatible with 120V AC switching for common control circuits
• Operating range from -10°C to 55°C supports varied environments
• Key-operated lock prevents unauthorised opening
• 2NC/1NO safety contact arrangement for clear safety logic
• Three auxiliary contacts enable expanded monitoring functions
• Compatible with 120V AC switching for common control circuits
• Operating range from -10°C to 55°C supports varied environments
**Applications**
• Suitable for guarding access on automated conveyor cells
• Ideal for interlocking doors on electrical distribution cabinets
• Used with safety relays in machine safeguarding systems
• Can be used for access control on packaging machinery
• Ideal for interlocking doors on electrical distribution cabinets
• Used with safety relays in machine safeguarding systems
• Can be used for access control on packaging machinery
What conduit connection is provided for wiring?
The unit accepts a G1/2 conduit entry to simplify cable routing and gland fitting.
How many mechanical orientations are available for installation?
The head supports four mounting directions to aid alignment in confined assemblies.
What materials are used for the external shell?
The housing is formed from a Durable plastic suited to industrial enclosures.
What approvals does it carry for international deployment?
It meets UL, CCC and CE standards for recognised safety and conformity.
How does the switch perform electrically at rated loads?
Contact switching capability is 1.5A for control and signalling circuits.
