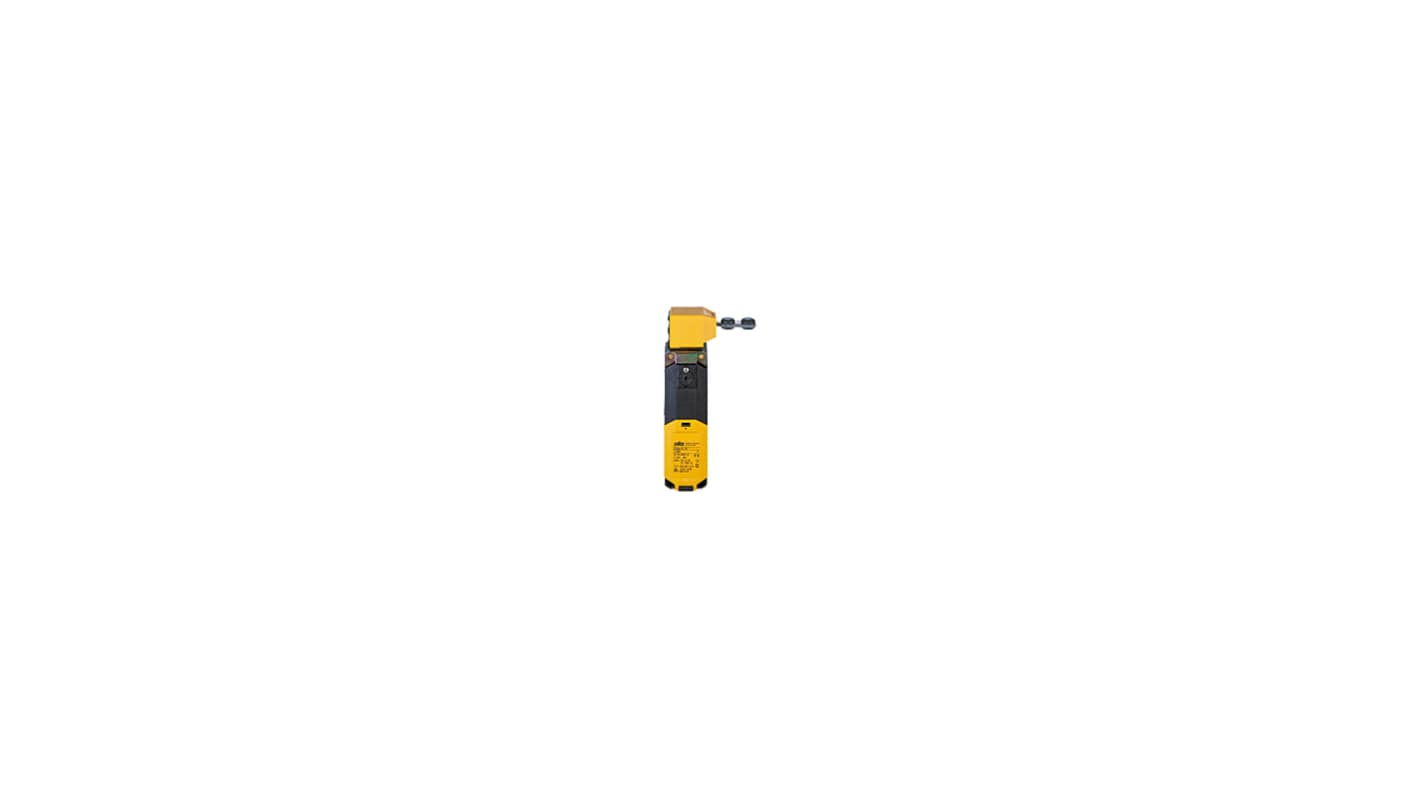

Pilz CCC, cCSAus, CE, BG, EAC 570004 Safety Switch, Actuator Actuator Included, Guard, Interlock
- RS Stock No.:
- 340-321
- Mfr. Part No.:
- 570004
- Brand:
- Pilz
Subtotal (1 unit)*
£157.80
(exc. VAT)
£189.36
(inc. VAT)
FREE delivery for orders over £60.00
Limited stock
- 9 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £157.80 |
*price indicative
- RS Stock No.:
- 340-321
- Mfr. Part No.:
- 570004
- Brand:
- Pilz
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Pilz | |
| Lock Style | Actuator | |
| Product Type | Safety Switch | |
| Lock Type | Guard, Interlock | |
| Actuator Included | Yes | |
| Safety Contacts | 2 NO/2 NC | |
| Series | 570004 | |
| Contact AC Voltage | 240V ac | |
| Contact DC Voltage | 24V dc | |
| Minimum Operating Temperature | -25°C | |
| Switch Contact Current | 2.5A | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | CCC, cCSAus, CE, BG, EAC | |
| Width | 42.5mm | |
| Length | 184mm | |
| Depth | 51mm | |
| Standards/Approvals | EN 60947-5-1, EN 60947-4-1 | |
| Select all | ||
|---|---|---|
Brand Pilz | ||
Lock Style Actuator | ||
Product Type Safety Switch | ||
Lock Type Guard, Interlock | ||
Actuator Included Yes | ||
Safety Contacts 2 NO/2 NC | ||
Series 570004 | ||
Contact AC Voltage 240V ac | ||
Contact DC Voltage 24V dc | ||
Minimum Operating Temperature -25°C | ||
Switch Contact Current 2.5A | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification CCC, cCSAus, CE, BG, EAC | ||
Width 42.5mm | ||
Length 184mm | ||
Depth 51mm | ||
Standards/Approvals EN 60947-5-1, EN 60947-4-1 | ||
RoHS Status: Exempt
The Pilz safety gate system with guard locking utilizes a standard actuator and an interlocking principle based on magnetic force. It is equipped with 2 normally open (n/o) and 2 normally closed (n/c) contacts. The system operates with a supply voltage of 24 V AC/DC, with a power consumption of 4.4 VA when using AC power and 4.4 W when using DC power. This system provides enhanced safety features for protecting personnel and machinery by ensuring proper locking and monitoring of the safety gate.
CE and CCC approved
Spring loaded terminal
