Schneider Electric Preventa Safety automation Preventa Series Safety Controller, 24 V dc

View this category

Subtotal (1 unit)*

£1,215.02

(exc. VAT)

£1,458.02

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,215.02

*price indicative

RS Stock No.:
537-839
Mfr. Part No.:
XPSMC16Z
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Range

Preventa Safety automation

Series

Preventa

Supply Voltage

24 V dc

IP Rating

IP20

Depth

153mm

Length

151.5mm

Width

74mm

COO (Country of Origin):
FR

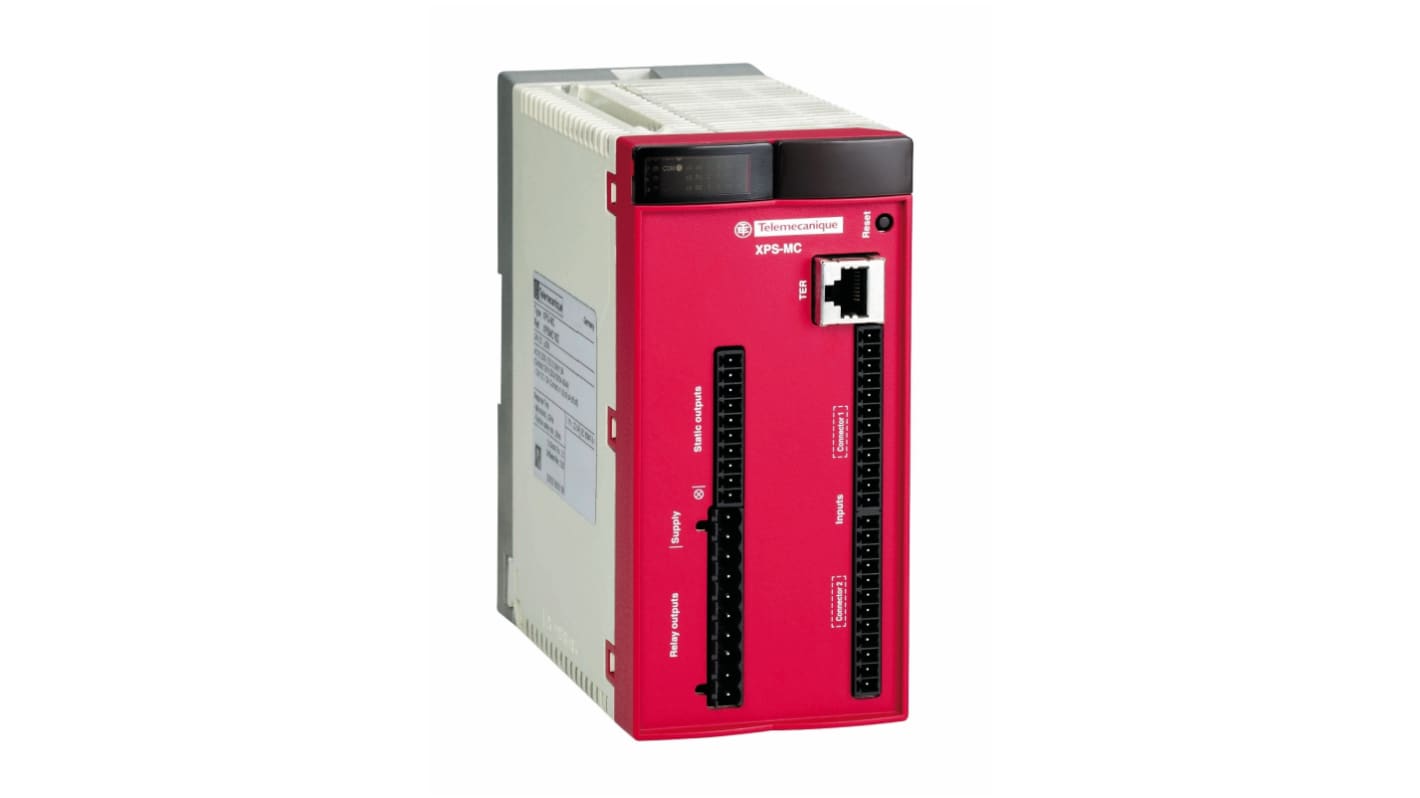

Safety controller XPS-MC - 24 V DC - 16 input - 30 LEDs signalling


This product is part of preventa XPCMC configurable safety controller range. It is a configurable safety controller. It is supplied with 24 V DC. It has 16 safety inputs. It conforms to Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1, PLE safety level conforming to EN/ISO 13849-1 and SIL 3 level conforming to IEC 61508. It embeds 1 RJ45 port for a serial link communication with Modbus protocol. The transmission rate are 1200bps, 2400 bps, 4800bps, 9600bps or 19200bps. This product measures 153mm depth, 151.5mm height, and 74mm width. It weighs 0.82kg. This safety controller is designed for monitoring multiple safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This product is certified by CSA, UL and TÜV. It conforms to EN 954-1/EN/ISO 13849-1, EN/IEC 61496-1, IEC 61508, EN/IEC 60204-1, EN 1760-1/ISO 13856-1, EN 574/ISO 13851 and EN/IEC 60947-5-1 standards. The Safety controller XPSMC is configurable and addressable using software XPSMCWIN running on a PC and using a USB/RJ45 cable type TCSMCNAM3M002P to connect to the safety controller. It installs with a mounting plate for mounting on rail. Preventa XPSMC configurable safety controller is designed to provide a solution for safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508. The configurable safety controller consists of 6 variants with 16 or 32 digital inputs and 8 digital outputs and communication possibilities of Modbus RTL Serial, Profibus DP and CANopen.

Range of product: Preventa Safety automation

Product or component type: Configurable safety controller

Safety module name: XPSMC

Safety use category:
Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1
PLE maximum conforming to ISO 13849-1
SIL 3 maximum conforming to IEC 61508

Type of start: Configurable

Standards:
EN 574/ISO 13851
EN 1760-1/ISO 13856-1
IEC 61496-1
IEC 60204-1
IEC 61508
IEC 60947-5-1
EN 954-1/EN/ISO 13849-1

Product certifications:
TÜV
UL
CSA
