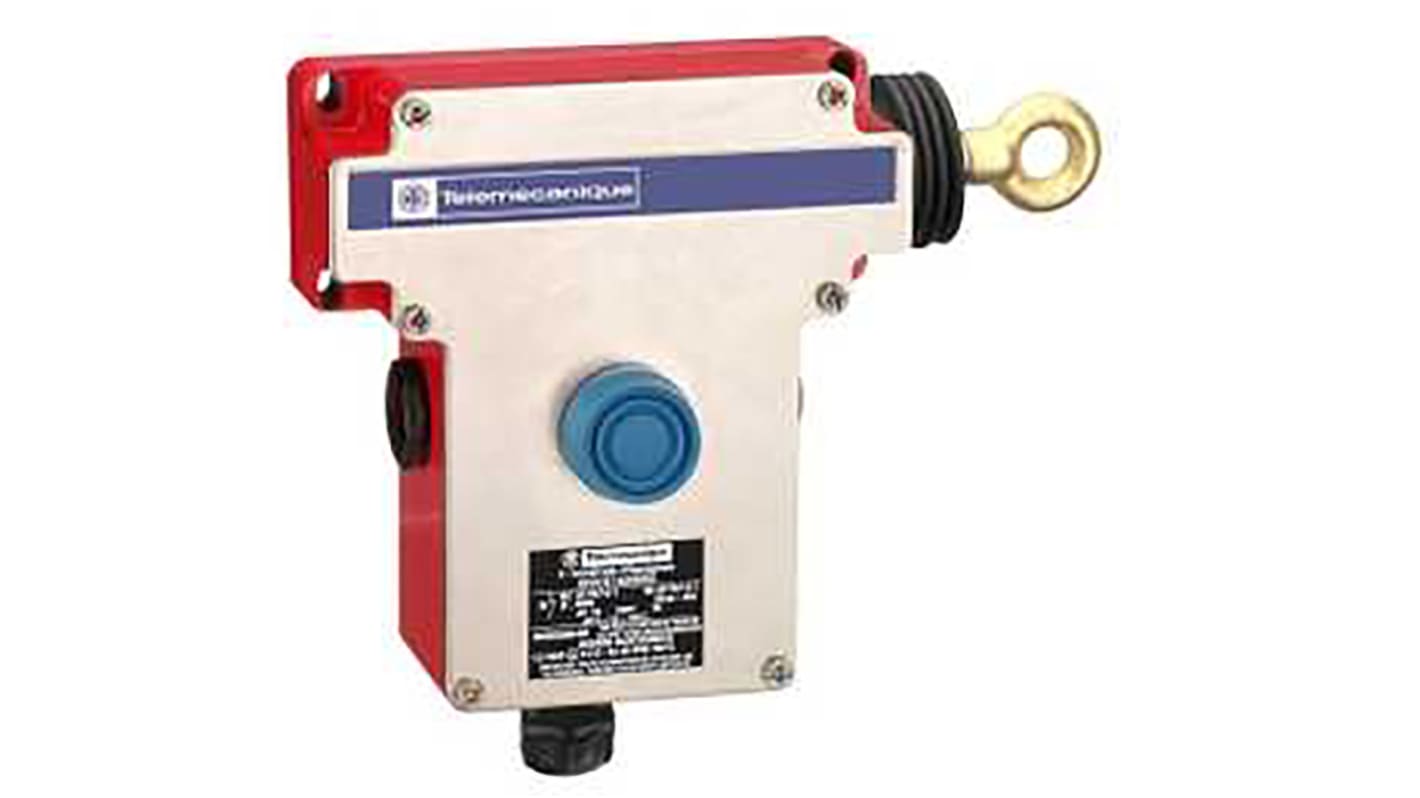

Telemecanique Sensors XY2CE Rope Pull Switch, 70m, 2NC
- RS Stock No.:
- 130-0887
- Mfr. Part No.:
- XY2CE1A270EX
- Brand:
- Telemecanique Sensors
Available to back order for despatch when stock is available
Added
Price Each
£376.80
(exc. VAT)
£452.16
(inc. VAT)
| Units | Per unit |
| 1 + | £376.80 |
- RS Stock No.:
- 130-0887
- Mfr. Part No.:
- XY2CE1A270EX
- Brand:
- Telemecanique Sensors
Technical Reference
Legislation and Compliance
Product Details
Telemecanique XY2CE EX ATEX Emergency Stop Rope Pull Switches
Telemecanique XY2CE EX ATEX emergency stop rope pull switches are designed to reduce the risk of injury to persons and damage either to machines or work in progress. They can be tripped by a single human action when a normal emergency stop function is not available and will also trip in the event of the tripwire breaking.
Features and Benefits
Switches incorporate positive opening operation contacts, the tripping of the switch being made with positive action
The switch latches in the tripped position (N/C safety contact(s) open). The function of the N/O contact is purely for signalling
Incorporates a reset button, which re-closes the safety contact(s), restarting of the machine must only be achieved by manual operation of a control device within the machine start circuit, remote to the trip wire switch
Recommended distance between cable supports is 15m
The switch latches in the tripped position (N/C safety contact(s) open). The function of the N/O contact is purely for signalling
Incorporates a reset button, which re-closes the safety contact(s), restarting of the machine must only be achieved by manual operation of a control device within the machine start circuit, remote to the trip wire switch
Recommended distance between cable supports is 15m
Specifications
Attribute | Value |
|---|---|
| Normal State Configuration | 2NC |
| Cable Length | 70m |
| IP Rating | IP66 |
| Number of Poles | DPST |
| Series | XY2CE |
| Range | Preventa XY2 |
| Length | 229mm |
| Width | 105mm |
| Depth | 142mm |
| Housing Material | Stainless Steel |
| Hazardous Area Certification | ATEX |
| Conduit Entry | M20 |
| Dimensions | 229 x 105 x 142mm |
| Maximum AC Voltage | 240V |
| Standards Met | CCC, CSA, CSA C 22-2, EAC, EN/IEC 60947-5-5, UL (NISD), UL 508 |
| Minimum Operating Temperature | -25°C |
| Maximum DC Voltage | 250V |
| Maximum Operating Temperature | +70°C |
