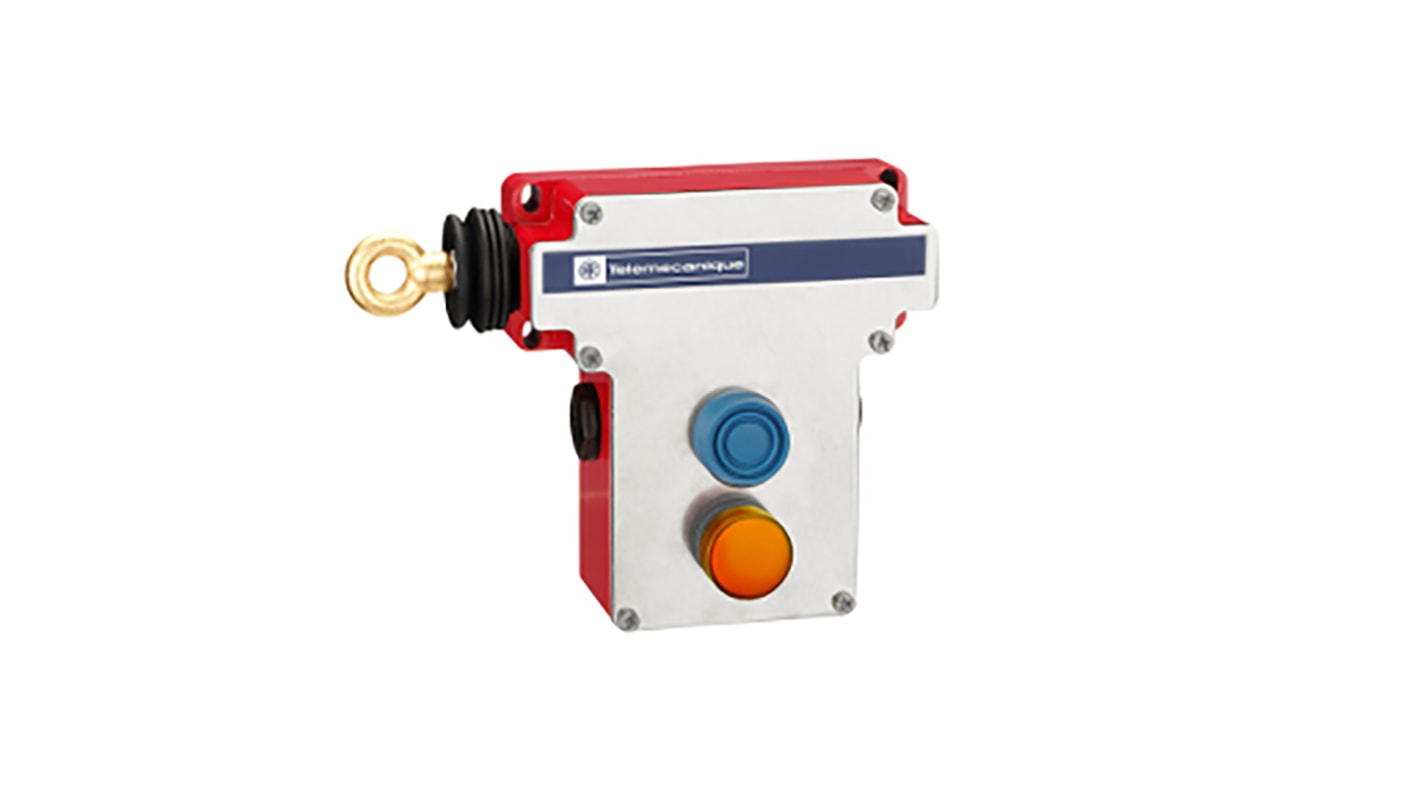

Telemecanique Sensors XY2 Rope Pull Switch, 70m, Left Side
- RS Stock No.:
- 179-9960
- Mfr. Part No.:
- XY2CE2A297
- Brand:
- Telemecanique Sensors
Subtotal (1 unit)*
£413.49
(exc. VAT)
£496.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £413.49 |
*price indicative
- RS Stock No.:
- 179-9960
- Mfr. Part No.:
- XY2CE2A297
- Brand:
- Telemecanique Sensors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Cable Length | 70m | |
| Mounting Orientation | Left Side | |
| IP Rating | IP66 | |
| Number of Poles | 2P | |
| Series | XY2 | |
| Range | Preventa XY2 | |
| Length | 229mm | |
| Width | 105mm | |
| Depth | 142mm | |
| Maximum Operating Temperature | +70°C | |
| Conduit Entry | PG13.5 | |
| Minimum Operating Temperature | -25°C | |
| Maximum Current | 3A | |
| Maximum DC Voltage | 250V | |
| Maximum AC Voltage | 240V | |
| Dimensions | 229 x 105 x 142mm | |
Select all | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Cable Length 70m | ||
Mounting Orientation Left Side | ||
IP Rating IP66 | ||
Number of Poles 2P | ||
Series XY2 | ||
Range Preventa XY2 | ||
Length 229mm | ||
Width 105mm | ||
Depth 142mm | ||
Maximum Operating Temperature +70°C | ||
Conduit Entry PG13.5 | ||
Minimum Operating Temperature -25°C | ||
Maximum Current 3A | ||
Maximum DC Voltage 250V | ||
Maximum AC Voltage 240V | ||
Dimensions 229 x 105 x 142mm | ||
- COO (Country of Origin):
- MA
Telemecanique Sensors Wire Switch
The Telemecanique sensors XY2CE is 240VAC rated voltage wire switch. It has E-stop rope pull switch on left side-2NC+2NO with yellow pilot light, 230V-boot.
Features and Benefits
• Contact operation slow break
• Cover material is stainless steel
• Housing material is Zamak
• Maximum rope span is 70m
• Pole configuration is 2P
• Range of product is preventa XY2
• Left side mounting orientation
• Operating temperature ranges between -25°C and 75°C
• Cover material is stainless steel
• Housing material is Zamak
• Maximum rope span is 70m
• Pole configuration is 2P
• Range of product is preventa XY2
• Left side mounting orientation
• Operating temperature ranges between -25°C and 75°C
Applications
• Emergency stop rope pull switch for the machines requiring stopping of a dangerous movement in the immediate vicinity of the machine
• Emergency switch is used as a safety switch to stop the conveyor belt in case of an emergency
• Rope pull switch for the machines requiring stopping of movement in the immediate vicinity of the machine
• Emergency switch is used as a safety switch to stop the conveyor belt in case of an emergency
• Rope pull switch for the machines requiring stopping of movement in the immediate vicinity of the machine
Certifications
• CCC certified
• CE certified
• CSA C22.2 No 14
• CSA certified
• EN/IEC 60204-1
• EN/IEC 60947-5-1
• EN/IEC 60947-5-5
• EN/ISO 13850
• IP66 rated
• Machinery directive 2006/42/EC
• UL approved
• UL508 approved
• Work equipment directive 2009/104/EC
• CE certified
• CSA C22.2 No 14
• CSA certified
• EN/IEC 60204-1
• EN/IEC 60947-5-1
• EN/IEC 60947-5-5
• EN/ISO 13850
• IP66 rated
• Machinery directive 2006/42/EC
• UL approved
• UL508 approved
• Work equipment directive 2009/104/EC
