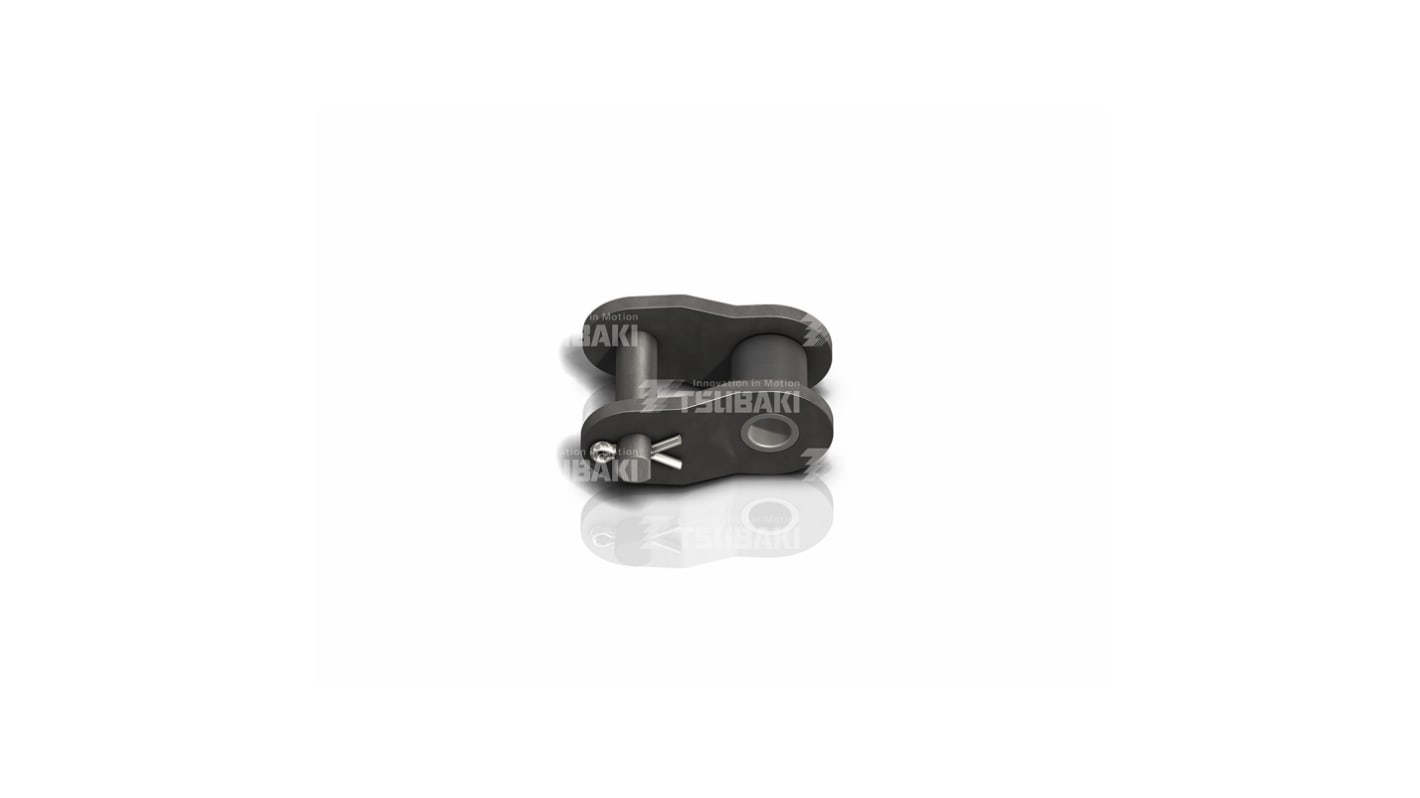

Tsubaki 80-1 Single Offset Link Carbon Steel Offset Link
- RS Stock No.:
- 184-5800
- Mfr. Part No.:
- RS80-1 OL
- Brand:
- Tsubaki
Subtotal (1 bag of 10 units)*
£109.09
(exc. VAT)
£130.91
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £109.09 | £10.909 |
*price indicative
- RS Stock No.:
- 184-5800
- Mfr. Part No.:
- RS80-1 OL
- Brand:
- Tsubaki
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Tsubaki | |
| Chain Type | 80-1 | |
| Product Type | Offset Link | |
| Mechanical Link Type | Single Offset Link | |
| Material | Carbon Steel | |
| Pitch | 25.4mm | |
| Pin Length | 36.6mm | |
| Width Between Roller Link Plates | 15.88mm | |
| Pin Type | Riveted | |
| Standards/Approvals | ANSI G8 | |
| Roller Diameter | 15.88mm | |
| Select all | ||
|---|---|---|
Brand Tsubaki | ||
Chain Type 80-1 | ||
Product Type Offset Link | ||
Mechanical Link Type Single Offset Link | ||
Material Carbon Steel | ||
Pitch 25.4mm | ||
Pin Length 36.6mm | ||
Width Between Roller Link Plates 15.88mm | ||
Pin Type Riveted | ||
Standards/Approvals ANSI G8 | ||
Roller Diameter 15.88mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
The high-precision solid bush and special lube grooves increase the retention of lubricant and doubles the wear life. Tsubaki developed a rust preventative pre-lube that minimizes tackiness. The new G8 Series also has 1.2 times longer wear life than G7.
