SKF 23120-2RS5/VT143B Tapered 100 mm I.D Roller Bearing, 165 mm O.D
- RS Stock No.:
- 209-4071
- Mfr. Part No.:
- 23120-2RS5/VT143B
- Brand:
- SKF
Subtotal (1 unit)*
£562.22
(exc. VAT)
£674.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £562.22 |
*price indicative
- RS Stock No.:
- 209-4071
- Mfr. Part No.:
- 23120-2RS5/VT143B
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 100 mm | |
| Race Width | 62mm | |
| Bore Type | Tapered | |
| Standards/Approvals | No | |
| Static Load Rating | 490kN | |
| Number of Rows | 2 | |
| Outside Diameter | 165 mm | |
| Limiting Speed | 1700rpm | |
| End Type | Closed | |
| Dynamic Load Rating | 386kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 100 mm | ||
Race Width 62mm | ||
Bore Type Tapered | ||
Standards/Approvals No | ||
Static Load Rating 490kN | ||
Number of Rows 2 | ||
Outside Diameter 165 mm | ||
Limiting Speed 1700rpm | ||
End Type Closed | ||
Dynamic Load Rating 386kN | ||
- COO (Country of Origin):
- GB

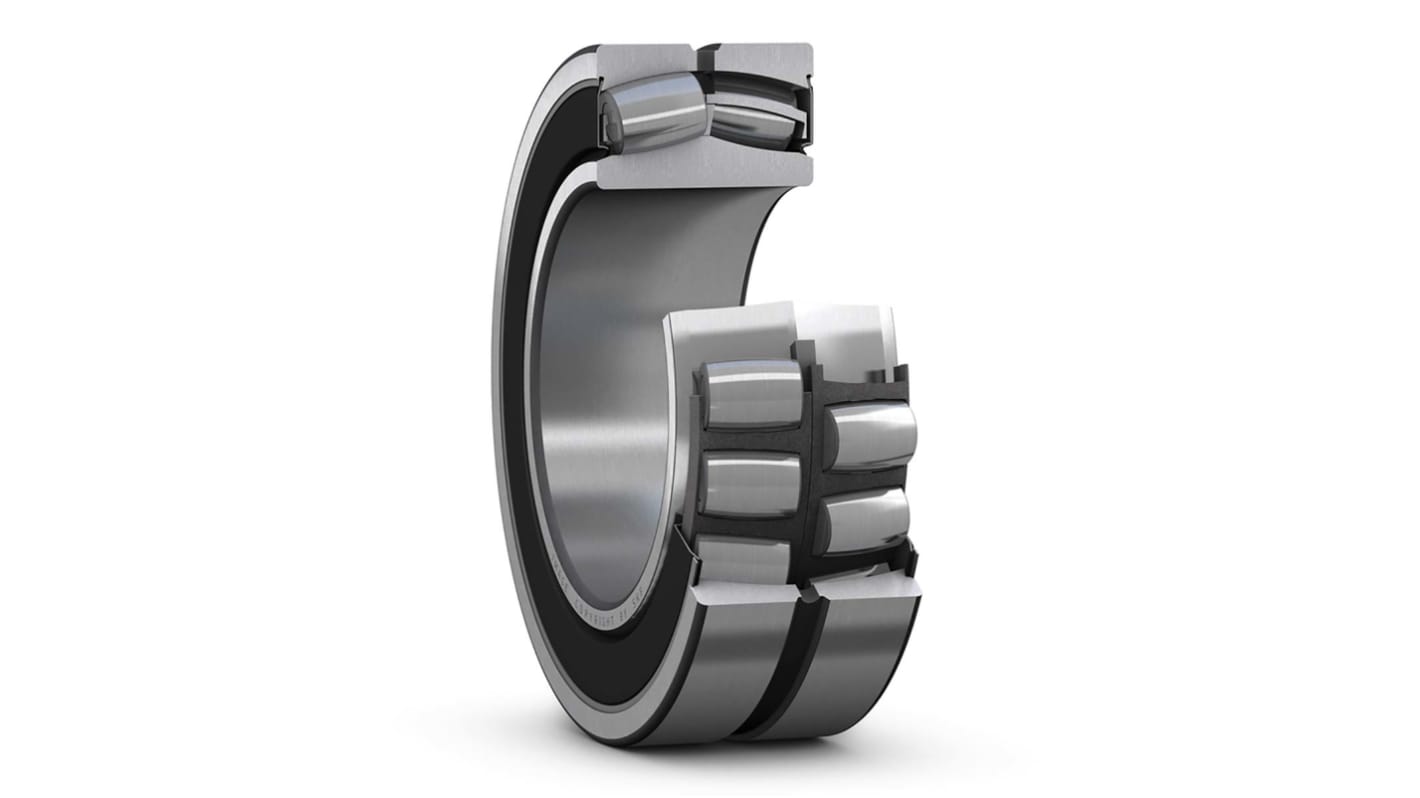

The SKF Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis . The centre point of the sphere in the outer ring raceway is at the bearing axis. Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections can be a real challenge. Meet the challenge with SKF spherical roller bearings. Their high load carrying capacity and ability to accommodate misalignment helps you obtain low maintenance costs and long bearing service life. It offer a wide range of robust spherical roller bearings in both open and sealed variants. Here are examples of applications in which spherical roller bearings might be used:
Renewable energy, Mining, mineral processing and cement, Material handling, Pulp & Paper, Industrial transmission, Metals, and Marine.
Accommodate misalignment
High load carrying capacity
Long service life
Low friction
Robust
