SKF 23120 CCK/W33 Tapered 100 mm ID Roller Bearing, 165 mm OD
- RS Stock No.:
- 207-8581
- Mfr. Part No.:
- 23120 CCK/W33
- Brand:
- SKF
Subtotal (1 unit)*
£454.29
(exc. VAT)
£545.15
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £454.29 |
*price indicative
- RS Stock No.:
- 207-8581
- Mfr. Part No.:
- 23120 CCK/W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 100mm | |
| Race Width | 52mm | |
| Bore Type | Tapered | |
| Roller Material | Steel | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Internal Clearance | C3 | |
| Static Load Rating | 490kN | |
| Series | SRB | |
| Limiting Speed | 4500rpm | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 385kN | |
| Outside Diameter | 165mm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 100mm | ||
Race Width 52mm | ||
Bore Type Tapered | ||
Roller Material Steel | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
Internal Clearance C3 | ||
Static Load Rating 490kN | ||
Series SRB | ||
Limiting Speed 4500rpm | ||
Standards/Approvals No | ||
Dynamic Load Rating 385kN | ||
Outside Diameter 165mm | ||
- COO (Country of Origin):
- GB

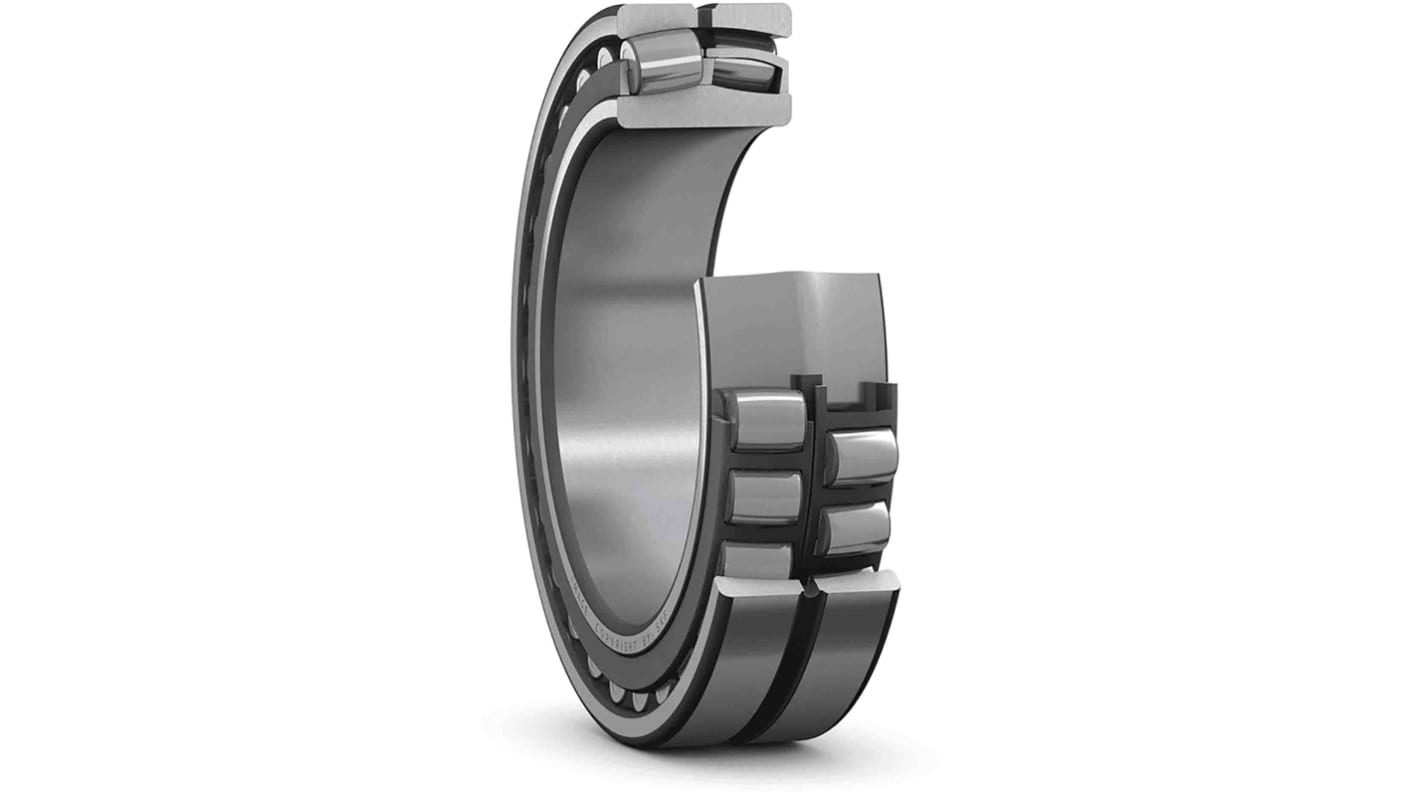

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 100 mm ID and 165 mm OD.
Bearing is of bearing steel
Tapered 1:12 bore type
