SKF 23120 CC/C3W33 Tappered 100 mm ID Roller Bearing, 165 mm OD
- RS Stock No.:
- 207-8578
- Mfr. Part No.:
- 23120 CC/C3W33
- Brand:
- SKF
Subtotal (1 unit)*
£454.29
(exc. VAT)
£545.15
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £454.29 |
*price indicative
- RS Stock No.:
- 207-8578
- Mfr. Part No.:
- 23120 CC/C3W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 100mm | |
| Race Width | 52mm | |
| Bore Type | Tappered | |
| Roller Material | Steel | |
| Limiting Speed | 4000rpm | |
| Series | 23120 CC/W33 | |
| Dynamic Load Rating | 385kN | |
| Standards/Approvals | No | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 490kN | |
| Outside Diameter | 165mm | |
| Internal Clearance | C3 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 100mm | ||
Race Width 52mm | ||
Bore Type Tappered | ||
Roller Material Steel | ||
Limiting Speed 4000rpm | ||
Series 23120 CC/W33 | ||
Dynamic Load Rating 385kN | ||
Standards/Approvals No | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 490kN | ||
Outside Diameter 165mm | ||
Internal Clearance C3 | ||
- COO (Country of Origin):
- GB

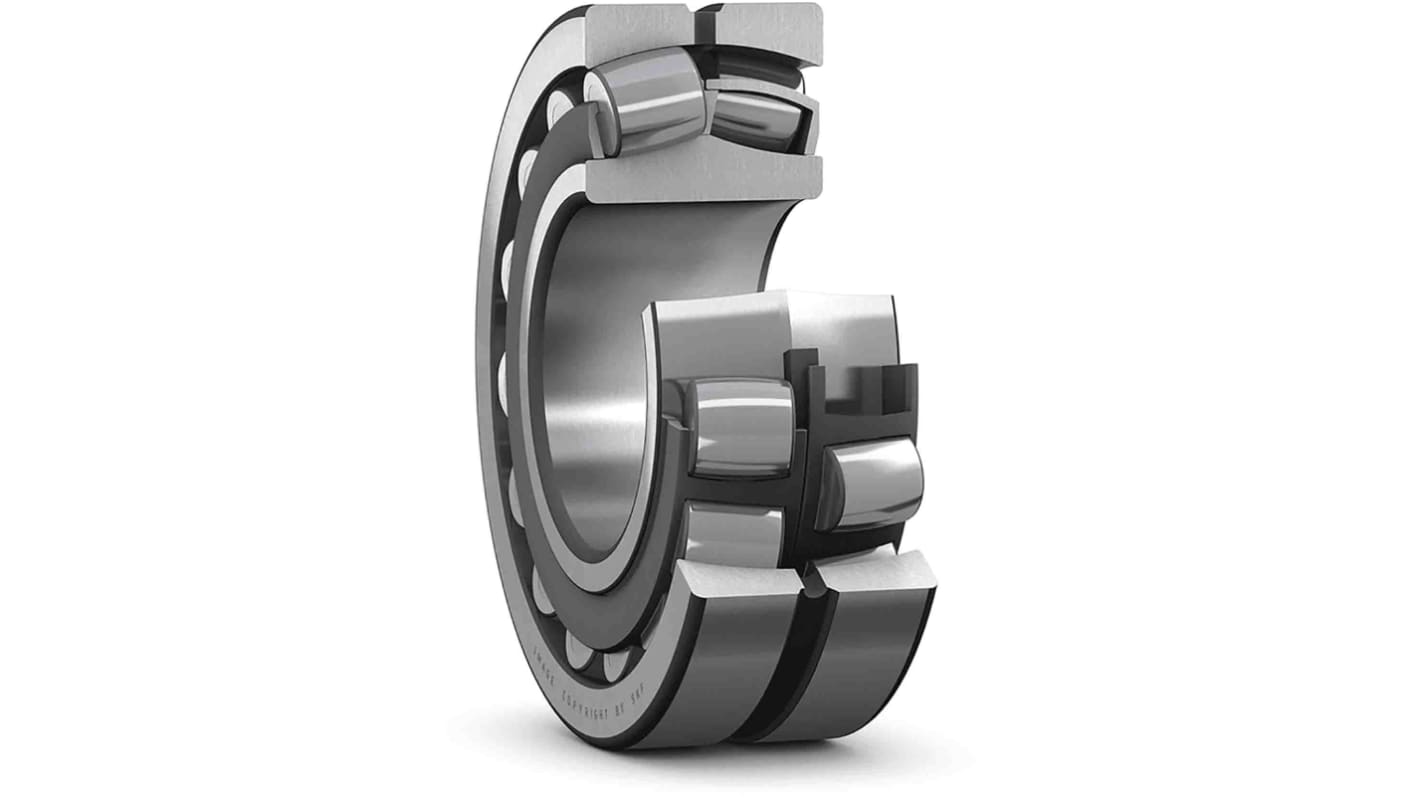

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 100 mm ID and 165 mm OD.
Bearing is of bearing steel
Cylindrical bore type
