SKF 23034 CC/C3W33 Tappered 170 mm ID Roller Bearing, 260 mm OD
- RS Stock No.:
- 207-8574
- Mfr. Part No.:
- 23034 CC/C3W33
- Brand:
- SKF
Subtotal (1 unit)*
£1,278.19
(exc. VAT)
£1,533.83
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,278.19 |
*price indicative
- RS Stock No.:
- 207-8574
- Mfr. Part No.:
- 23034 CC/C3W33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 170mm | |
| Race Width | 67mm | |
| Bore Type | Tappered | |
| Roller Material | Steel | |
| Outside Diameter | 260mm | |
| Dynamic Load Rating | 745kN | |
| Standards/Approvals | No | |
| Series | 23034 CC/W33 | |
| Limiting Speed | 2800rpm | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 1060kN | |
| Internal Clearance | C3 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 170mm | ||
Race Width 67mm | ||
Bore Type Tappered | ||
Roller Material Steel | ||
Outside Diameter 260mm | ||
Dynamic Load Rating 745kN | ||
Standards/Approvals No | ||
Series 23034 CC/W33 | ||
Limiting Speed 2800rpm | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 1060kN | ||
Internal Clearance C3 | ||
- COO (Country of Origin):
- SE

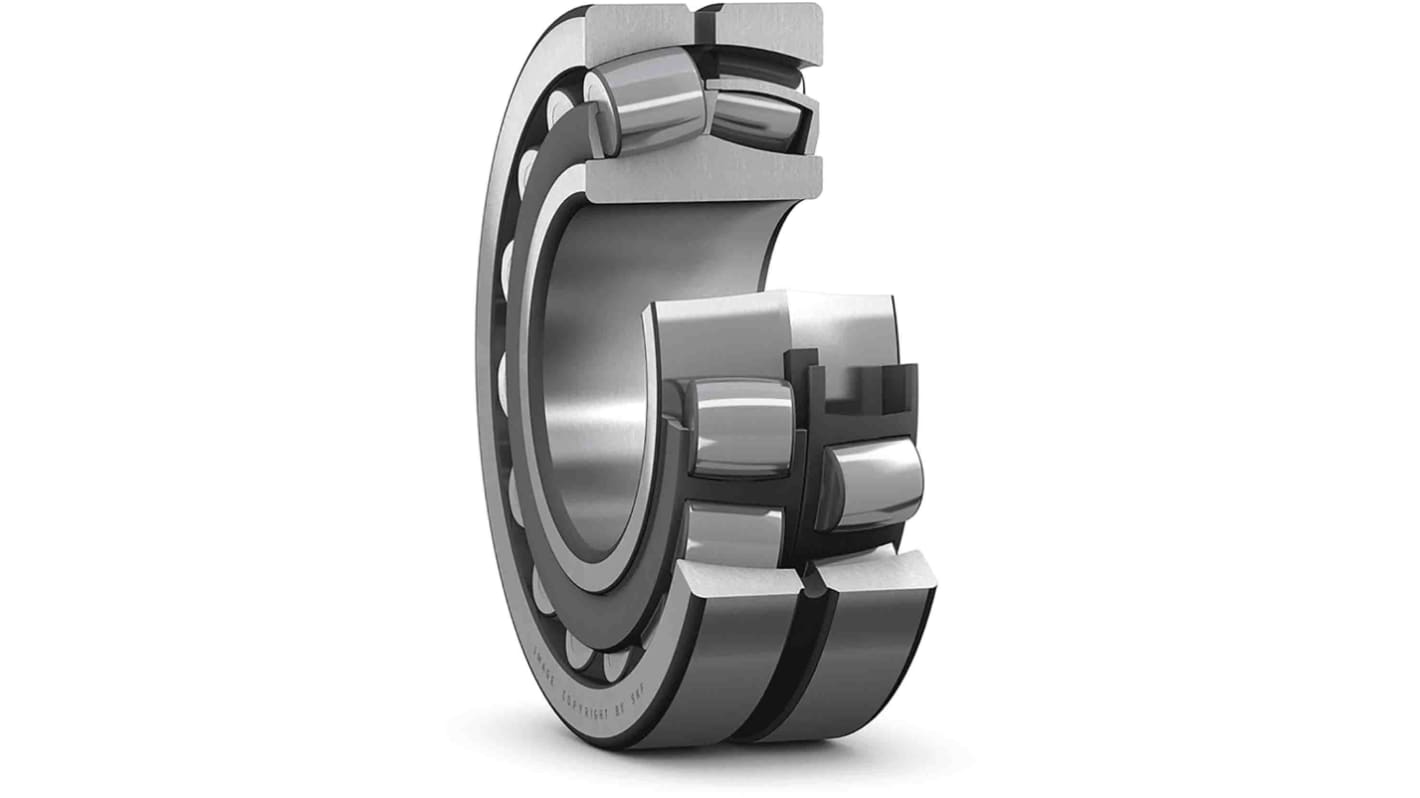

The SKF spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. It has 170 mm ID and 260 mm OD.
Bearing is of bearing steel
Cylindrical bore type
