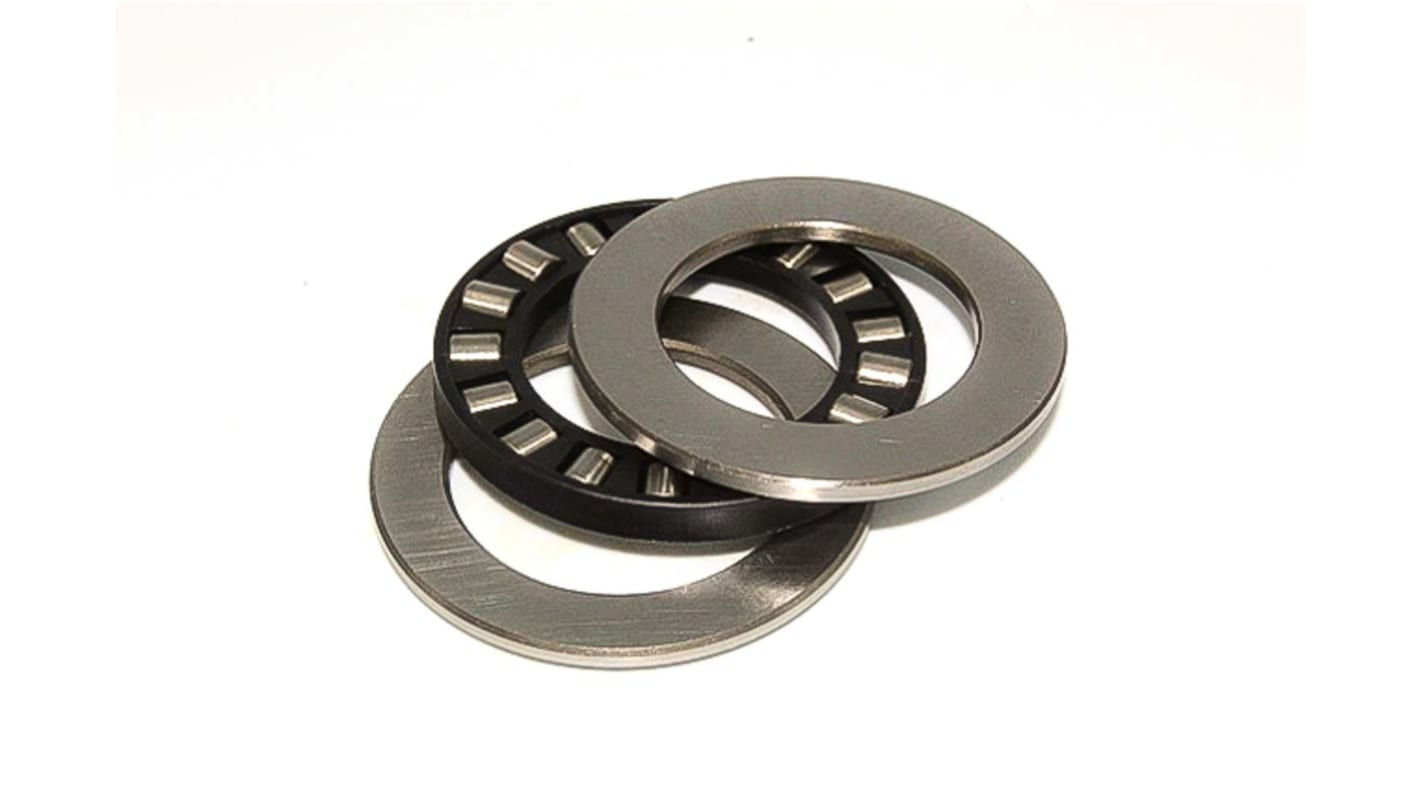

INA 81208-TV 40mm I.D Cylindrical Roller Bearing, 68mm O.D
- RS Stock No.:
- 194-6832
- Mfr. Part No.:
- 81208-TV
- Brand:
- INA
Save 9% when you buy 25 units
Subtotal (1 unit)*
£82.72
(exc. VAT)
£99.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £82.72 |
5 - 9 | £77.84 |
10 - 24 | £76.18 |
25 + | £74.61 |
*price indicative
- RS Stock No.:
- 194-6832
- Mfr. Part No.:
- 81208-TV
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Inside Diameter | 40mm | |
Outside Diameter | 68mm | |
Roller Bearing Type | Cylindrical | |
Race Width | 19mm | |
Bore Type | Parallel | |
Static Load Rating | 265000N | |
Number of Rows | 1 | |
Dynamic Load Rating | 107000N | |
End Type | Open | |
Fatigue Limit Load | 23700N | |
Select all | ||
---|---|---|
Brand INA | ||
Inside Diameter 40mm | ||
Outside Diameter 68mm | ||
Roller Bearing Type Cylindrical | ||
Race Width 19mm | ||
Bore Type Parallel | ||
Static Load Rating 265000N | ||
Number of Rows 1 | ||
Dynamic Load Rating 107000N | ||
End Type Open | ||
Fatigue Limit Load 23700N | ||
Single and double row axial cylindrical roller bearings are particularly suitable where:
High axial and shock loads occur in one direction but no radial loads are present
The load carrying capacity of the corresponding axial deep groove ball bearings is no longer adequate (in this case, bearings of series 811 and 812 are especially suitable)
The bearing arrangement must have very high axial rigidity
The axial space available is very small
The bearing arrangement can be configured, where the axial space is very small, as a direct bearing arrangement
The bearing parts can or must be mounted separately
The bearing arrangement is not configured in itself but, for cost reasons, ready-to-fit standard bearings are to be used
High axial and shock loads occur in one direction but no radial loads are present
The load carrying capacity of the corresponding axial deep groove ball bearings is no longer adequate (in this case, bearings of series 811 and 812 are especially suitable)
The bearing arrangement must have very high axial rigidity
The axial space available is very small
The bearing arrangement can be configured, where the axial space is very small, as a direct bearing arrangement
The bearing parts can or must be mounted separately
The bearing arrangement is not configured in itself but, for cost reasons, ready-to-fit standard bearings are to be used
