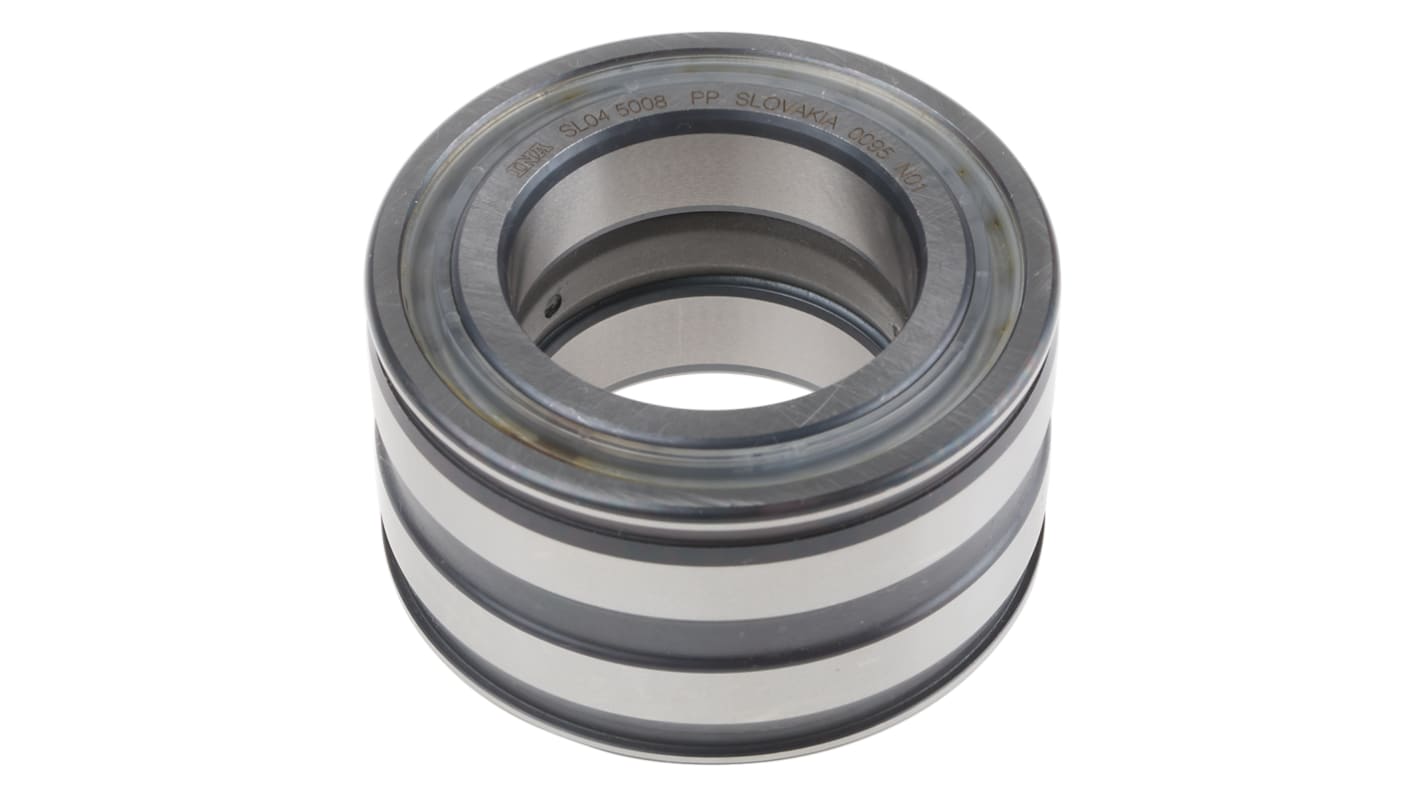

INA SL045008-PP 40mm I.D Cylindrical Roller Bearing, 68mm O.D
- RS Stock No.:
- 137-1776
- Mfr. Part No.:
- SL045008-PP
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£151.47
(exc. VAT)
£181.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £151.47 |
5 - 9 | £145.42 |
10 + | £142.38 |
*price indicative
- RS Stock No.:
- 137-1776
- Mfr. Part No.:
- SL045008-PP
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Inside Diameter | 40mm | |
Outside Diameter | 68mm | |
Roller Bearing Type | Cylindrical | |
Race Width | 38mm | |
Bore Type | Parallel | |
Material | Steel | |
Static Load Rating | 111000N | |
Number of Rows | 2 | |
Dynamic Load Rating | 80000N | |
End Type | Sealed | |
Limiting Speed | 3150rpm | |
Fatigue Limit Load | 16000N | |
Maximum Speed - Grease | 3150rpm | |
Select all | ||
---|---|---|
Brand INA | ||
Inside Diameter 40mm | ||
Outside Diameter 68mm | ||
Roller Bearing Type Cylindrical | ||
Race Width 38mm | ||
Bore Type Parallel | ||
Material Steel | ||
Static Load Rating 111000N | ||
Number of Rows 2 | ||
Dynamic Load Rating 80000N | ||
End Type Sealed | ||
Limiting Speed 3150rpm | ||
Fatigue Limit Load 16000N | ||
Maximum Speed - Grease 3150rpm | ||
Double Row Full Complement Cylindrical Roller Bearings
INA from Schaeffler bearings have solid outer and inner rings and rib-guided cylindrical rollers. Since these bearings have the largest possible number of rolling elements, they have high radial load carrying capacity, high rigidity and are suitable for compact designs. Due to the kinematic conditions, however, they do not achieve the high speeds that are possible when using cylindrical roller bearings with cage.
Cable sheave bearings (cylindrical roller bearings with snap ring grooves) are locating bearings. These bearings are rigid and can support moderate axial forces in both directions and high radial forces. They consist of solid outer and inner rings with ribs, rib-guided cylindrical rollers and sealing rings.
The outer rings have snap ring grooves for retaining rings. The inner rings are axially split, 1 mm wider than the outer rings and held together by a rolled-in steel strip.
Features and Benefits
Lower operating costs
Reduced maintenance due to improved lubrication
Lower heat generation
Less noise
Product Application Information
The bearings have higher load carrying capacity and longer life for the same dimensioning. In certain applications, a smaller bearing arrangement can be designed.
Suffixes
PP - Seals on both sides, for cable sheave bearings
Schaeffler Roller Bearing, 40mm Inside Diameter, 68mm Outside Diameter - SL045008-PP
This roller bearing is a high-performance component specifically designed to endure heavy loads and facilitate smooth motion. Featuring a cylindrical shape, it boasts an inside diameter of 40mm and an outside diameter of 68mm. Constructed from robust steel, this sealed roller bearing is capable of withstanding the rigours of various demanding applications while maintaining operational efficiency.
Features & Benefits
• Dual-row configuration enhances load distribution and stability
• High static load rating of 111,000N ensures durability
• Dynamic load rating of 80,000N supports challenging requirements
• Limiting speed of 3,150 rpm allows for efficient performance
• Sealed design protects against contamination and wear
• High load capacity ensures reliability in heavy-duty tasks
• High static load rating of 111,000N ensures durability
• Dynamic load rating of 80,000N supports challenging requirements
• Limiting speed of 3,150 rpm allows for efficient performance
• Sealed design protects against contamination and wear
• High load capacity ensures reliability in heavy-duty tasks
Applications
• Used for machinery requiring robust load support
• Ideal for automation systems for smooth operation
• Suitable for electronic devices to reduce friction
• Recommended for mechanical assemblies for consistent performance
• Ideal for automation systems for smooth operation
• Suitable for electronic devices to reduce friction
• Recommended for mechanical assemblies for consistent performance
How does the sealing feature enhance the lifespan of this component?
The sealed design prevents the ingress of dirt and moisture, significantly reducing wear and tear while ensuring optimal operation in harsh environments.
What lubrication methods are recommended to maintain this bearing's performance?
Regular greasing is suggested, as this bearing can achieve a maximum speed of 3,150 rpm when properly lubricated, ensuring longevity and efficiency in its application.
In what situations would double row cylindrical bearings be advantageous?
Double row configurations offer superior stability and load capacity, making them ideal for applications with high axial and radial load requirements.
What factors contribute to operational efficiency in this roller bearing?
The combination of its high load capacity, appropriate sealing, and construction material facilitates efficient performance in diverse applications while minimising maintenance needs.
