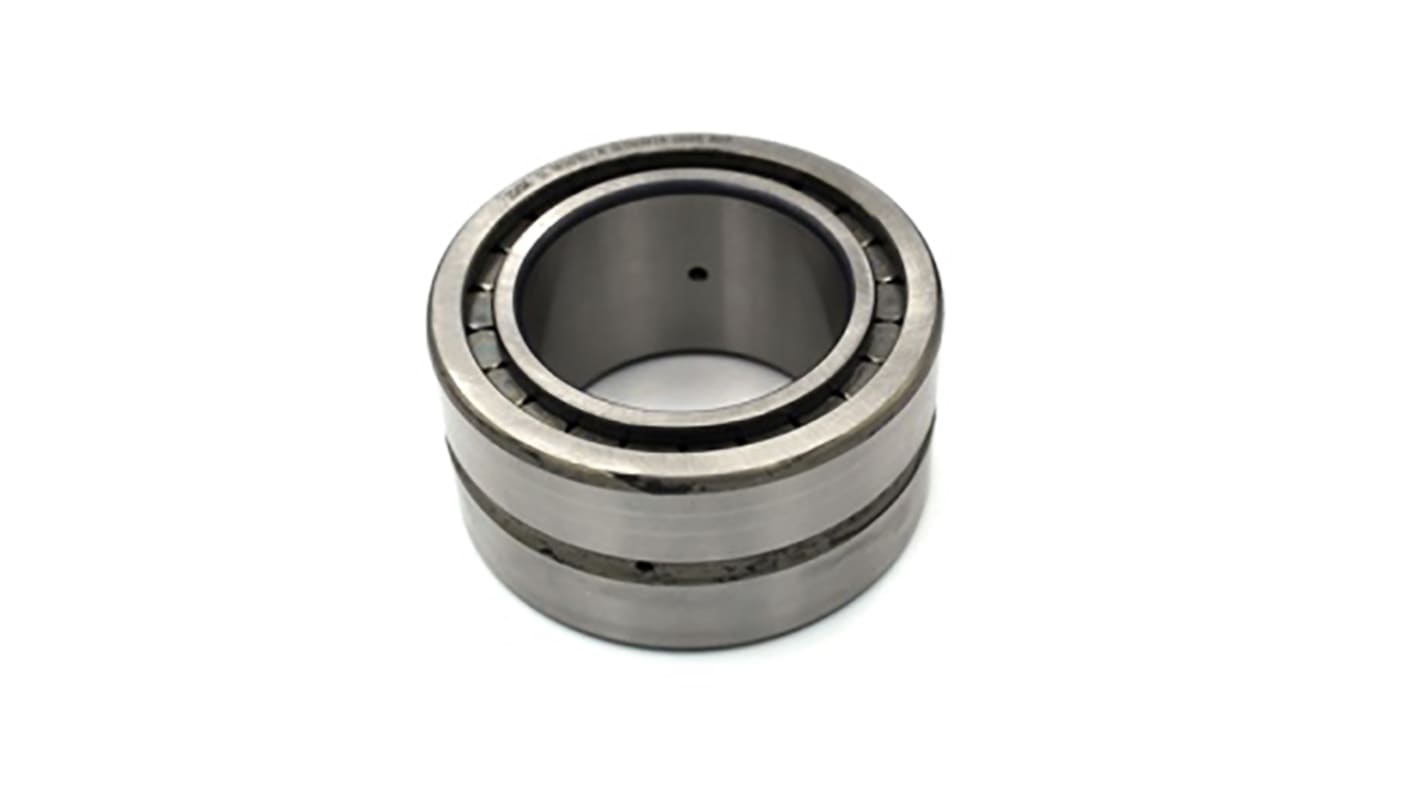

INA SL185008-A 40 mm ID Roller Bearing, 68 mm OD
- RS Stock No.:
- 191-4494
- Mfr. Part No.:
- SL185008-A
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£185.95
(exc. VAT)
£223.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £185.95 |
| 5 - 9 | £178.51 |
| 10 + | £174.79 |
*price indicative
- RS Stock No.:
- 191-4494
- Mfr. Part No.:
- SL185008-A
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 40mm | |
| Race Width | 38mm | |
| Bore Type | Parallel | |
| Dynamic Load Rating | 113kN | |
| End Type | Open | |
| Standards/Approvals | No | |
| Static Load Rating | 133kN | |
| Outside Diameter | 68mm | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 40mm | ||
Race Width 38mm | ||
Bore Type Parallel | ||
Dynamic Load Rating 113kN | ||
End Type Open | ||
Standards/Approvals No | ||
Static Load Rating 133kN | ||
Outside Diameter 68mm | ||
Bearing arrangements are subjected to particularly high radial loads
Not only very high radial forces but also high axial loads from one direction must be supported by the bearing position (semi‑locating bearing function)
Bearing arrangements operating under the conditions described above must have very high rigidity
Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing
Very high radial loads occur at lower speeds, i.e. the bearings do not need to achieve speeds as high as those of cylindrical roller bearings with cage and particularly space-saving designs are required despite very high load
The bearings should be separable (not self-retaining) for easier mounting
