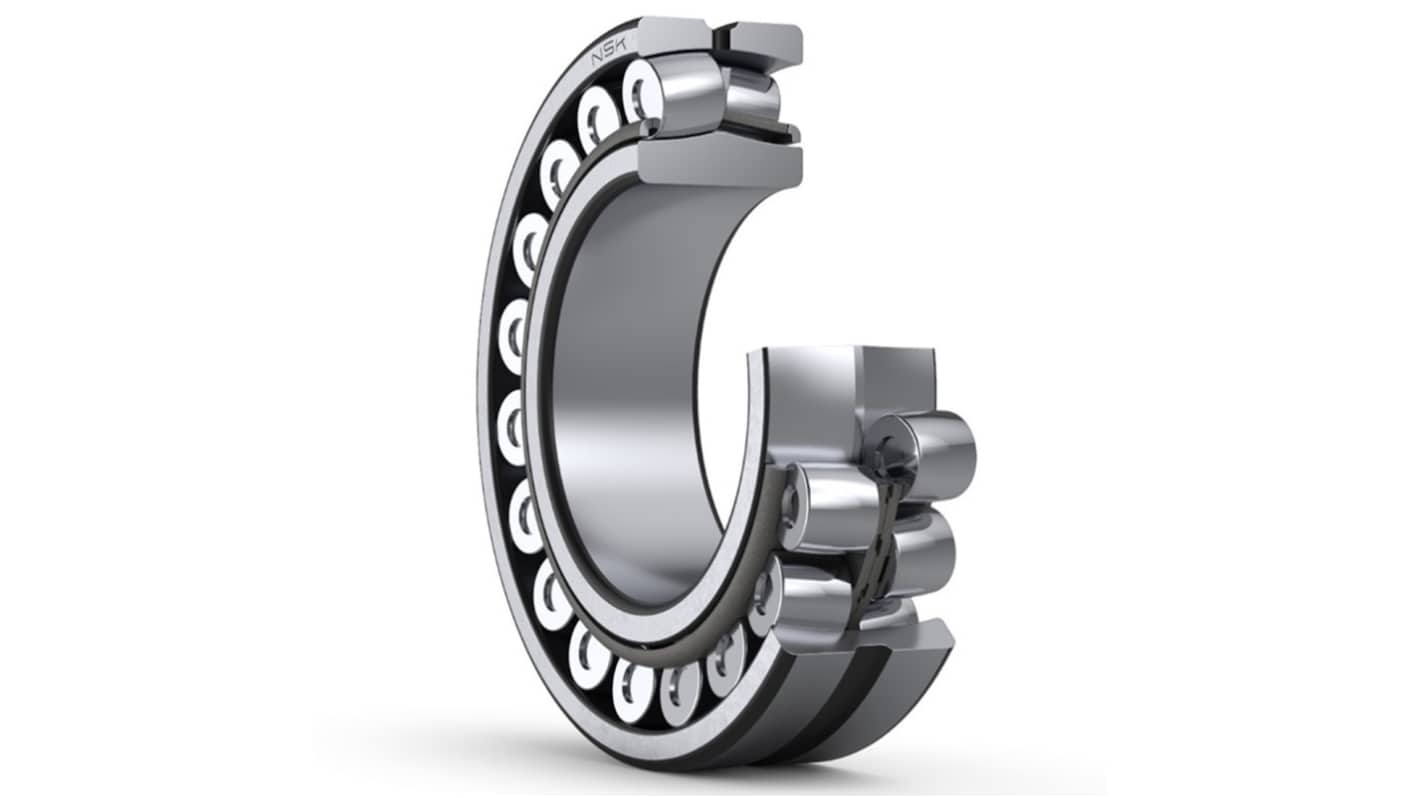

NSK 22210EAKE4C3 Straight 50 mm ID Spherical Roller Bearing, 90 mm OD
- RS Stock No.:
- 643-949
- Mfr. Part No.:
- 22210EAKE4C3
- Brand:
- NSK
Subtotal (1 unit)*
£85.19
(exc. VAT)
£102.23
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £85.19 |
*price indicative
- RS Stock No.:
- 643-949
- Mfr. Part No.:
- 22210EAKE4C3
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 50mm | |
| Race Width | 23mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Dynamic Load Rating | 124000N | |
| Outside Diameter | 90mm | |
| Number of Rows | 2 | |
| Static Load Rating | 119000N | |
| Internal Clearance | C3 | |
| Bearing Material | Steel | |
| Series | 222 | |
| Maximum Speed - Oil | 7100rpm | |
| Standards/Approvals | ISO 15312 | |
| End Type | Open | |
| Maximum Speed - Grease | 5600rpm | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 50mm | ||
Race Width 23mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Dynamic Load Rating 124000N | ||
Outside Diameter 90mm | ||
Number of Rows 2 | ||
Static Load Rating 119000N | ||
Internal Clearance C3 | ||
Bearing Material Steel | ||
Series 222 | ||
Maximum Speed - Oil 7100rpm | ||
Standards/Approvals ISO 15312 | ||
End Type Open | ||
Maximum Speed - Grease 5600rpm | ||
Non Compliant
- COO (Country of Origin):
- JP
The NSK Spherical roller bearing with a 50 mm bore, 90 mm outer diameter, and 23 mm width, designed for high radial loads and moderate axial loads in compact industrial assemblies. Its steel cage and open design enable efficient lubrication through grooves and holes, while the C3 clearance accommodates thermal expansion and shaft misalignment. It ensures reliable operation across grease, oil-bath, and forced oil circulation systems.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
