NSK 22210EAE4C3 Straight 50 mm ID Spherical Roller Bearing, 90 mm OD
- RS Stock No.:
- 643-947
- Mfr. Part No.:
- 22210EAE4C3
- Brand:
- NSK
Subtotal (1 unit)*
£82.70
(exc. VAT)
£99.24
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £82.70 |
*price indicative
- RS Stock No.:
- 643-947
- Mfr. Part No.:
- 22210EAE4C3
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 50mm | |
| Race Width | 23mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Number of Rows | 2 | |
| Bearing Material | Steel | |
| Static Load Rating | 119000N | |
| Internal Clearance | C3 | |
| Outside Diameter | 90mm | |
| Maximum Speed - Grease | 5600rpm | |
| End Type | Open | |
| Standards/Approvals | ISO 15312 | |
| Series | 222 | |
| Maximum Speed - Oil | 7100rpm | |
| Dynamic Load Rating | 124000N | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 50mm | ||
Race Width 23mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Number of Rows 2 | ||
Bearing Material Steel | ||
Static Load Rating 119000N | ||
Internal Clearance C3 | ||
Outside Diameter 90mm | ||
Maximum Speed - Grease 5600rpm | ||
End Type Open | ||
Standards/Approvals ISO 15312 | ||
Series 222 | ||
Maximum Speed - Oil 7100rpm | ||
Dynamic Load Rating 124000N | ||
Non Compliant
- COO (Country of Origin):
- JP

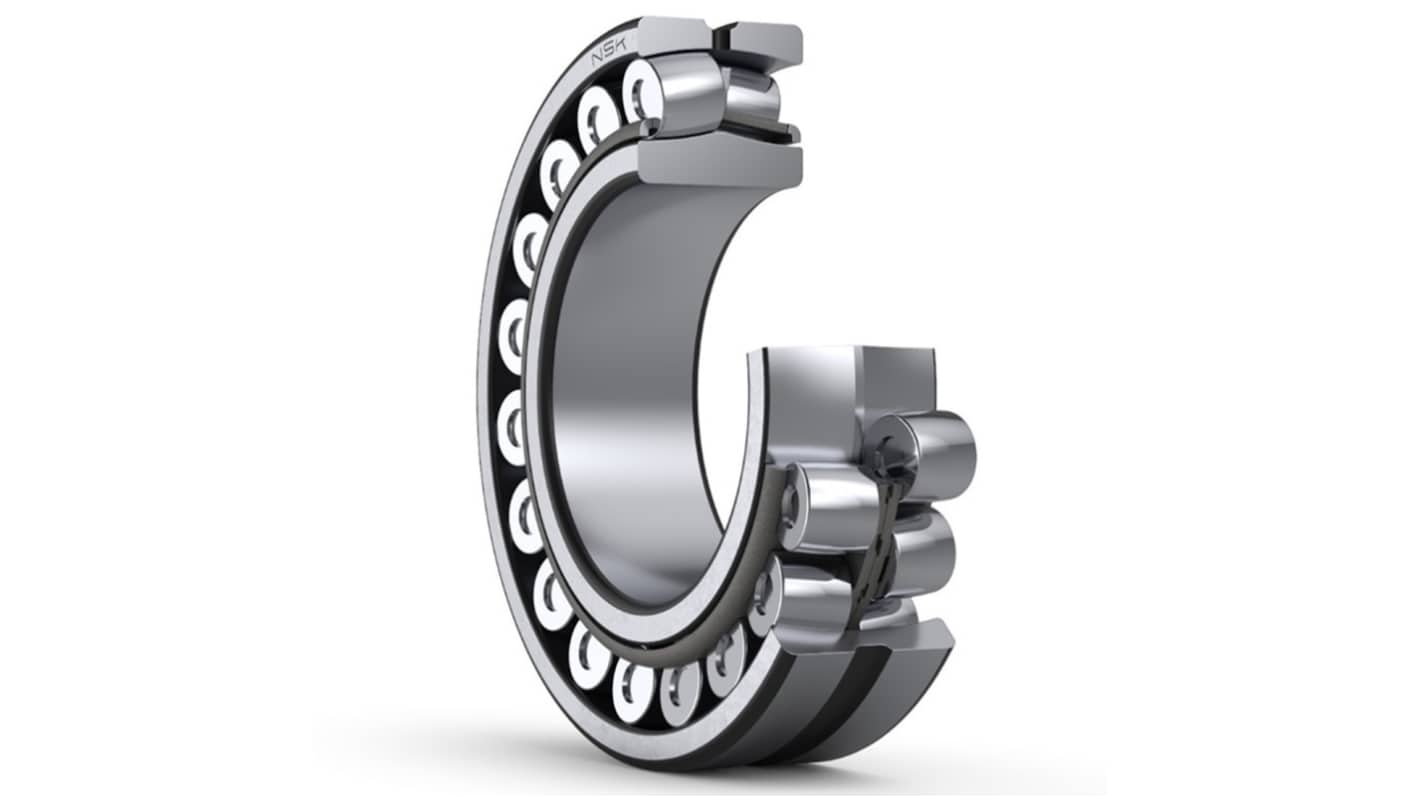

The NSK Spherical roller bearing with a cylindrical 50 mm bore, 90 mm outer diameter, and 23 mm width, built for high radial loads and moderate axial loads in compact industrial setups. Its steel cage and open design enable efficient lubrication via grooves and holes, while the C3 clearance supports thermal expansion and shaft misalignment. It ensures stable performance across grease, oil-bath, and forced oil circulation systems.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
