NSK 22308EAE4 Straight 40 mm ID Spherical Roller Bearing, 90 mm OD
- RS Stock No.:
- 643-746
- Mfr. Part No.:
- 22308EAE4
- Brand:
- NSK
Subtotal (1 unit)*
£88.93
(exc. VAT)
£106.72
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £88.93 |
*price indicative
- RS Stock No.:
- 643-746
- Mfr. Part No.:
- 22308EAE4
- Brand:
- NSK
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 40mm | |
| Race Width | 33mm | |
| Bore Type | Straight | |
| Cage Material | Steel | |
| Bearing Material | Steel | |
| Number of Rows | 2 | |
| Static Load Rating | 153000N | |
| Internal Clearance | C0 | |
| Outside Diameter | 90mm | |
| Maximum Speed - Grease | 5300rpm | |
| Maximum Speed - Oil | 6700rpm | |
| Series | 223 | |
| Standards/Approvals | ISO 15312 | |
| Dynamic Load Rating | 170000N | |
| End Type | Open | |
| Select all | ||
|---|---|---|
Brand NSK | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 40mm | ||
Race Width 33mm | ||
Bore Type Straight | ||
Cage Material Steel | ||
Bearing Material Steel | ||
Number of Rows 2 | ||
Static Load Rating 153000N | ||
Internal Clearance C0 | ||
Outside Diameter 90mm | ||
Maximum Speed - Grease 5300rpm | ||
Maximum Speed - Oil 6700rpm | ||
Series 223 | ||
Standards/Approvals ISO 15312 | ||
Dynamic Load Rating 170000N | ||
End Type Open | ||
Non Compliant
- COO (Country of Origin):
- JP

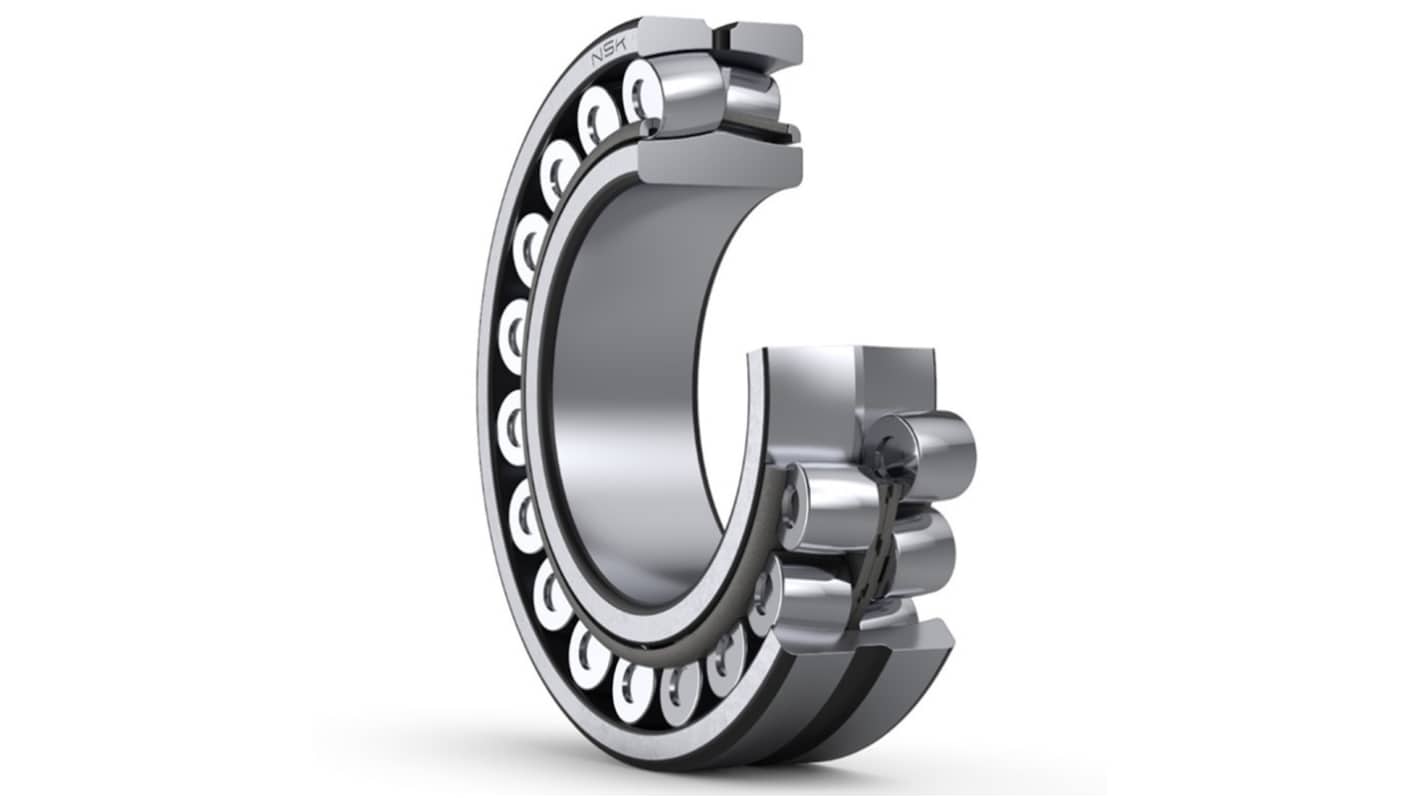

The NSK Spherical roller bearing with a 40 mm bore, 90 mm outer diameter, and 33 mm width, designed to support high radial loads and moderate axial loads in compact industrial systems. Its steel cage and open design feature lubrication grooves and holes for efficient grease or oil circulation. With standard internal clearance and double-row roller geometry, it ensures stable performance under misalignment and demanding operating conditions.
ISO 15312 compliant
Supports dynamic and static load
Easy maintenance with lubrication access
