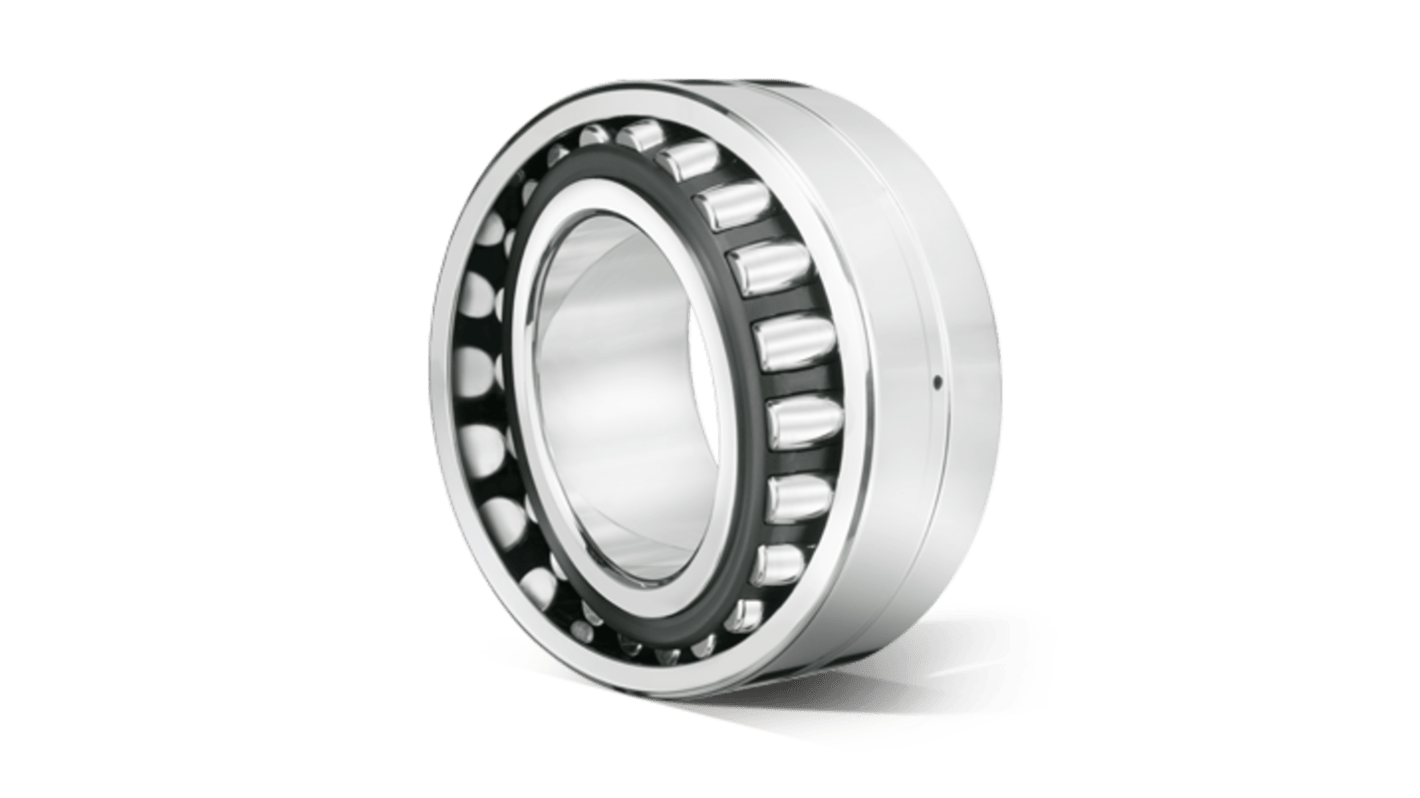

NTN 22309EAKW33C3 Tapered 45 mm ID Spherical Roller Bearing, 100 mm OD
- RS Stock No.:
- 640-272
- Mfr. Part No.:
- 22309EAKW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£110.34
(exc. VAT)
£132.41
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £110.34 |
*price indicative
- RS Stock No.:
- 640-272
- Mfr. Part No.:
- 22309EAKW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 45mm | |
| Race Width | 36mm | |
| Bore Type | Tapered | |
| Cage Material | Steel | |
| Limiting Speed | 6700rpm | |
| Maximum Speed - Grease | 4600rpm | |
| Series | 223 | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 206kN | |
| Outside Diameter | 100mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 187kN | |
| Number of Rows | 2 | |
| Bearing Material | Through Hardened Steel | |
| Maximum Speed - Oil | 5700rpm | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 45mm | ||
Race Width 36mm | ||
Bore Type Tapered | ||
Cage Material Steel | ||
Limiting Speed 6700rpm | ||
Maximum Speed - Grease 4600rpm | ||
Series 223 | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 206kN | ||
Outside Diameter 100mm | ||
Internal Clearance C3 | ||
Static Load Rating 187kN | ||
Number of Rows 2 | ||
Bearing Material Through Hardened Steel | ||
Maximum Speed - Oil 5700rpm | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
