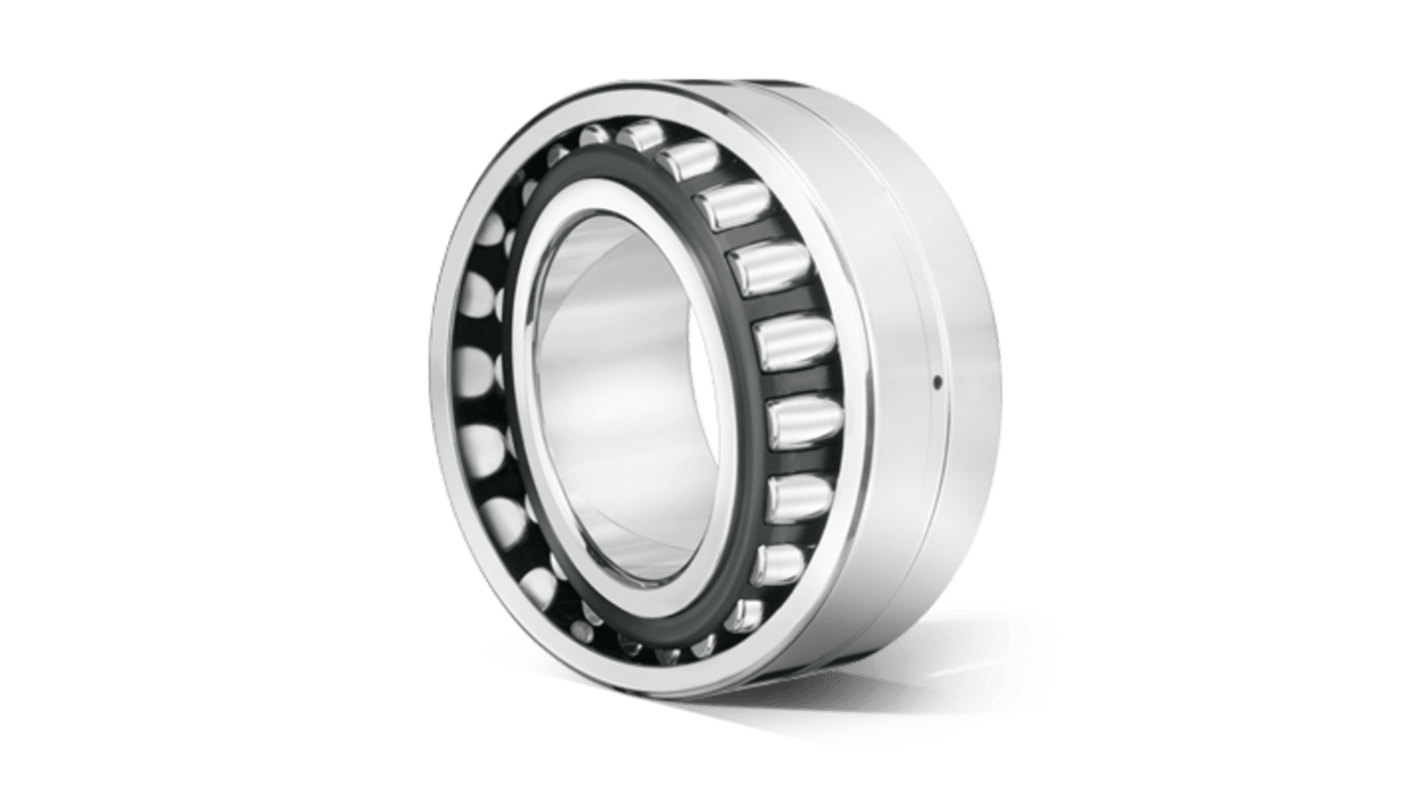

NTN 22209EAKW33ZZ Tapered 45 mm ID Spherical Roller Bearing, 85 mm OD
- RS Stock No.:
- 640-220
- Mfr. Part No.:
- 22209EAKW33ZZ
- Brand:
- NTN
Subtotal (1 unit)*
£97.65
(exc. VAT)
£117.18
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £97.65 |
*price indicative
- RS Stock No.:
- 640-220
- Mfr. Part No.:
- 22209EAKW33ZZ
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 45mm | |
| Race Width | 23mm | |
| Bore Type | Tapered | |
| Cage Material | Steel | |
| Maximum Speed - Grease | 7500rpm | |
| Limiting Speed | 9800rpm | |
| Maximum Speed - Oil | 9400rpm | |
| Series | 222 | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 121kN | |
| Outside Diameter | 85mm | |
| Internal Clearance | CN | |
| Static Load Rating | 113kN | |
| Number of Rows | 2 | |
| Bearing Material | Through Hardened Steel | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 45mm | ||
Race Width 23mm | ||
Bore Type Tapered | ||
Cage Material Steel | ||
Maximum Speed - Grease 7500rpm | ||
Limiting Speed 9800rpm | ||
Maximum Speed - Oil 9400rpm | ||
Series 222 | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 121kN | ||
Outside Diameter 85mm | ||
Internal Clearance CN | ||
Static Load Rating 113kN | ||
Number of Rows 2 | ||
Bearing Material Through Hardened Steel | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
