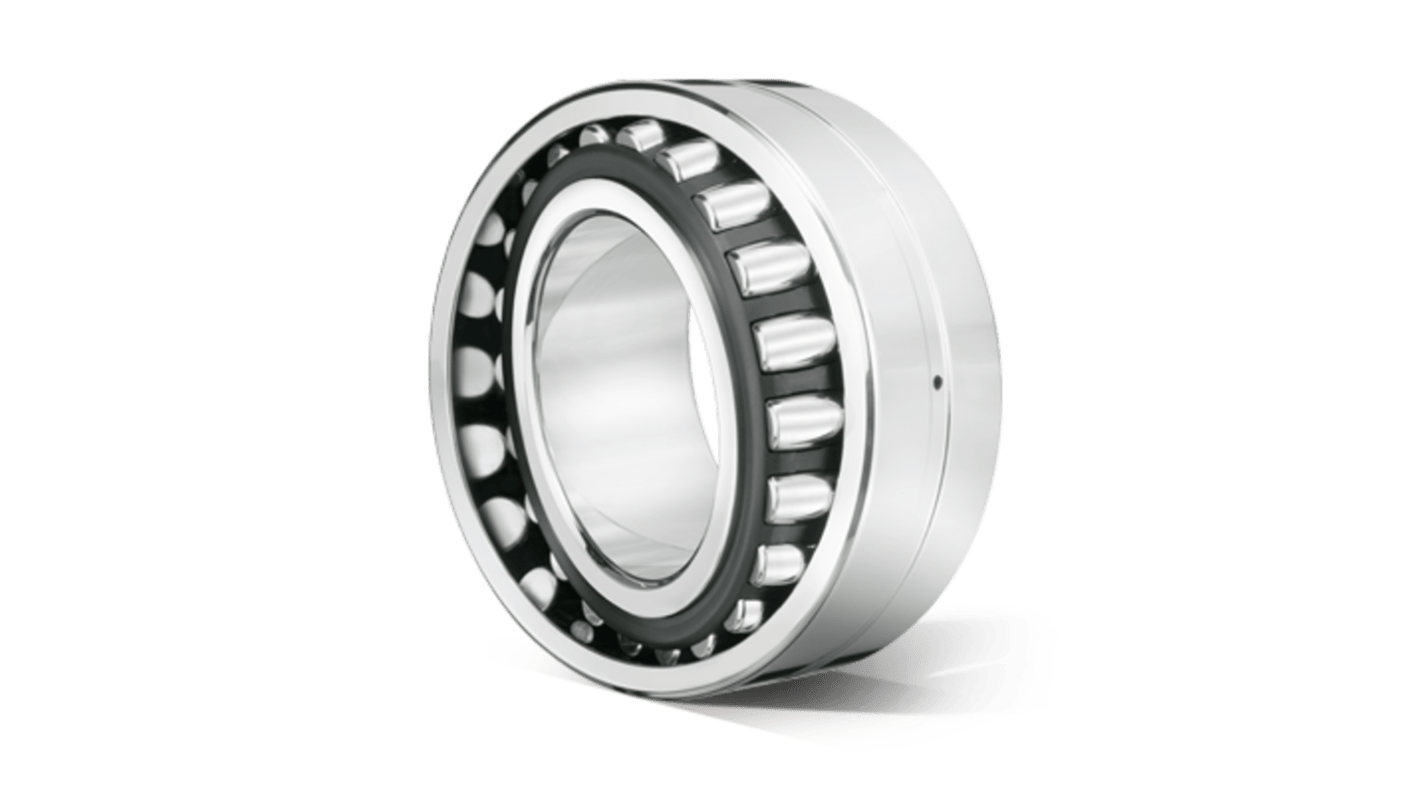

NTN 22209EAKW33ZZC3 Tapered 45 mm ID Spherical Roller Bearing, 85 mm OD
- RS Stock No.:
- 640-221
- Mfr. Part No.:
- 22209EAKW33ZZC3
- Brand:
- NTN
Subtotal (1 unit)*
£97.65
(exc. VAT)
£117.18
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £97.65 |
*price indicative
- RS Stock No.:
- 640-221
- Mfr. Part No.:
- 22209EAKW33ZZC3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 45mm | |
| Race Width | 23mm | |
| Bore Type | Tapered | |
| Cage Material | Steel | |
| Internal Clearance | C3 | |
| Bearing Material | Through Hardened Steel | |
| Outside Diameter | 85mm | |
| Series | 222 | |
| Dynamic Load Rating | 121kN | |
| End Type | Open | |
| Standards/Approvals | No | |
| Number of Rows | 2 | |
| Static Load Rating | 113kN | |
| Maximum Speed - Oil | 9400rpm | |
| Limiting Speed | 9800rpm | |
| Maximum Speed - Grease | 6100rpm | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 45mm | ||
Race Width 23mm | ||
Bore Type Tapered | ||
Cage Material Steel | ||
Internal Clearance C3 | ||
Bearing Material Through Hardened Steel | ||
Outside Diameter 85mm | ||
Series 222 | ||
Dynamic Load Rating 121kN | ||
End Type Open | ||
Standards/Approvals No | ||
Number of Rows 2 | ||
Static Load Rating 113kN | ||
Maximum Speed - Oil 9400rpm | ||
Limiting Speed 9800rpm | ||
Maximum Speed - Grease 6100rpm | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
