NTN 1R90X100X36 90 mm I.D Needle Roller Bearing Needle Roller, 100 mm O.D

View all Roller Bearings

Subtotal (1 unit)*

£54.96

(exc. VAT)

£65.95

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£54.96

*price indicative

RS Stock No.:
640-094
Mfr. Part No.:
1R90X100X36
Brand:
NTN
Find similar products by selecting one or more attributes.
Select all

Brand

NTN

Product Type

Needle Roller Bearing

Inside Diameter

90 mm

Race Width

36mm

Outside Diameter

100 mm

Series

1R

Standards/Approvals

No

Bearing Type

Needle Roller

Non Compliant

COO (Country of Origin):
JP

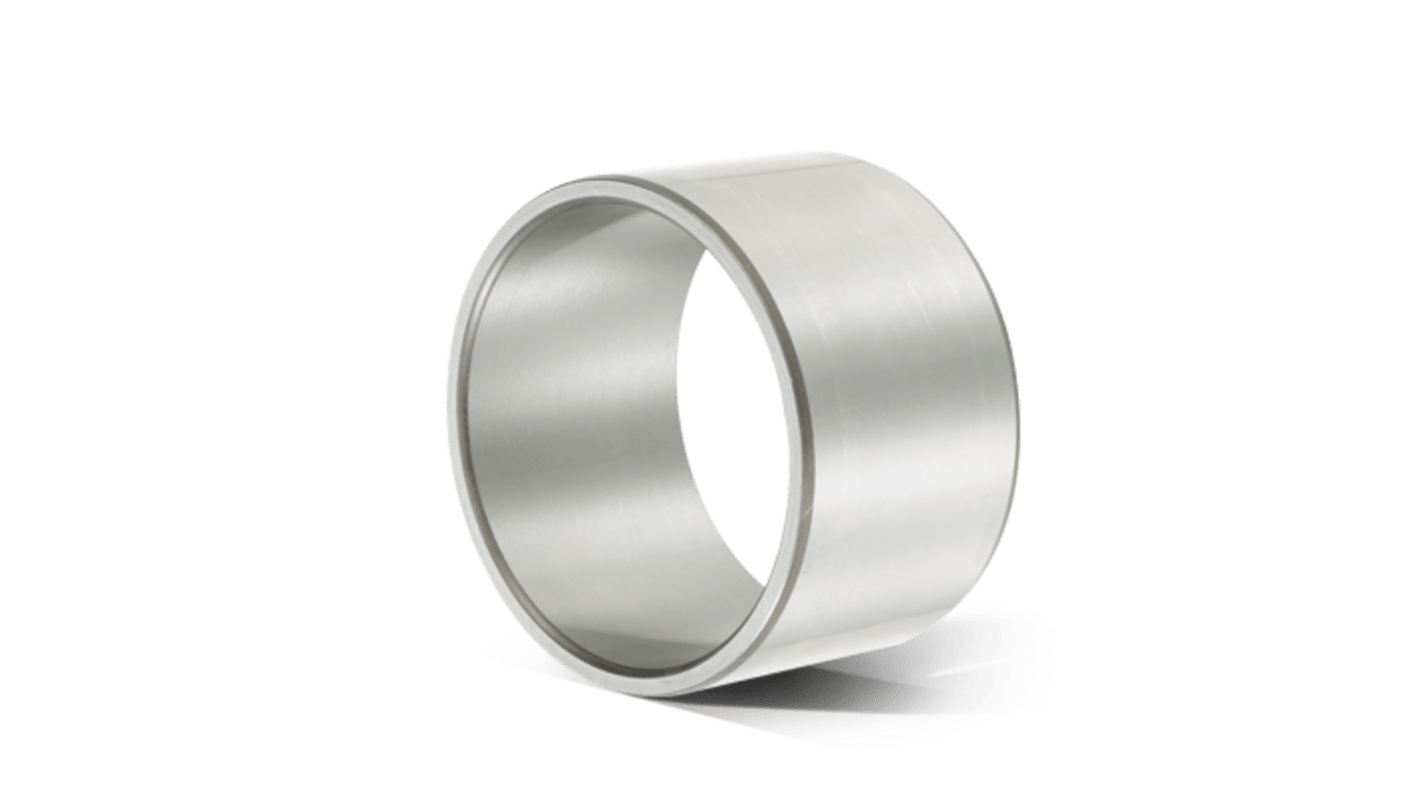

The NTN Needle Roller Bearing with inner ring designed for applications where the shaft cannot be hardened or ground. With an internal diameter (d) of 90 mm, an outer diameter (F) of 100 mm, and a width (B) of 36 mm, this inner ring provides a durable raceway for needle rollers and cage assemblies. It features a minimum fillet radius (rs) of 1 mm and a chamfer length (t) of 2.5 mm, facilitating smooth assembly. Manufactured from hardened bearing steel, it is classified under precision class P0, ensuring reliable performance in various mechanical systems. The mass of this component is approximately 0.406 kg.

95 mm Min shoulder diameter IR

1 mm Max shaft & housing fillet radius
