NTN 1R90X100X30 90 mm I.D Needle Roller Bearing Needle Roller, 100 mm O.D
- RS Stock No.:
- 640-093
- Mfr. Part No.:
- 1R90X100X30
- Brand:
- NTN
Subtotal (1 unit)*
£51.08
(exc. VAT)
£61.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £51.08 |
*price indicative
- RS Stock No.:
- 640-093
- Mfr. Part No.:
- 1R90X100X30
- Brand:
- NTN
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 90 mm | |
| Race Width | 30mm | |
| Outside Diameter | 100 mm | |
| Series | 1R | |
| Standards/Approvals | No | |
| Bearing Type | Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 90 mm | ||
Race Width 30mm | ||
Outside Diameter 100 mm | ||
Series 1R | ||
Standards/Approvals No | ||
Bearing Type Needle Roller | ||
Non Compliant
- COO (Country of Origin):
- JP

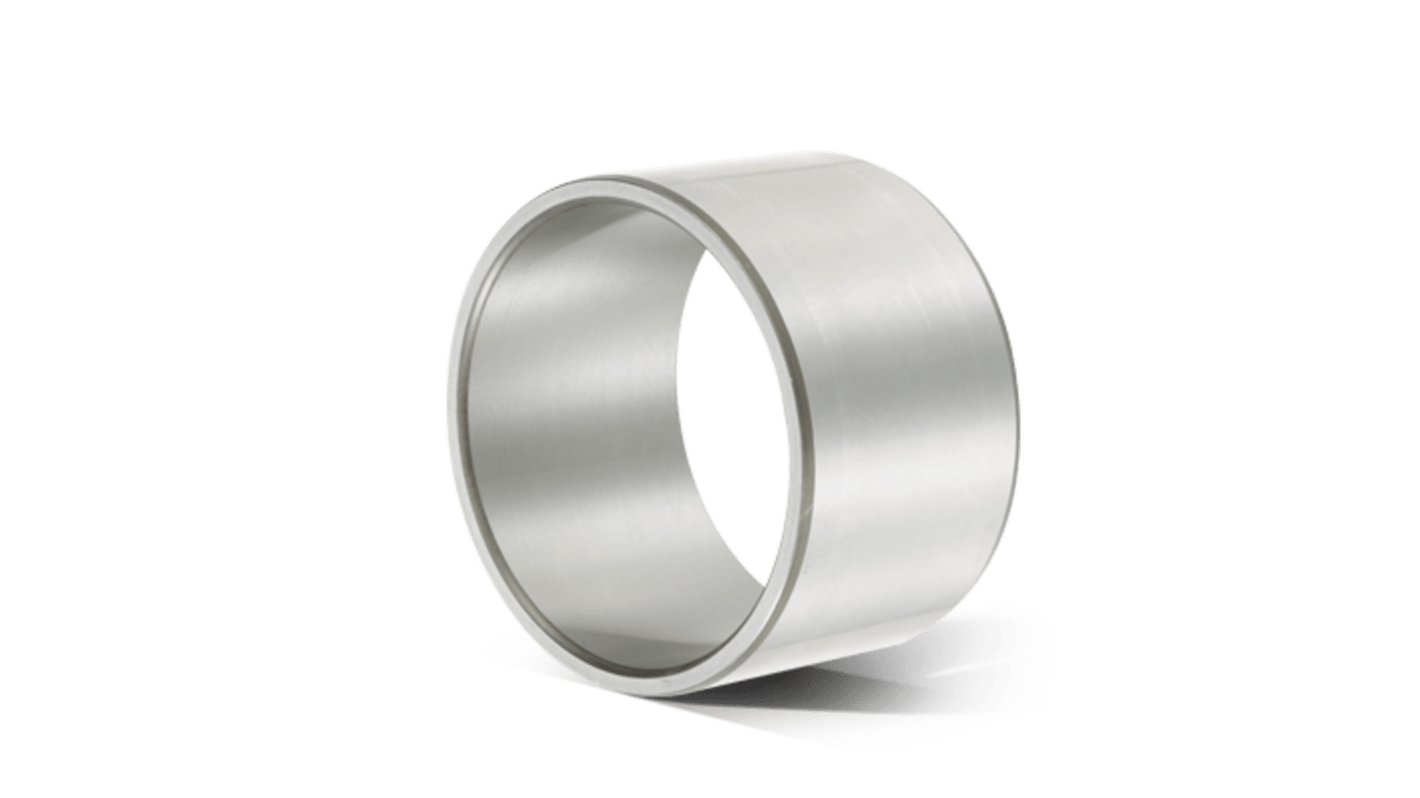

The NTN Needle Roller Bearing with inner ring features an internal diameter (d) of 90 mm, an outer diameter (F) of 100 mm, and a width (B) of 30 mm. Manufactured from high-quality chrome steel, this inner ring is precision-machined to meet DIN 620 standards. It has a minimum fillet radius (rs) of 1 mm and a chamfer length (t) of 2.5 mm, facilitating smooth assembly. Designed without a lubrication hole, it is suitable for applications where external lubrication is not required. This component is classified under precision class P0, ensuring reliable performance in various mechanical systems. The mass of this inner ring is approximately 0.34 kg.
95 mm Min shoulder diameter IR
1 mm Max shaft & housing fillet radius
