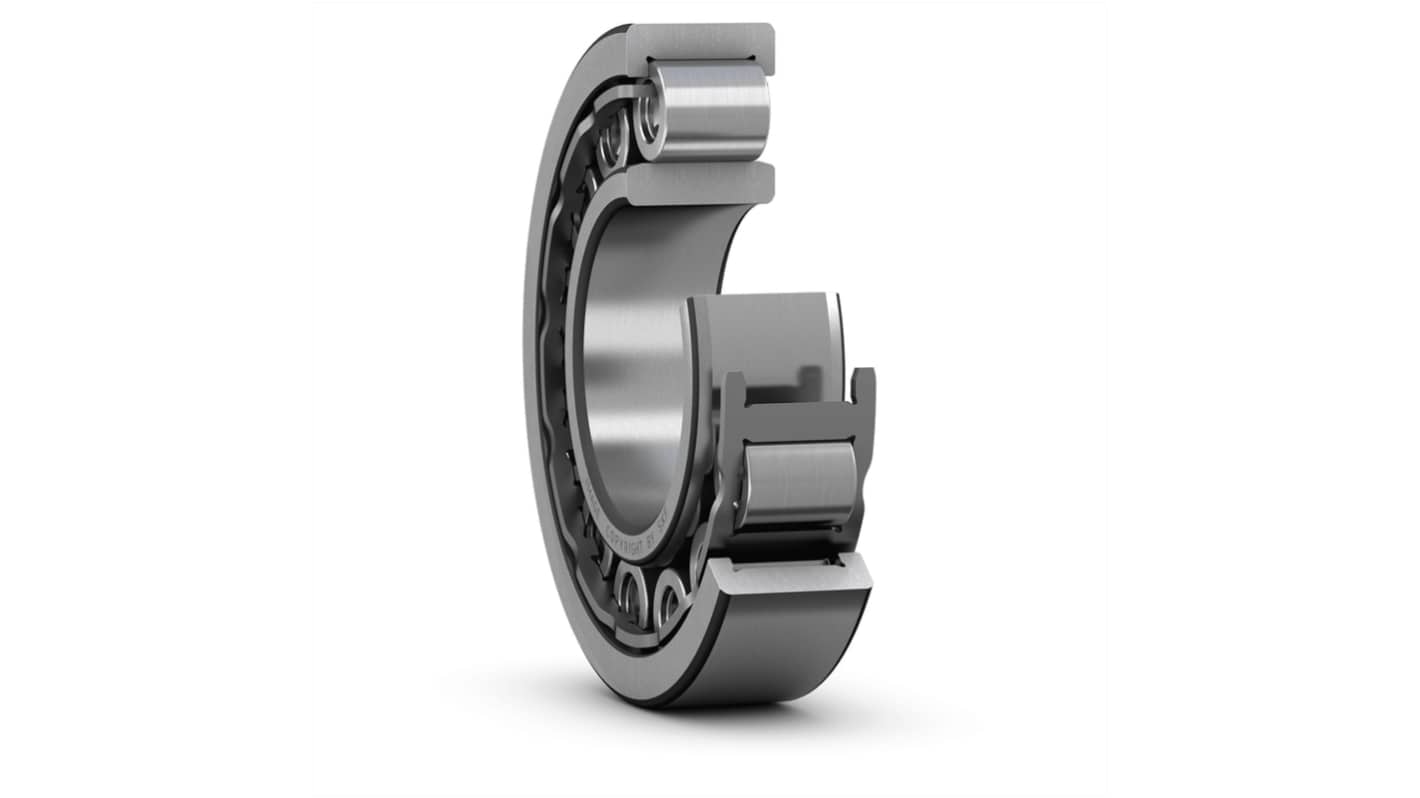

SKF NU 313 ECJ 65 mm ID Cylindrical Roller Bearing, 140 mm OD
- RS Stock No.:
- 587-148
- Mfr. Part No.:
- NU 313 ECJ
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£256.16
(exc. VAT)
£307.39
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £256.16 | £128.08 |
*price indicative
- RS Stock No.:
- 587-148
- Mfr. Part No.:
- NU 313 ECJ
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 65mm | |
| Race Width | 33mm | |
| Bore Type | Parallel | |
| Roller Material | Bearing Steel | |
| Cage Material | Sheet Metal | |
| Limiting Speed | 6000rpm | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 196kN | |
| Outside Diameter | 140mm | |
| Dynamic Load Rating | 212kN | |
| End Type | Open | |
| Standards/Approvals | RoHS Compliance | |
| Series | NU | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 65mm | ||
Race Width 33mm | ||
Bore Type Parallel | ||
Roller Material Bearing Steel | ||
Cage Material Sheet Metal | ||
Limiting Speed 6000rpm | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Static Load Rating 196kN | ||
Outside Diameter 140mm | ||
Dynamic Load Rating 212kN | ||
End Type Open | ||
Standards/Approvals RoHS Compliance | ||
Series NU | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
