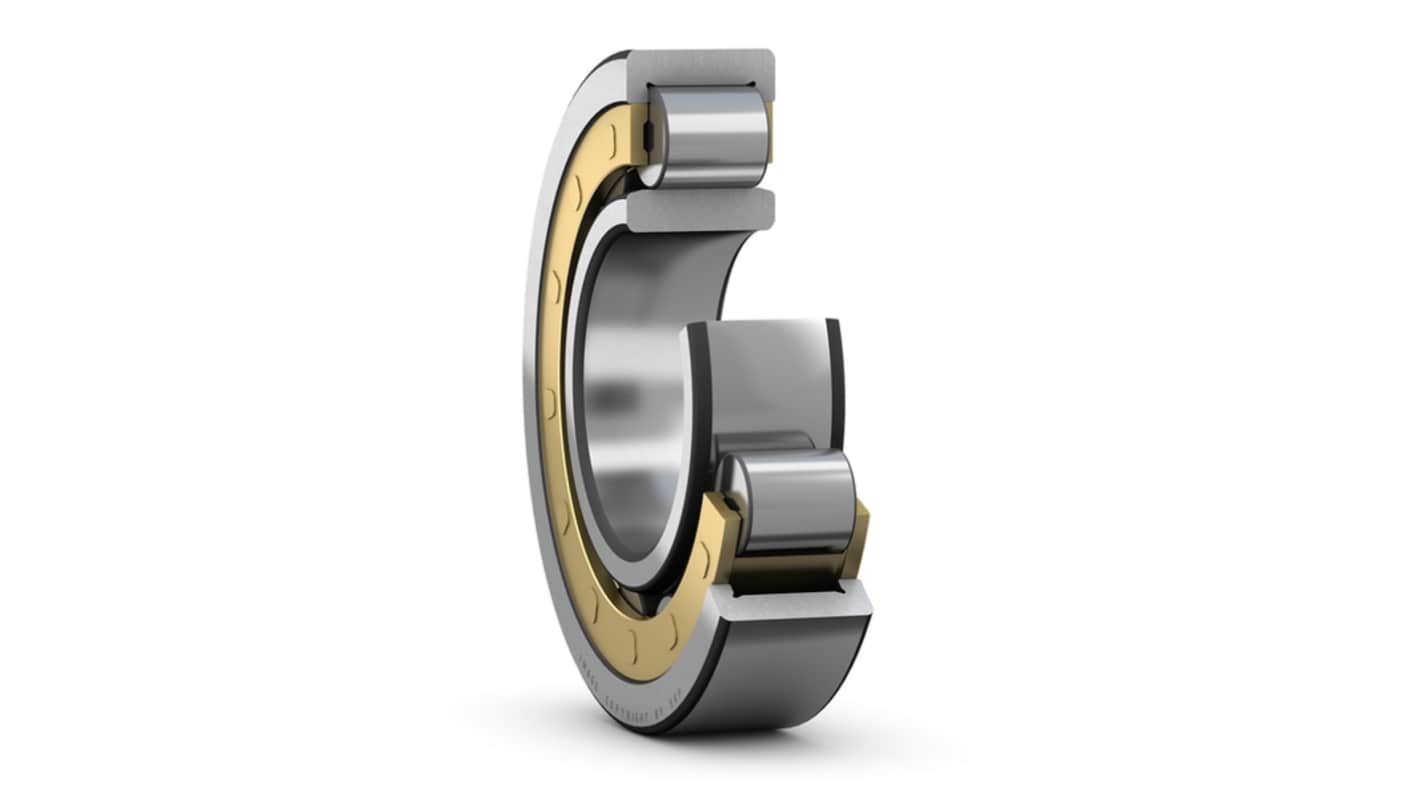

SKF NU 313 ECM 65 mm ID Cylindrical Roller Bearing, 140 mm OD
- RS Stock No.:
- 464-492
- Mfr. Part No.:
- NU 313 ECM
- Brand:
- SKF
Subtotal (1 unit)*
£402.01
(exc. VAT)
£482.41
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £402.01 |
*price indicative
- RS Stock No.:
- 464-492
- Mfr. Part No.:
- NU 313 ECM
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 65mm | |
| Race Width | 33mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Limiting Speed | 6000rpm | |
| Number of Rows | 1 | |
| Static Load Rating | 196kN | |
| Internal Clearance | CN | |
| Outside Diameter | 140mm | |
| Dynamic Load Rating | 212kN | |
| Standards/Approvals | RoHS | |
| Series | NU | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 65mm | ||
Race Width 33mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Limiting Speed 6000rpm | ||
Number of Rows 1 | ||
Static Load Rating 196kN | ||
Internal Clearance CN | ||
Outside Diameter 140mm | ||
Dynamic Load Rating 212kN | ||
Standards/Approvals RoHS | ||
Series NU | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions.
High radial load carrying capacity
Low friction
Long service life
