SKF NJ 313 ECJ 65 mm ID Roller Bearing, 140 mm OD
- RS Stock No.:
- 465-376
- Mfr. Part No.:
- NJ 313 ECJ
- Brand:
- SKF
Subtotal (1 unit)*
£294.69
(exc. VAT)
£353.63
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £294.69 |
*price indicative
- RS Stock No.:
- 465-376
- Mfr. Part No.:
- NJ 313 ECJ
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 65mm | |
| Race Width | 33mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Standards/Approvals | RoHS | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Outside Diameter | 140mm | |
| Dynamic Load Rating | 212kN | |
| Static Load Rating | 196kN | |
| Limiting Speed | 6000rpm | |
| Series | NJ | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 65mm | ||
Race Width 33mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Standards/Approvals RoHS | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Outside Diameter 140mm | ||
Dynamic Load Rating 212kN | ||
Static Load Rating 196kN | ||
Limiting Speed 6000rpm | ||
Series NJ | ||
- COO (Country of Origin):
- DE

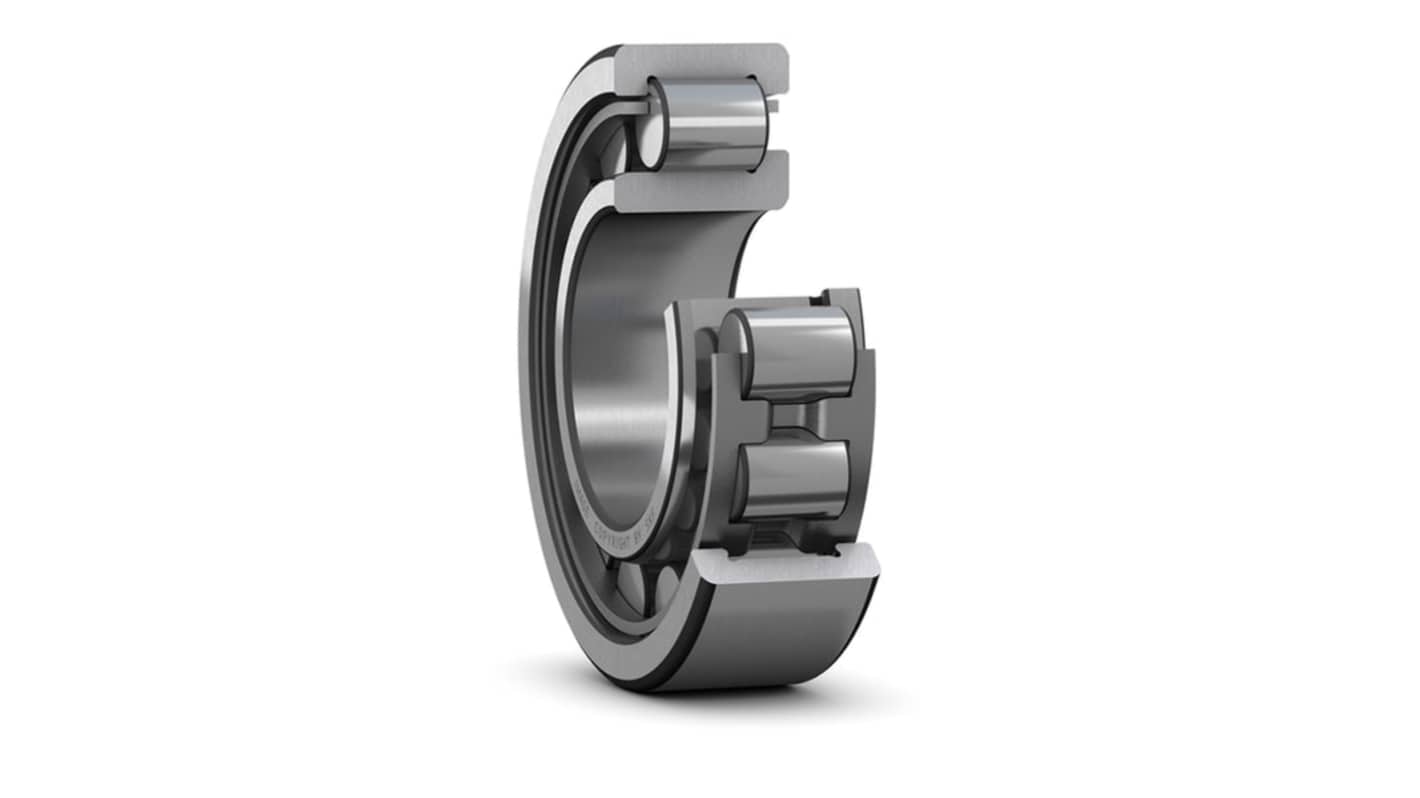

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
