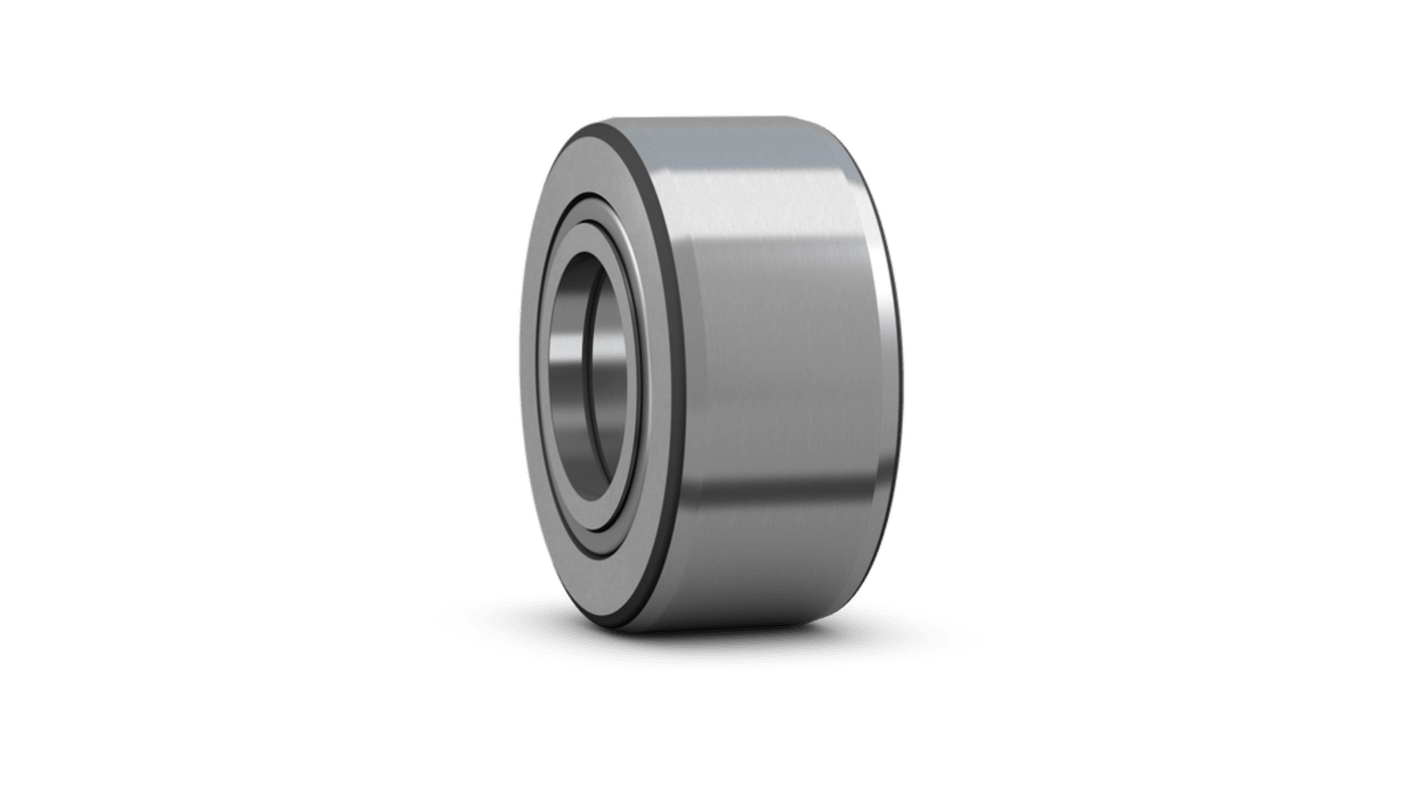

SKF NUTR 45100 X 45 mm ID Roller Bearing Needle, 100 mm OD
- RS Stock No.:
- 465-017
- Mfr. Part No.:
- NUTR 45100 X
- Brand:
- SKF
Subtotal (1 unit)*
£230.10
(exc. VAT)
£276.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £230.10 |
*price indicative
- RS Stock No.:
- 465-017
- Mfr. Part No.:
- NUTR 45100 X
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 45mm | |
| Race Width | 32mm | |
| Outside Diameter | 100mm | |
| Number of Rows | 2 | |
| Limiting Speed | 1700rpm | |
| Static Load Rating | 104kN | |
| Dynamic Load Rating | 73.7kN | |
| Bearing Material | Bearing Steel | |
| Internal Clearance | Between C2 and CN | |
| Standards/Approvals | RoHS | |
| Series | NUTR | |
| Bearing Type | Needle | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 45mm | ||
Race Width 32mm | ||
Outside Diameter 100mm | ||
Number of Rows 2 | ||
Limiting Speed 1700rpm | ||
Static Load Rating 104kN | ||
Dynamic Load Rating 73.7kN | ||
Bearing Material Bearing Steel | ||
Internal Clearance Between C2 and CN | ||
Standards/Approvals RoHS | ||
Series NUTR | ||
Bearing Type Needle | ||
- COO (Country of Origin):
- DE
The SKF Support rollers are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a double row full complement cylindrical roller bearing with an inner ring and have a thick walled outer ring with a cylindrical running surface. They are supplied sealed and ready to mount. The inner ring contains a lubrication hole to facilitate relubrication.
High radial load carrying capacity
Accommodate relatively heavy axial loads due to skew or tilting
Long service life
Ready to mount
Sealed for increased reliability with relubrication feature
