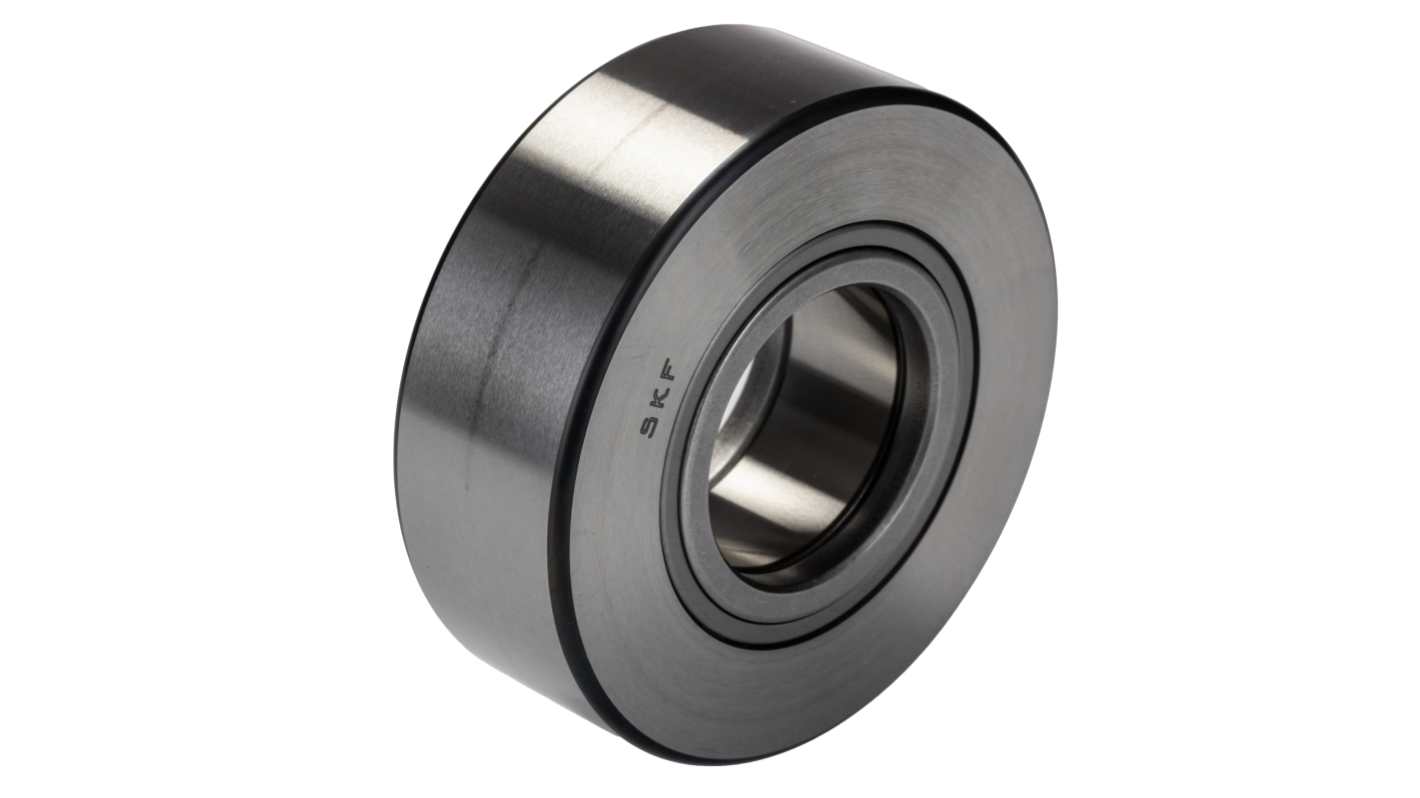

SKF NUTR 45100 A 45mm I.D Spherical Roller Bearing Roller Bearing, 100mm O.D
- RS Stock No.:
- 210-1514
- Mfr. Part No.:
- NUTR 45100 A
- Brand:
- SKF
Subtotal (1 unit)*
£189.54
(exc. VAT)
£227.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £189.54 |
*price indicative
- RS Stock No.:
- 210-1514
- Mfr. Part No.:
- NUTR 45100 A
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 45mm | |
Outside Diameter | 100mm | |
Roller Bearing Type | Spherical Roller Bearing | |
Race Width | 32mm | |
Bore Type | Parallel | |
Material | Steel | |
Static Load Rating | 104kN | |
Number of Rows | 2 | |
Roller Material | Steel | |
Dynamic Load Rating | 73.7kN | |
End Type | Both Sides Sealed | |
Limiting Speed | 1700rpm | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 45mm | ||
Outside Diameter 100mm | ||
Roller Bearing Type Spherical Roller Bearing | ||
Race Width 32mm | ||
Bore Type Parallel | ||
Material Steel | ||
Static Load Rating 104kN | ||
Number of Rows 2 | ||
Roller Material Steel | ||
Dynamic Load Rating 73.7kN | ||
End Type Both Sides Sealed | ||
Limiting Speed 1700rpm | ||
- COO (Country of Origin):
- DE
SKF Roller Bearing, 100mm Outside Diameter, 73.7kN Dynamic Load Rating - NUTR 45100 A
This roller bearing is designed for stability and durability, making it suitable for various mechanical applications. With an inside diameter of 45mm and an outside diameter of 100mm, this double row spherical roller bearing is capable of withstanding significant loads while providing smooth operation at moderate speeds. It features sealed ends to enhance protection against contaminants.
Features & Benefits
• Spherical design accommodates misalignment for easier installation
• High load capacity rating of 104kN for critical applications
• Sealed roller design prevents contamination, extending service life
• Steel construction ensures performance in harsh conditions
• Limiting speed of 1700r/min supports a wide range of operational speeds
• Dual row configuration enhances operational stability
• High load capacity rating of 104kN for critical applications
• Sealed roller design prevents contamination, extending service life
• Steel construction ensures performance in harsh conditions
• Limiting speed of 1700r/min supports a wide range of operational speeds
• Dual row configuration enhances operational stability
Applications
• Ideal for equipment requiring strong radial and axial load support
• Used in automation systems where precision is essential
• Suitable for electrical motor
• Employed in mechanical systems that demand high reliability
• Used in automation systems where precision is essential
• Suitable for electrical motor
• Employed in mechanical systems that demand high reliability
Can it accommodate misalignment?
Yes, it is designed to adapt to misalignment during installation.
Will it support high loads?
Yes, it has a static load rating of 104kN.
Can it operate at high speeds?
Yes, with a limiting speed of 1700r/min, it supports various applications.
Does it require special lubrication?
It functions effectively with standard lubrication methods.
