SKF NA 4832 160 mm ID Needle Roller Bearing Complete, 200 mm OD
- RS Stock No.:
- 464-419
- Mfr. Part No.:
- NA 4832
- Brand:
- SKF
Subtotal (1 unit)*
£802.92
(exc. VAT)
£963.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £802.92 |
*price indicative
- RS Stock No.:
- 464-419
- Mfr. Part No.:
- NA 4832
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 160 mm | |
| Race Width | 40mm | |
| Cage Material | Sheet Steel | |
| Static Load Rating | 450kN | |
| Series | NA 4832 | |
| Internal Clearance | CN | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 2600rpm | |
| Outside Diameter | 200 mm | |
| Bearing Material | Bearing Steel | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 157kN | |
| Bearing Type | Complete | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 160 mm | ||
Race Width 40mm | ||
Cage Material Sheet Steel | ||
Static Load Rating 450kN | ||
Series NA 4832 | ||
Internal Clearance CN | ||
Standards/Approvals RoHS | ||
Limiting Speed 2600rpm | ||
Outside Diameter 200 mm | ||
Bearing Material Bearing Steel | ||
Number of Rows 1 | ||
Dynamic Load Rating 157kN | ||
Bearing Type Complete | ||
- COO (Country of Origin):
- DE

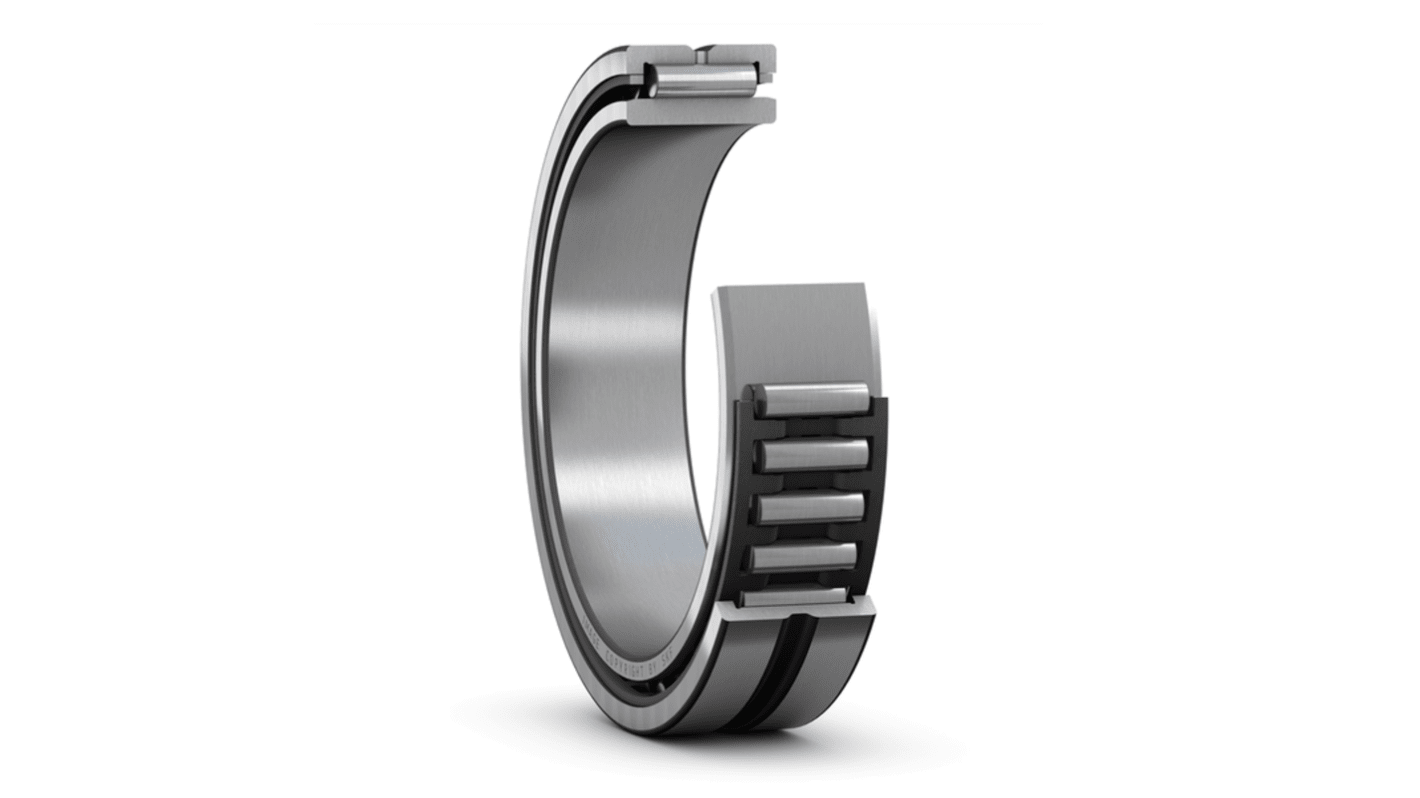

The SKF Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
High radial load carrying capacity
High stiffness
Accommodate axial displacement in both directions
