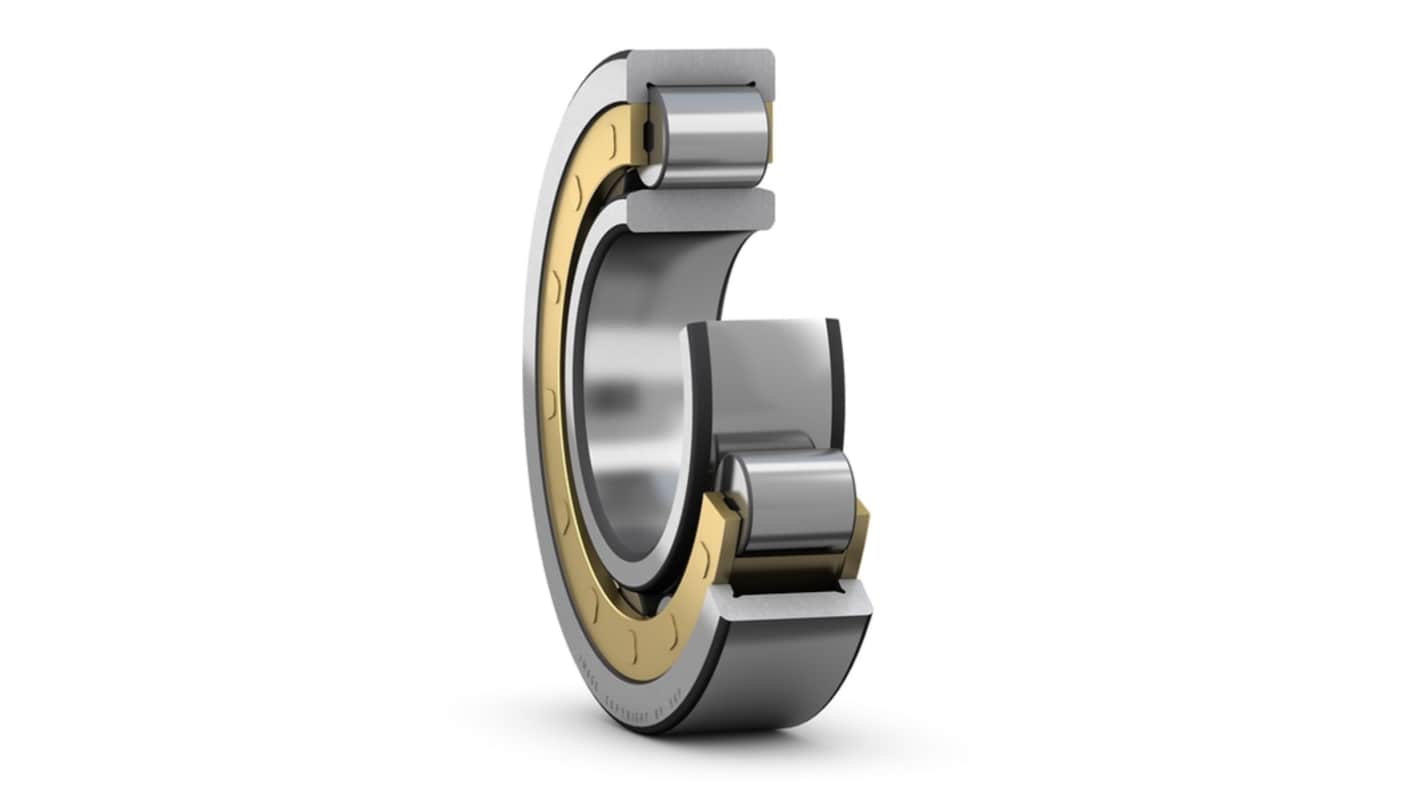

SKF NU 2317 ECM/C3 85 mm ID Cylindrical Roller Bearing, 180 mm OD
- RS Stock No.:
- 463-854
- Mfr. Part No.:
- NU 2317 ECM/C3
- Brand:
- SKF
Subtotal (1 unit)*
£1,184.37
(exc. VAT)
£1,421.24
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,184.37 |
*price indicative
- RS Stock No.:
- 463-854
- Mfr. Part No.:
- NU 2317 ECM/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 85mm | |
| Race Width | 60mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Standards/Approvals | RoHS | |
| Outside Diameter | 180mm | |
| Number of Rows | 1 | |
| Limiting Speed | 4800rpm | |
| Static Load Rating | 490kN | |
| Internal Clearance | C3 | |
| Dynamic Load Rating | 455kN | |
| Series | NU | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 85mm | ||
Race Width 60mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Standards/Approvals RoHS | ||
Outside Diameter 180mm | ||
Number of Rows 1 | ||
Limiting Speed 4800rpm | ||
Static Load Rating 490kN | ||
Internal Clearance C3 | ||
Dynamic Load Rating 455kN | ||
Series NU | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
