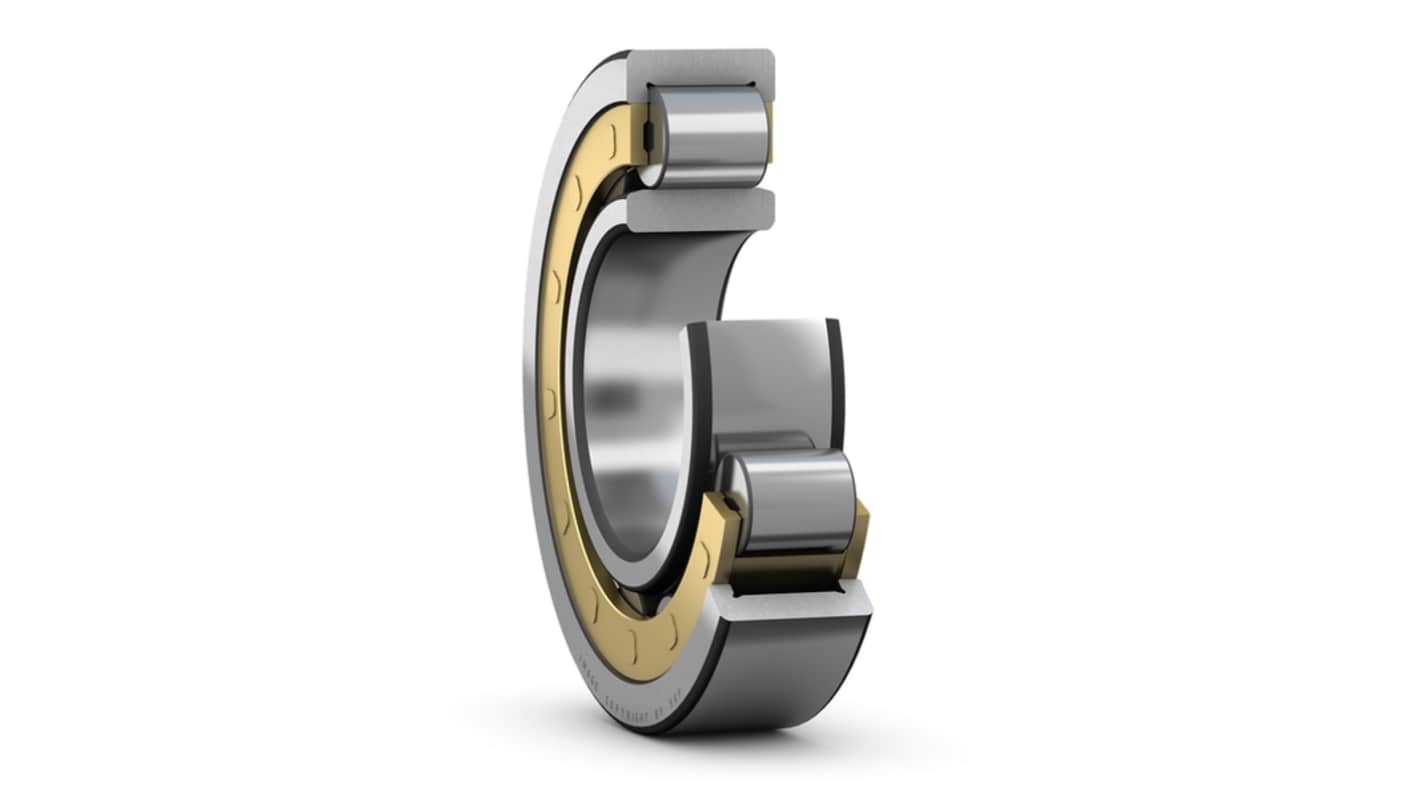

SKF NU 317 ECM 85 mm I.D Cylindrical Roller Bearing, 180 mm O.D

View all Roller Bearings

Subtotal (1 unit)*

£637.04

(exc. VAT)

£764.45

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£637.04

*price indicative

RS Stock No.:
463-872
Mfr. Part No.:
NU 317 ECM
Brand:
SKF
Find similar products by selecting one or more attributes.
Select all

Brand

SKF

Product Type

Cylindrical Roller Bearing

Inside Diameter

85 mm

Race Width

41mm

Bore Type

Cylindrical

Cage Material

Machined Brass

Internal Clearance

CN

Number of Rows

1

Outside Diameter

180 mm

Series

NU

Static Load Rating

335kN

Limiting Speed

4800rpm

Dynamic Load Rating

340kN

Standards/Approvals

RoHS

COO (Country of Origin):
DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High radial load carrying capacity

Low friction

Long service life

Accommodate axial displacement in both directions

Separable design
