SKF NU 2317 ECP 35 mm ID Cylindrical Roller Bearing, 80 mm OD
- RS Stock No.:
- 463-061
- Mfr. Part No.:
- NU 2317 ECP
- Brand:
- SKF
Subtotal (1 unit)*
£534.95
(exc. VAT)
£641.94
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £534.95 |
*price indicative
- RS Stock No.:
- 463-061
- Mfr. Part No.:
- NU 2317 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 35mm | |
| Race Width | 21mm | |
| Bore Type | Cylindrical | |
| Cage Material | Non-Metallic | |
| Limiting Speed | 4800rpm | |
| Number of Rows | 1 | |
| Static Load Rating | 490kN | |
| Internal Clearance | CN | |
| Outside Diameter | 80mm | |
| Dynamic Load Rating | 455kN | |
| Standards/Approvals | RoHS | |
| Series | NU | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 35mm | ||
Race Width 21mm | ||
Bore Type Cylindrical | ||
Cage Material Non-Metallic | ||
Limiting Speed 4800rpm | ||
Number of Rows 1 | ||
Static Load Rating 490kN | ||
Internal Clearance CN | ||
Outside Diameter 80mm | ||
Dynamic Load Rating 455kN | ||
Standards/Approvals RoHS | ||
Series NU | ||
- COO (Country of Origin):
- DE

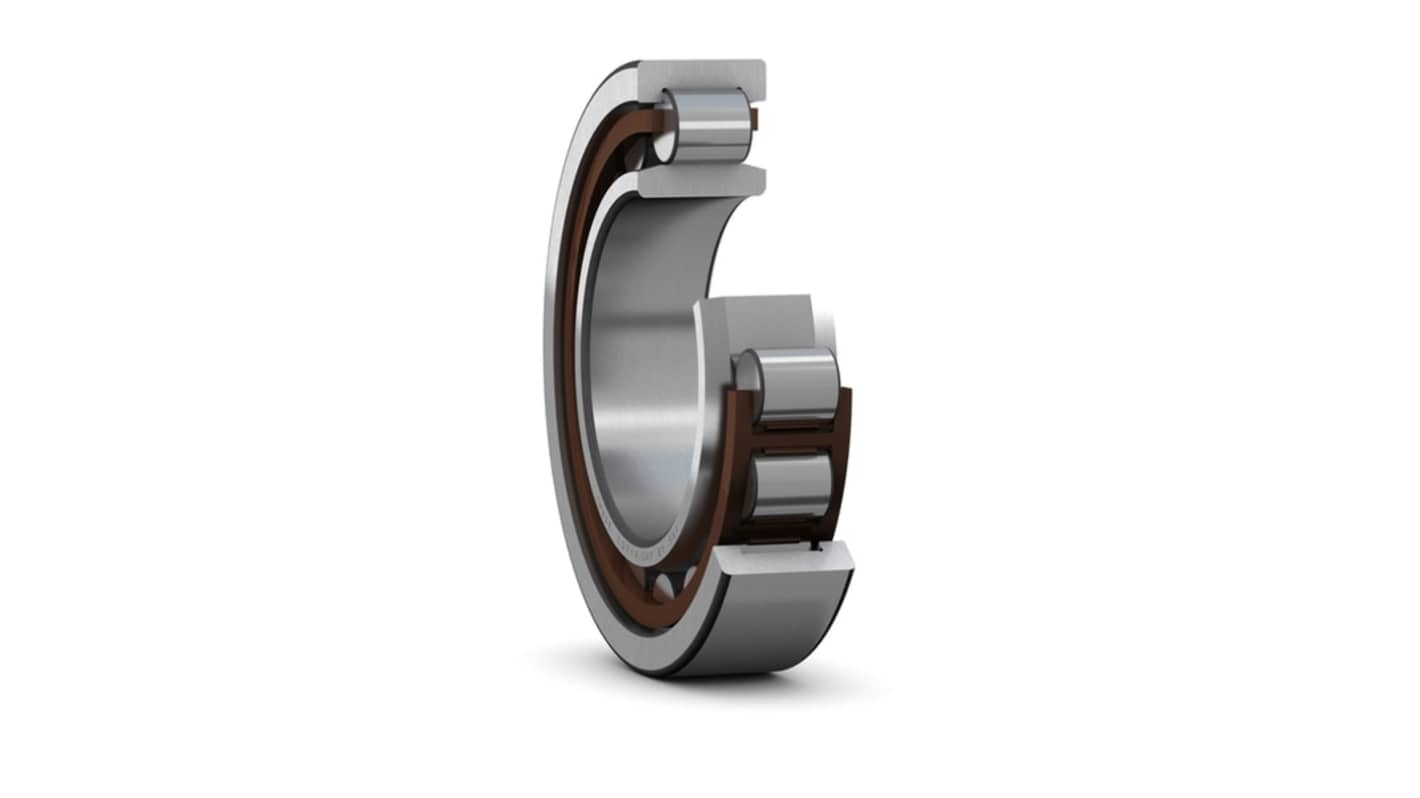

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
Low friction
Long service life
Accommodate axial displacement in both directions
