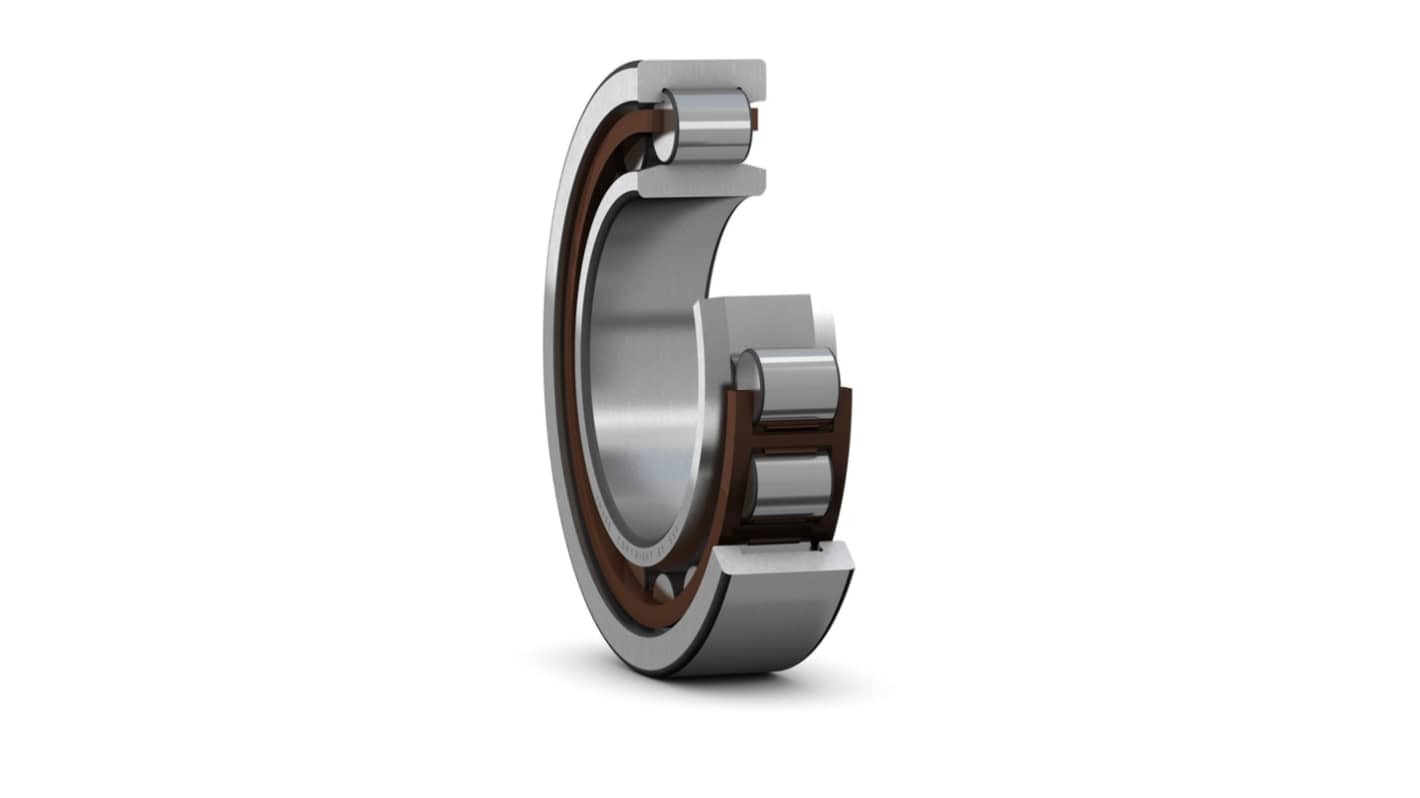

SKF NU 2307 ECP 35 mm ID Cylindrical Roller Bearing, 80 mm OD
- RS Stock No.:
- 587-145
- Mfr. Part No.:
- NU 2307 ECP
- Brand:
- SKF
Subtotal (1 pack of 5 units)*
£291.59
(exc. VAT)
£349.91
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £291.59 | £58.318 |
*price indicative
- RS Stock No.:
- 587-145
- Mfr. Part No.:
- NU 2307 ECP
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 35 mm | |
| Race Width | 31mm | |
| Bore Type | Parallel | |
| Cage Material | Non-Metallic | |
| Roller Material | Bearing Steel | |
| Static Load Rating | 63kN | |
| Number of Rows | 1 | |
| End Type | Open | |
| Outside Diameter | 80 mm | |
| Dynamic Load Rating | 75kN | |
| Series | NU | |
| Bearing Material | Steel | |
| Limiting Speed | 11000rpm | |
| Standards/Approvals | RoHS Compliance | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 35 mm | ||
Race Width 31mm | ||
Bore Type Parallel | ||
Cage Material Non-Metallic | ||
Roller Material Bearing Steel | ||
Static Load Rating 63kN | ||
Number of Rows 1 | ||
End Type Open | ||
Outside Diameter 80 mm | ||
Dynamic Load Rating 75kN | ||
Series NU | ||
Bearing Material Steel | ||
Limiting Speed 11000rpm | ||
Standards/Approvals RoHS Compliance | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
