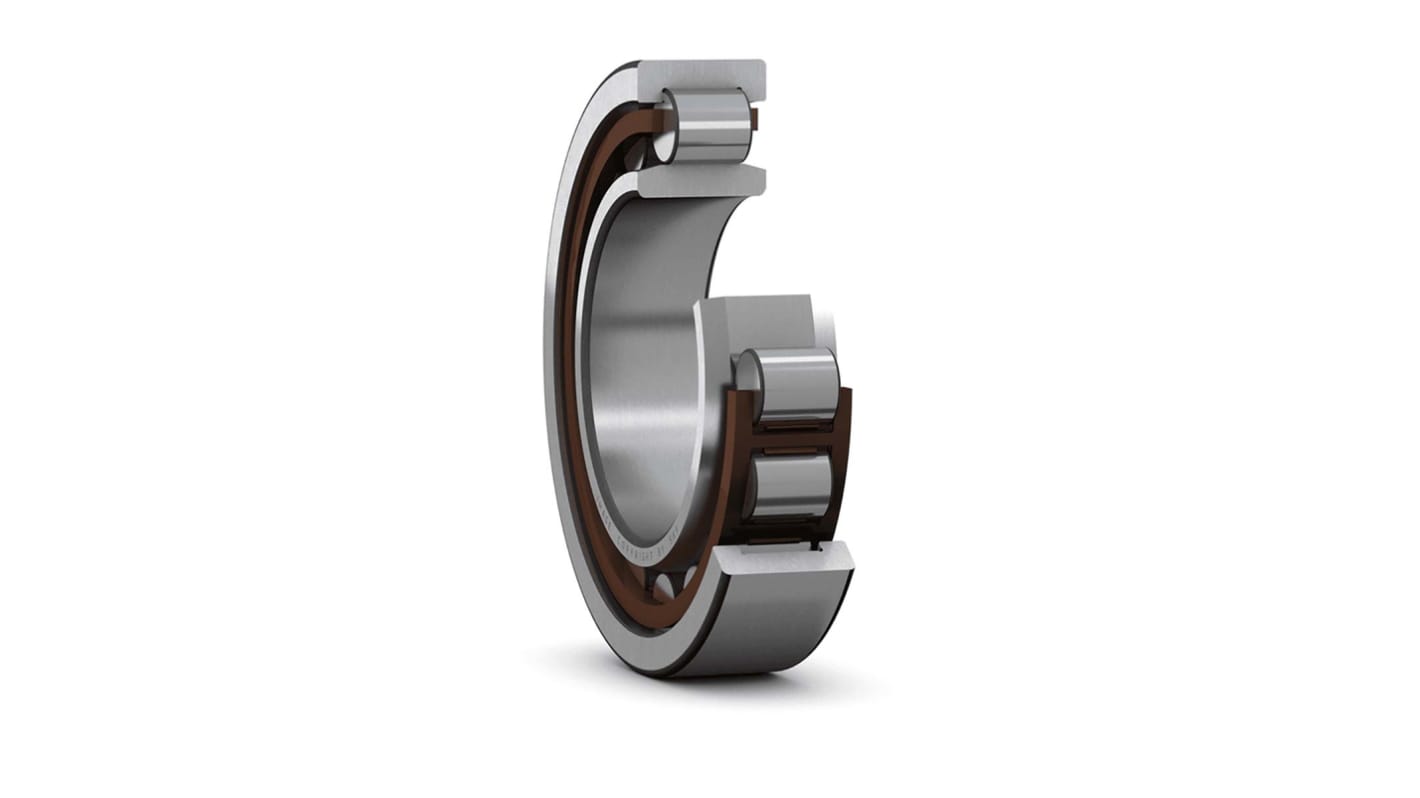

SKF NU 217 ECM/C3 85 mm I.D Roller Bearing, 150 mm O.D
- RS Stock No.:
- 209-2002
- Mfr. Part No.:
- NU 217 ECM/C3
- Brand:
- SKF
Subtotal (1 unit)*
£458.10
(exc. VAT)
£549.72
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £458.10 |
*price indicative
- RS Stock No.:
- 209-2002
- Mfr. Part No.:
- NU 217 ECM/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 85 mm | |
| Race Width | 28mm | |
| Bore Type | Cylindrical | |
| Outside Diameter | 150 mm | |
| Series | NU 217 ECM | |
| Static Load Rating | 200kN | |
| Number of Rows | 1 | |
| Standards/Approvals | No | |
| Limiting Speed | 5300rpm | |
| Dynamic Load Rating | 190kN | |
| End Type | Shielded | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 85 mm | ||
Race Width 28mm | ||
Bore Type Cylindrical | ||
Outside Diameter 150 mm | ||
Series NU 217 ECM | ||
Static Load Rating 200kN | ||
Number of Rows 1 | ||
Standards/Approvals No | ||
Limiting Speed 5300rpm | ||
Dynamic Load Rating 190kN | ||
End Type Shielded | ||
- COO (Country of Origin):
- DE
The SKF high-capacity cylindrical roller bearings combine the high load carrying capacity of a full complement bearing with the high speed capability of a bearing with cage. It has 85 mm ID and 150 mm OD.
Bearing is of bearing steel
Cylindrical bore type
