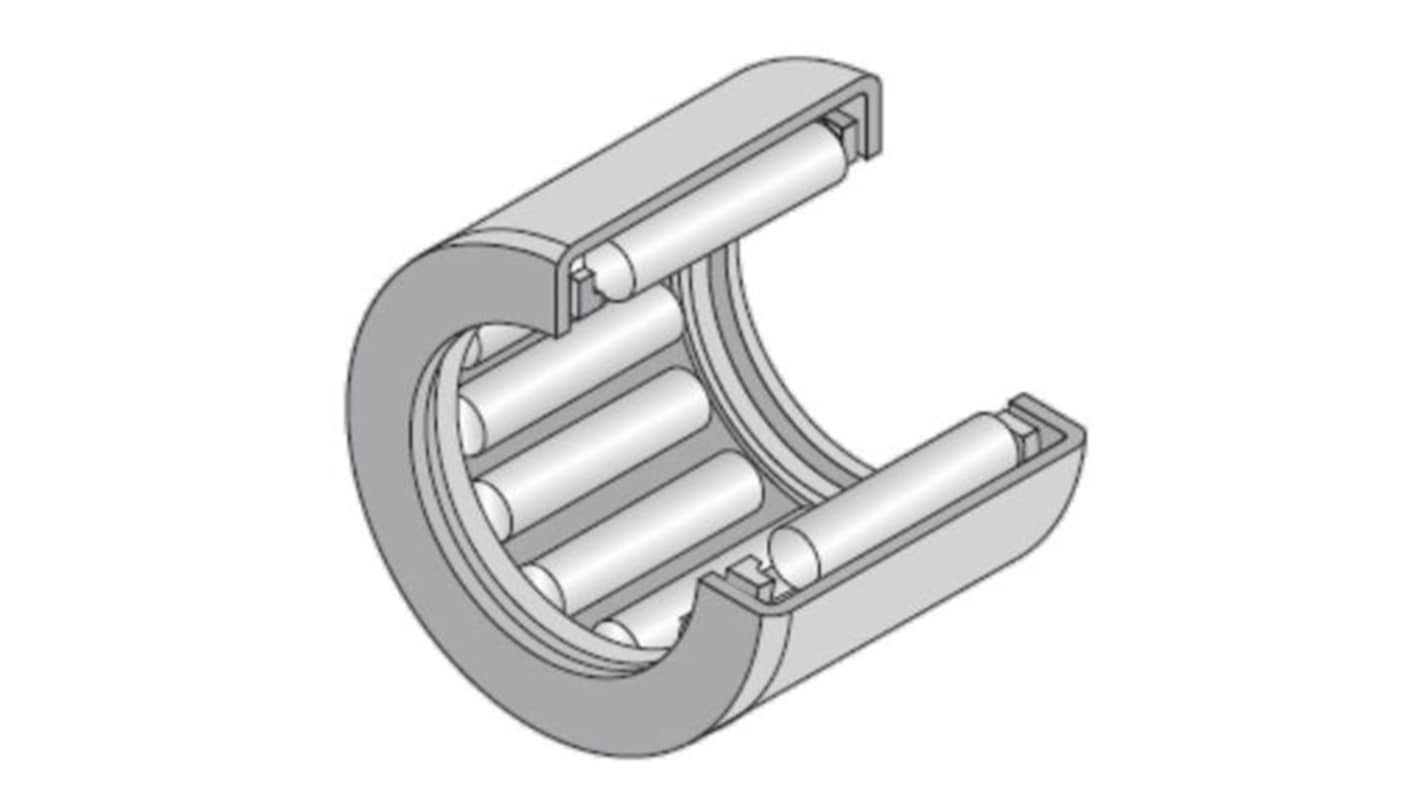

NTN HMK2225 22 mm ID Needle Roller Bearing Drawn Cup Needle Roller, 29 mm OD
- RS Stock No.:
- 455-197
- Mfr. Part No.:
- HMK2225
- Brand:
- NTN
Subtotal (1 unit)*
£6.22
(exc. VAT)
£7.46
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.22 |
*price indicative
- RS Stock No.:
- 455-197
- Mfr. Part No.:
- HMK2225
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 22 mm | |
| Race Width | 25mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Steel | |
| Maximum Speed - Oil | 11000rpm | |
| Maximum Speed - Grease | 7500rpm | |
| Number of Rows | 1 | |
| Series | HMK2225 | |
| Internal Clearance | CN | |
| Bearing Material | Steel | |
| Static Load Rating | 38.5kN | |
| Outside Diameter | 29 mm | |
| Dynamic Load Rating | 23.6kN | |
| End Type | Open | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 11000rpm | |
| Race Type | Drawn Cup Needle Roller Bearing | |
| Bearing Type | Drawn Cup Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 22 mm | ||
Race Width 25mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Steel | ||
Maximum Speed - Oil 11000rpm | ||
Maximum Speed - Grease 7500rpm | ||
Number of Rows 1 | ||
Series HMK2225 | ||
Internal Clearance CN | ||
Bearing Material Steel | ||
Static Load Rating 38.5kN | ||
Outside Diameter 29 mm | ||
Dynamic Load Rating 23.6kN | ||
End Type Open | ||
Standards/Approvals RoHS | ||
Limiting Speed 11000rpm | ||
Race Type Drawn Cup Needle Roller Bearing | ||
Bearing Type Drawn Cup Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Needle roller bearing boasts a robust design, tailored for heavy load applications, featuring an open end for versatile installation. Engineered for reliability, its drawn cup structure ensures a higher load capacity while minimising assembly space. With precise dimensions, including a 22 mm under roller diameter and an external diameter of 29 mm, it seamlessly fits into various mechanical systems. The component is expertly lubricated, enhancing performance under varying operational conditions, and is capable of withstanding temperature extremes from -20 °C to 120 °C. A visual indication ensures easy identification, making it an ideal choice for both professional and DIY use.
Precision engineering enhances load capacity without increasing size
Capable of operating in a wide temperature range for diverse environments
Visual indicators aid in quick product recognition and application
Constructed with high-quality materials to guarantee longevity and reliability
