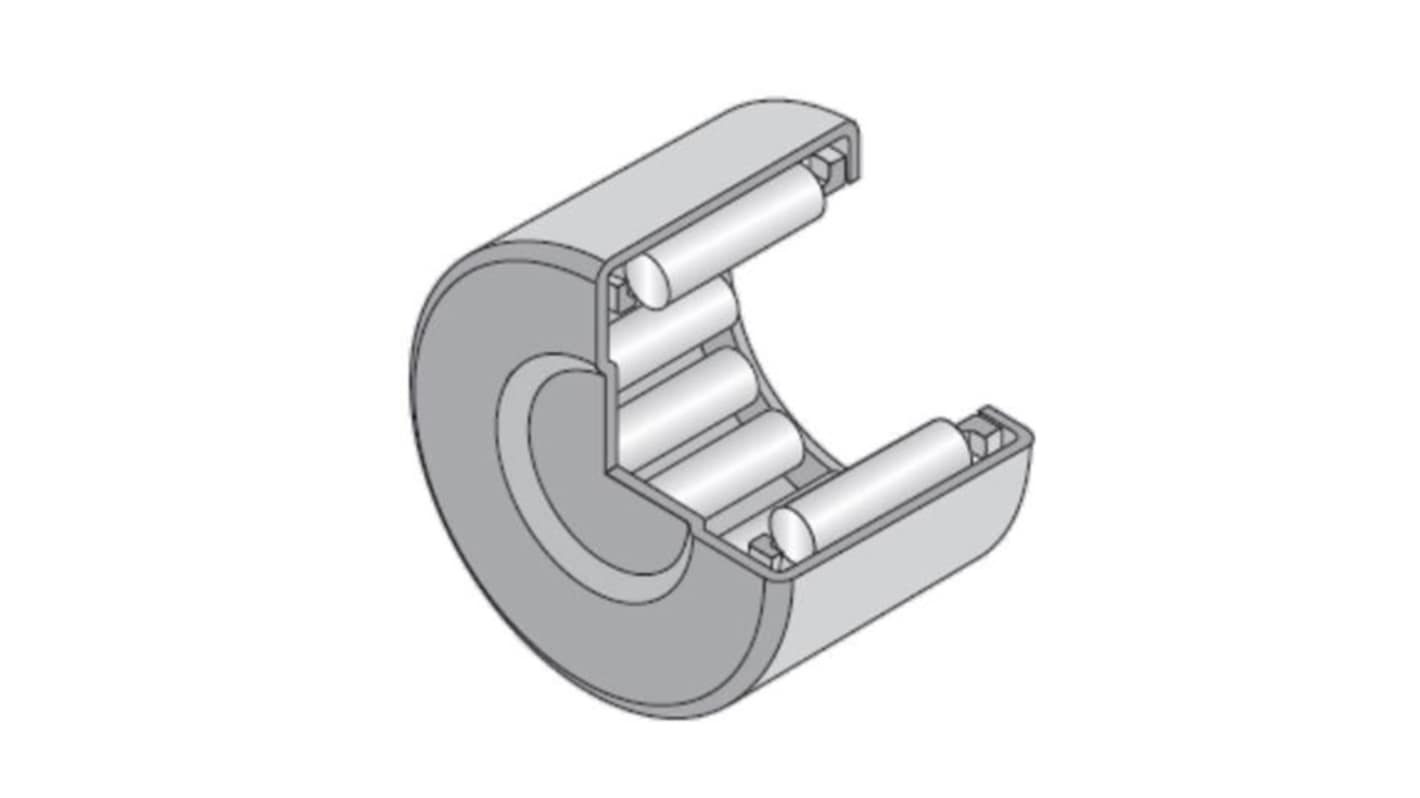

NTN BK2212 22 mm I.D Needle Roller Bearing Drawn Cup, Needle Roller, 28 mm O.D
- RS Stock No.:
- 454-487
- Mfr. Part No.:
- BK2212
- Brand:
- NTN
Subtotal (1 unit)*
£5.75
(exc. VAT)
£6.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £5.75 |
*price indicative
- RS Stock No.:
- 454-487
- Mfr. Part No.:
- BK2212
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 22 mm | |
| Race Width | 12mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Roller Material | Steel | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Maximum Speed - Grease | 7500rpm | |
| Maximum Speed - Oil | 11000rpm | |
| Standards/Approvals | RoHS, ISO Class 0 | |
| End Type | Closed | |
| Dynamic Load Rating | 9.75kN | |
| Limiting Speed | 7500, 11000rpm | |
| Static Load Rating | 14.3kN | |
| Series | BK2212 | |
| Internal Clearance | CN | |
| Outside Diameter | 28 mm | |
| Bearing Type | Drawn Cup, Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 22 mm | ||
Race Width 12mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Roller Material Steel | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Maximum Speed - Grease 7500rpm | ||
Maximum Speed - Oil 11000rpm | ||
Standards/Approvals RoHS, ISO Class 0 | ||
End Type Closed | ||
Dynamic Load Rating 9.75kN | ||
Limiting Speed 7500, 11000rpm | ||
Static Load Rating 14.3kN | ||
Series BK2212 | ||
Internal Clearance CN | ||
Outside Diameter 28 mm | ||
Bearing Type Drawn Cup, Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Drawn cup needle roller bearing is expertly engineered for a variety of applications where reliability and performance are paramount. This precision component is designed to excel in high-load environments, providing exceptional durability thanks to its robust construction. The closed-end design ensures optimal sealing, allowing it to maintain performance under various operating conditions. With meticulous attention to detail, this product seamlessly integrates into machinery, enabling smooth and efficient operation in even the most demanding situations. Take advantage of its superior characteristics to enhance your mechanical systems and ensure longevity and reliability in your operations.
Designed for ease of installation and maintenance
Endures high dynamic and static loads efficiently
Optimised for both grease and oil lubrication methods
Capable of operating across a wide temperature range
Constructed with premium materials for enhanced longevity
Lightweight yet robust, ensuring minimal impact on overall system weight
