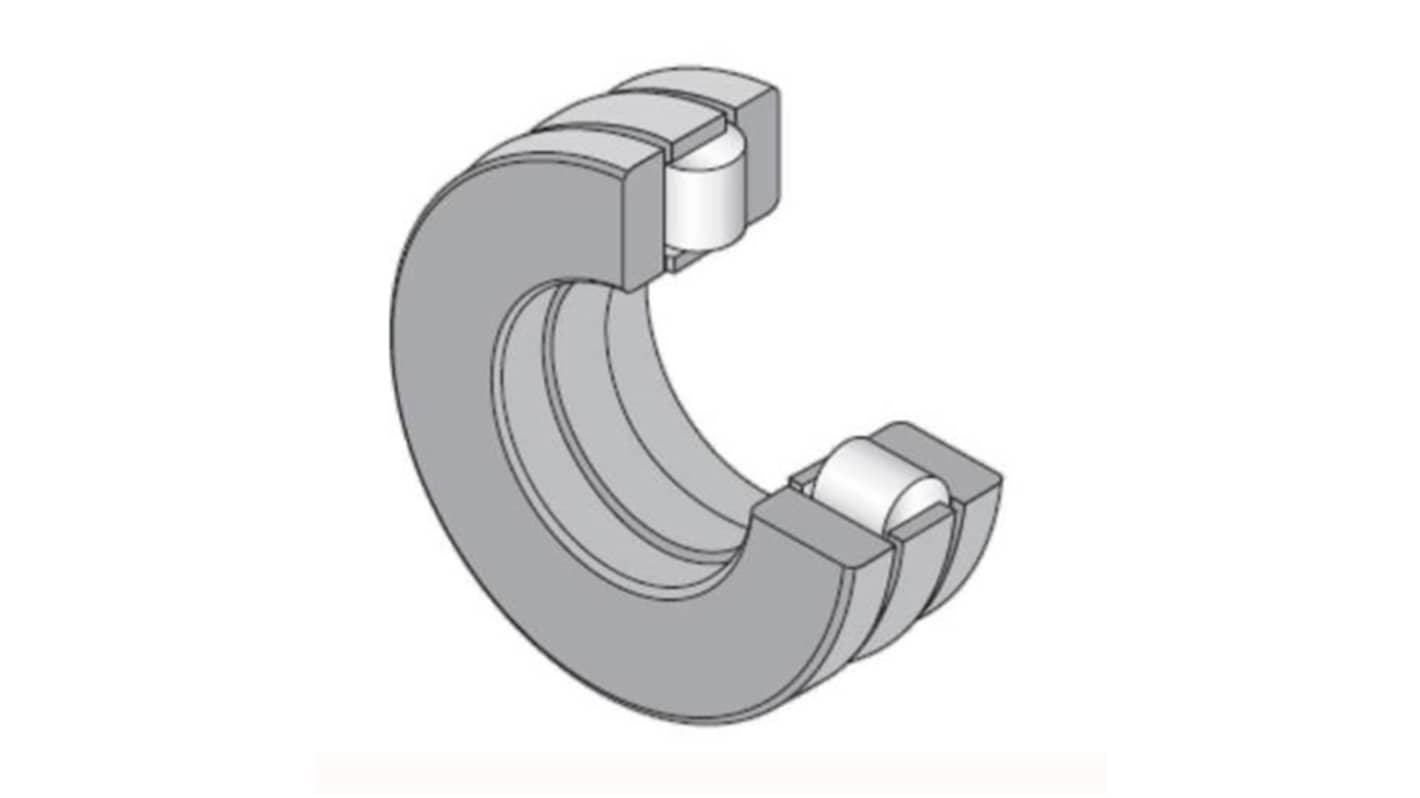

NTN 81103T2 Thrust Cylindrical Roller, Needle Roller 17 mm ID Needle Roller Thrust Bearing, 30 mm OD
- RS Stock No.:
- 454-576
- Mfr. Part No.:
- 81103T2
- Brand:
- NTN
Subtotal (1 unit)*
£27.89
(exc. VAT)
£33.47
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 7 unit(s) shipping from 18 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.89 |
*price indicative
- RS Stock No.:
- 454-576
- Mfr. Part No.:
- 81103T2
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 17mm | |
| Race Width | 9mm | |
| Bore Type | Round | |
| Cage Material | Nylon | |
| Roller Material | Steel | |
| Bearing Material | High Carbon Chrome Steel | |
| Static Load Rating | 29kN | |
| Outside Diameter | 30mm | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 12.7kN | |
| Standards/Approvals | RoHS | |
| Series | 811 | |
| Limiting Speed | 10000rpm | |
| Maximum Speed - Grease | 2500rpm | |
| Maximum Speed - Oil | 10000rpm | |
| Bearing Type | Thrust Cylindrical Roller, Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 17mm | ||
Race Width 9mm | ||
Bore Type Round | ||
Cage Material Nylon | ||
Roller Material Steel | ||
Bearing Material High Carbon Chrome Steel | ||
Static Load Rating 29kN | ||
Outside Diameter 30mm | ||
Number of Rows 1 | ||
Dynamic Load Rating 12.7kN | ||
Standards/Approvals RoHS | ||
Series 811 | ||
Limiting Speed 10000rpm | ||
Maximum Speed - Grease 2500rpm | ||
Maximum Speed - Oil 10000rpm | ||
Bearing Type Thrust Cylindrical Roller, Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Complete Thrust Bearing is designed to handle axial loads efficiently in various applications. It offers high load capacity with a compact design, ideal for limited radial space. The Thrust Cylindrical Roller Bearing is built to support heavy axial loads while maintaining smooth operation and durability.
Steel 100Cr6 rolling element material
Durable construction
High axial load capacity
