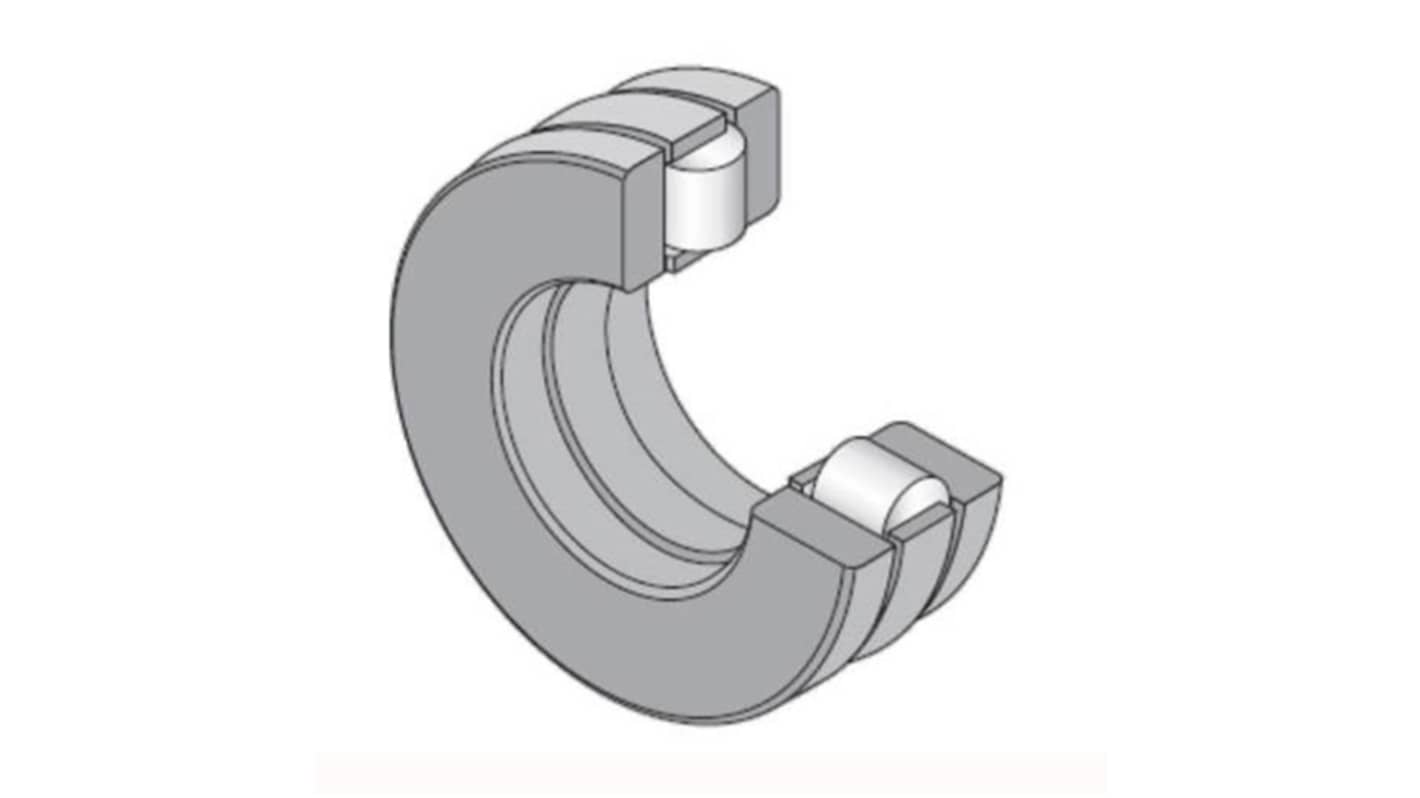

NTN 81109T2 Complete Thrust, Thrust Cylindrical Roller, Needle Roller 45 mm ID Thrust Roller Bearing, 65 mm OD
- RS Stock No.:
- 454-584
- Mfr. Part No.:
- 81109T2
- Brand:
- NTN
Subtotal (1 unit)*
£48.34
(exc. VAT)
£58.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £48.34 |
*price indicative
- RS Stock No.:
- 454-584
- Mfr. Part No.:
- 81109T2
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Thrust Roller Bearing | |
| Inside Diameter | 45 mm | |
| Race Width | 14mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Nylon | |
| Limiting Speed | 4400rpm | |
| Outside Diameter | 65 mm | |
| Series | 811 | |
| Static Load Rating | 135kN | |
| Number of Rows | 1 | |
| Bearing Material | High Carbon Chrome Steel | |
| Maximum Speed - Grease | 1100rpm | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 45.5kN | |
| Maximum Speed - Oil | 4400rpm | |
| Bearing Type | Complete Thrust, Thrust Cylindrical Roller, Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Thrust Roller Bearing | ||
Inside Diameter 45 mm | ||
Race Width 14mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Nylon | ||
Limiting Speed 4400rpm | ||
Outside Diameter 65 mm | ||
Series 811 | ||
Static Load Rating 135kN | ||
Number of Rows 1 | ||
Bearing Material High Carbon Chrome Steel | ||
Maximum Speed - Grease 1100rpm | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 45.5kN | ||
Maximum Speed - Oil 4400rpm | ||
Bearing Type Complete Thrust, Thrust Cylindrical Roller, Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Complete Thrust Bearing is designed to handle axial loads efficiently in various applications. It offers high load capacity with a compact design, ideal for limited radial space. The Thrust Cylindrical Roller Bearing is built to support heavy axial loads while maintaining smooth operation and durability.
Steel 100Cr6 rolling element material
Durable construction
High axial load capacity
