NTN 81102T2 Complete Thrust, Needle Roller, Thrust Cylindrical Roller 15 mm ID Needle Roller Thrust Bearing, 28 mm OD
- RS Stock No.:
- 454-575
- Mfr. Part No.:
- 81102T2
- Brand:
- NTN
Subtotal (1 unit)*
£27.89
(exc. VAT)
£33.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.89 |
*price indicative
- RS Stock No.:
- 454-575
- Mfr. Part No.:
- 81102T2
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 15mm | |
| Race Width | 9mm | |
| Bore Type | Round | |
| Cage Material | Nylon | |
| Roller Material | Steel | |
| Static Load Rating | 26.8kN | |
| Limiting Speed | 2800rpm | |
| Number of Rows | 1 | |
| Bearing Material | High Carbon Chrome Steel | |
| Maximum Speed - Grease | 2800rpm | |
| Maximum Speed - Oil | 11000rpm | |
| Series | 811 | |
| Outside Diameter | 28mm | |
| Dynamic Load Rating | 12.2kN | |
| Standards/Approvals | RoHS | |
| Bearing Type | Complete Thrust, Needle Roller, Thrust Cylindrical Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 15mm | ||
Race Width 9mm | ||
Bore Type Round | ||
Cage Material Nylon | ||
Roller Material Steel | ||
Static Load Rating 26.8kN | ||
Limiting Speed 2800rpm | ||
Number of Rows 1 | ||
Bearing Material High Carbon Chrome Steel | ||
Maximum Speed - Grease 2800rpm | ||
Maximum Speed - Oil 11000rpm | ||
Series 811 | ||
Outside Diameter 28mm | ||
Dynamic Load Rating 12.2kN | ||
Standards/Approvals RoHS | ||
Bearing Type Complete Thrust, Needle Roller, Thrust Cylindrical Roller | ||
- COO (Country of Origin):
- JP

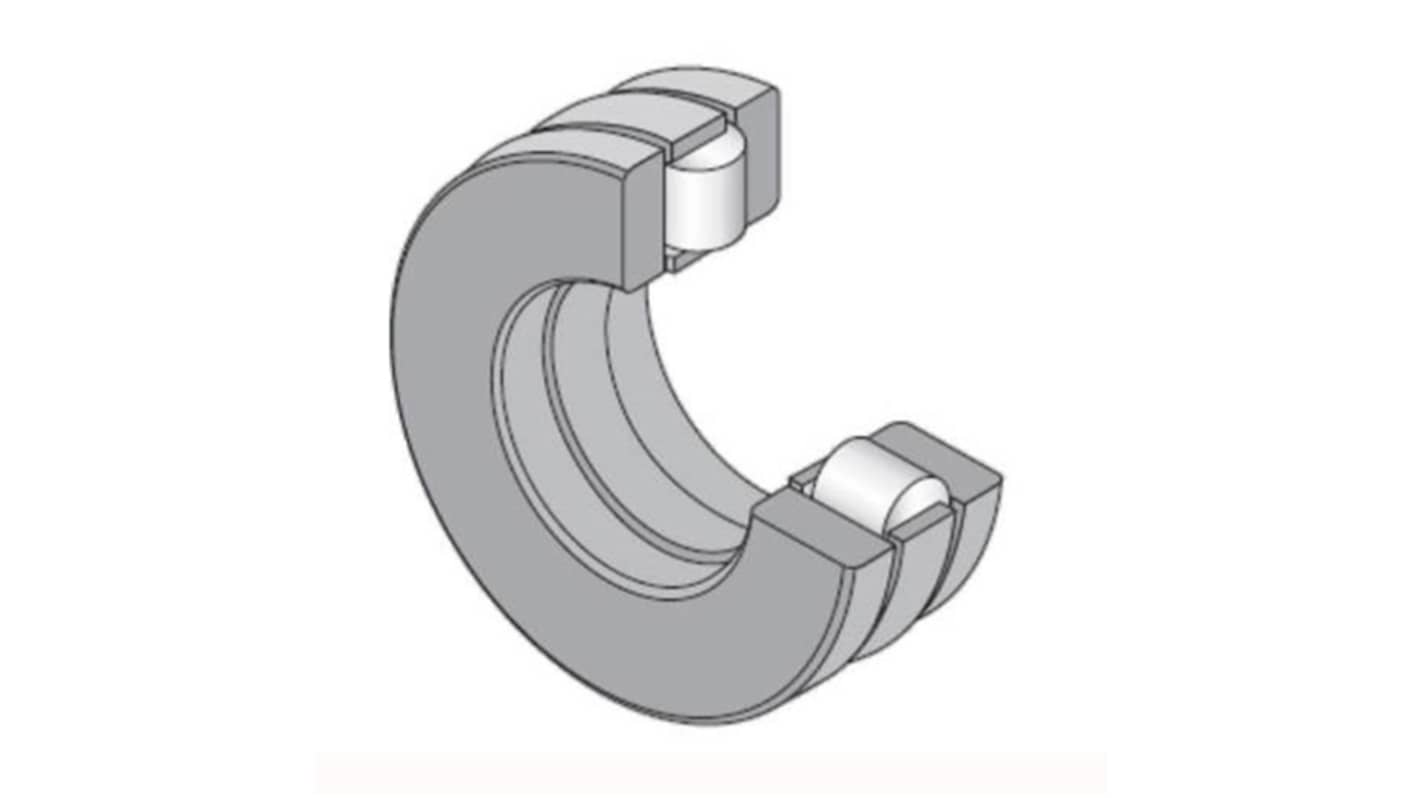

The NTN Complete Thrust Bearing is designed to handle axial loads efficiently in various applications. It offers high load capacity with a compact design, ideal for limited radial space. The Thrust Cylindrical Roller Bearing is built to support heavy axial loads while maintaining smooth operation and durability.
Steel 100Cr6 rolling element material
Durable construction
High axial load capacity
