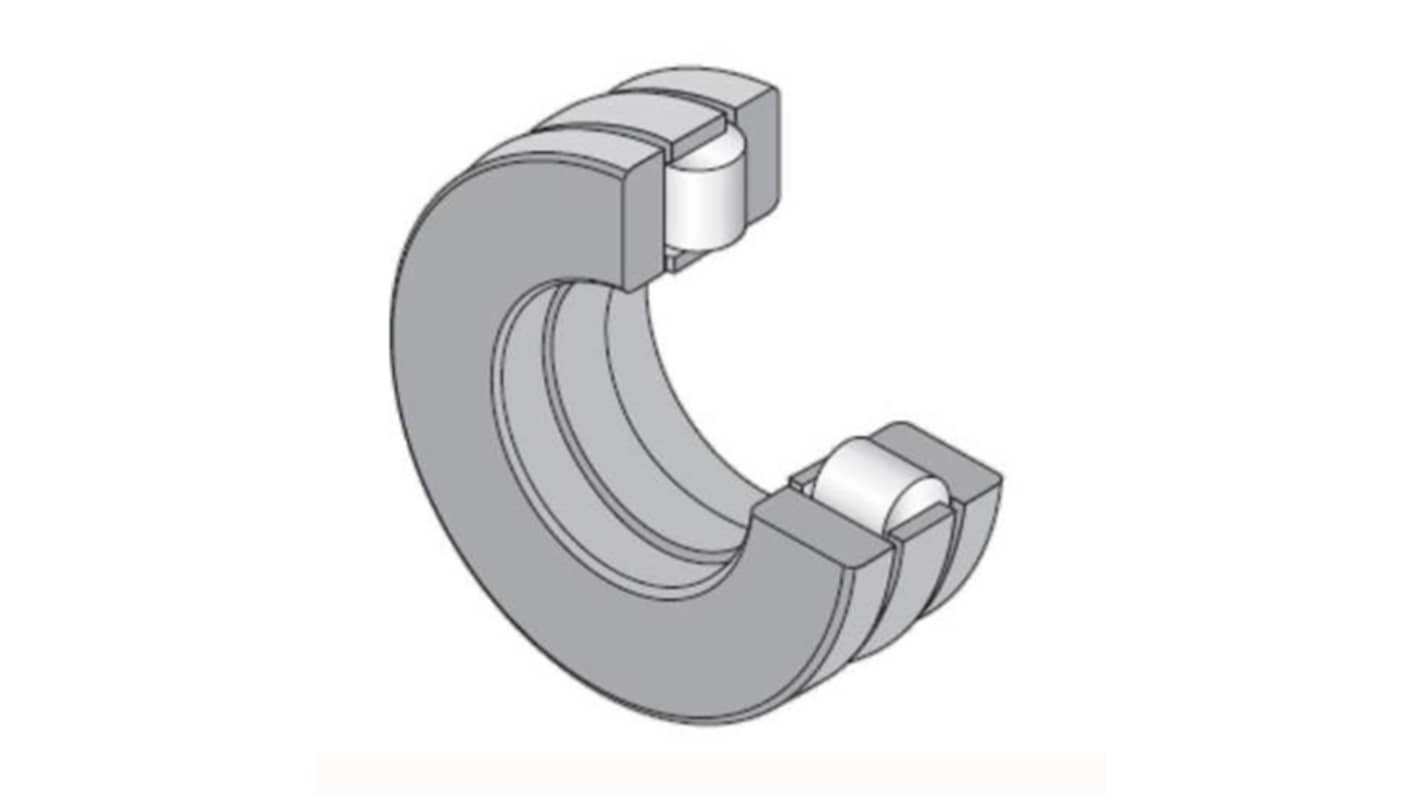

NTN 81124T2 120 mm ID Needle Roller Thrust Bearing Thrust Cylindrical Roller, Complete Thrust, Needle Roller, 155 mm OD
- RS Stock No.:
- 454-596
- Mfr. Part No.:
- 81124T2
- Brand:
- NTN
Subtotal (1 unit)*
£342.76
(exc. VAT)
£411.31
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £342.76 |
*price indicative
- RS Stock No.:
- 454-596
- Mfr. Part No.:
- 81124T2
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Needle Roller Thrust Bearing | |
| Inside Diameter | 120mm | |
| Race Width | 25mm | |
| Bore Type | Round | |
| Roller Material | Steel | |
| Cage Material | Nylon | |
| Outside Diameter | 155mm | |
| Dynamic Load Rating | 172kN | |
| Standards/Approvals | RoHS | |
| Series | 811 | |
| Bearing Material | High Carbon Chrome Steel | |
| Number of Rows | 1 | |
| Static Load Rating | 655kN | |
| Maximum Speed - Oil | 1800rpm | |
| Maximum Speed - Grease | 450rpm | |
| Limiting Speed | 450rpm | |
| Bearing Type | Thrust Cylindrical Roller, Complete Thrust, Needle Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Needle Roller Thrust Bearing | ||
Inside Diameter 120mm | ||
Race Width 25mm | ||
Bore Type Round | ||
Roller Material Steel | ||
Cage Material Nylon | ||
Outside Diameter 155mm | ||
Dynamic Load Rating 172kN | ||
Standards/Approvals RoHS | ||
Series 811 | ||
Bearing Material High Carbon Chrome Steel | ||
Number of Rows 1 | ||
Static Load Rating 655kN | ||
Maximum Speed - Oil 1800rpm | ||
Maximum Speed - Grease 450rpm | ||
Limiting Speed 450rpm | ||
Bearing Type Thrust Cylindrical Roller, Complete Thrust, Needle Roller | ||
- COO (Country of Origin):
- JP
The NTN Complete Thrust Bearing is designed to handle axial loads efficiently in various applications. It offers high load capacity with a Compact design, Ideal for limited radial space. The Thrust Cylindrical Roller Bearing is built to support heavy axial loads while maintaining smooth operation and durability.
Steel 100Cr6 rolling element material
Durable construction
High axial load capacity
