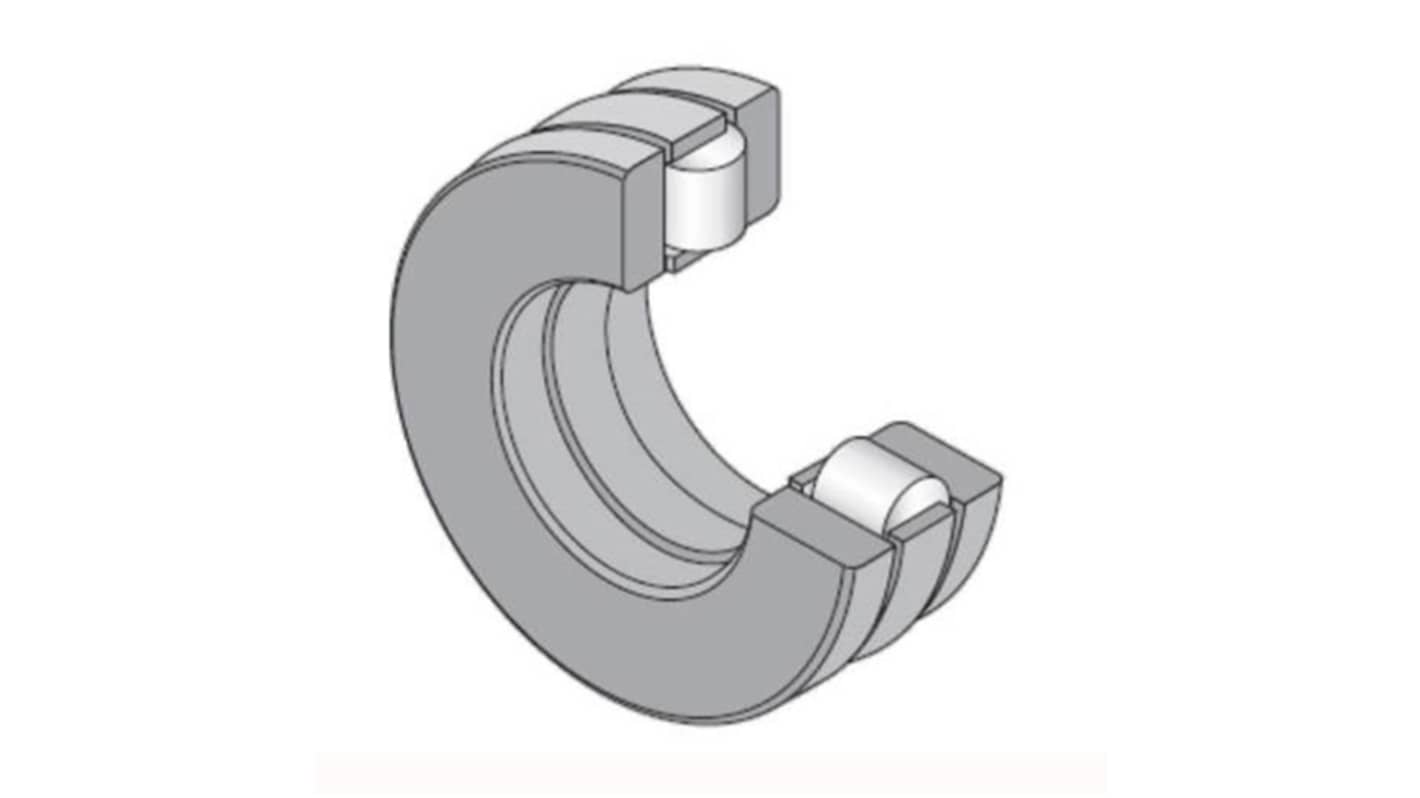

NTN 81130 Needle Roller, Complete Thrust, Thrust Cylindrical Roller 150 mm I.D Thrust Roller Bearing, 190 mm O.D
- RS Stock No.:
- 454-574
- Mfr. Part No.:
- 81130
- Brand:
- NTN
Subtotal (1 unit)*
£539.64
(exc. VAT)
£647.57
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £539.64 |
*price indicative
- RS Stock No.:
- 454-574
- Mfr. Part No.:
- 81130
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Thrust Roller Bearing | |
| Inside Diameter | 150 mm | |
| Race Width | 31mm | |
| Bore Type | Round | |
| Cage Material | Aluminium Alloy | |
| Roller Material | Steel | |
| Maximum Speed - Oil | 1400rpm | |
| Maximum Speed - Grease | 350rpm | |
| Series | 811 | |
| Limiting Speed | 1400rpm | |
| Outside Diameter | 190 mm | |
| Dynamic Load Rating | 214kN | |
| Bearing Material | High Carbon Chrome Steel | |
| Static Load Rating | 870kN | |
| Number of Rows | 1 | |
| Standards/Approvals | RoHS | |
| Bearing Type | Needle Roller, Complete Thrust, Thrust Cylindrical Roller | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Thrust Roller Bearing | ||
Inside Diameter 150 mm | ||
Race Width 31mm | ||
Bore Type Round | ||
Cage Material Aluminium Alloy | ||
Roller Material Steel | ||
Maximum Speed - Oil 1400rpm | ||
Maximum Speed - Grease 350rpm | ||
Series 811 | ||
Limiting Speed 1400rpm | ||
Outside Diameter 190 mm | ||
Dynamic Load Rating 214kN | ||
Bearing Material High Carbon Chrome Steel | ||
Static Load Rating 870kN | ||
Number of Rows 1 | ||
Standards/Approvals RoHS | ||
Bearing Type Needle Roller, Complete Thrust, Thrust Cylindrical Roller | ||
- COO (Country of Origin):
- JP
The NTN Complete Thrust Bearing is designed to handle axial loads efficiently in various applications. It offers high load capacity with a compact design, ideal for limited radial space. The Thrust Cylindrical Roller Bearing is built to support heavy axial loads while maintaining smooth operation and durability.
Steel 100Cr6 rolling element material
Durable construction
High axial load capacity
