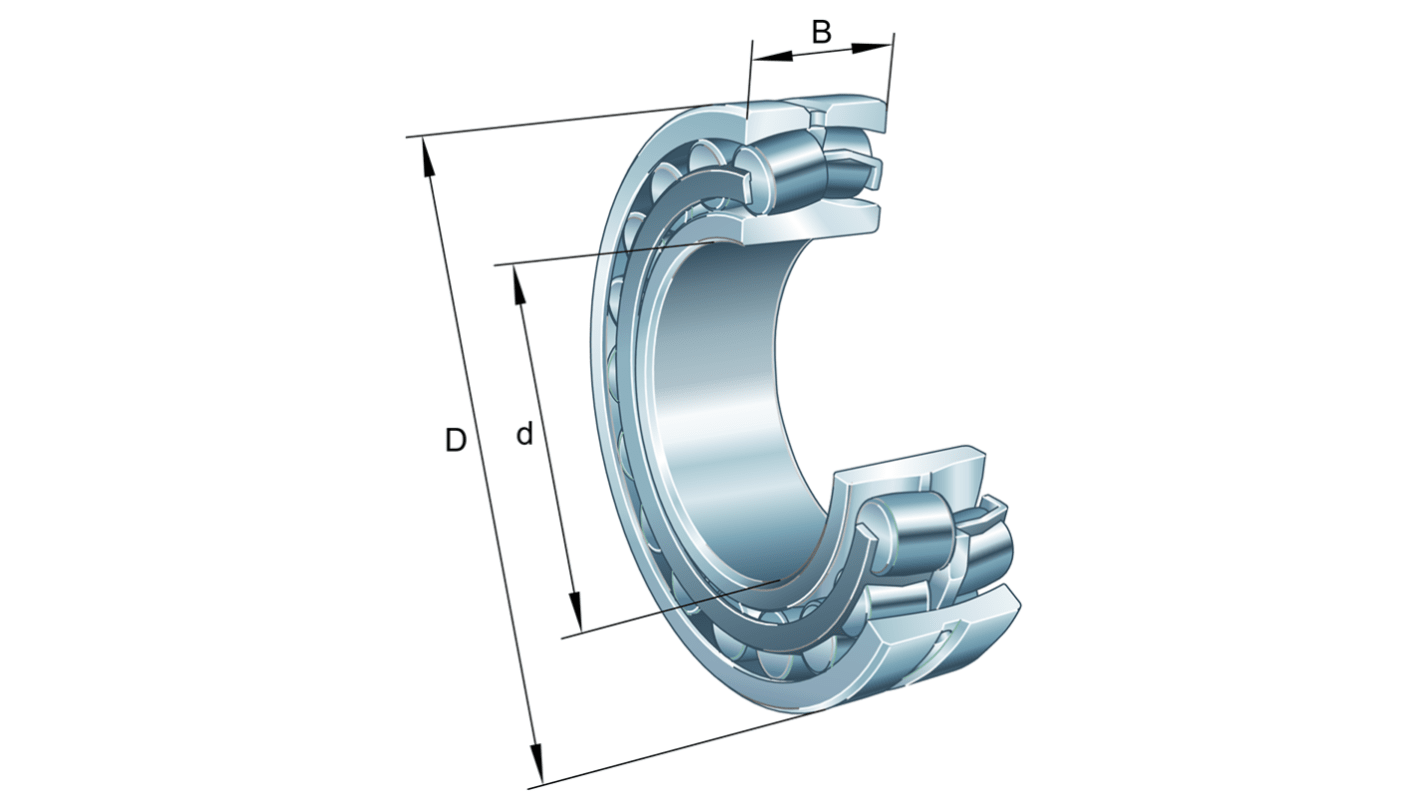

FAG 22319-E1-XL-K K Tapered 95 mm ID Spherical Roller Bearing, 200 mm OD
- RS Stock No.:
- 312-343
- Mfr. Part No.:
- 22319-E1-XL-K
- Brand:
- FAG
Subtotal (1 unit)*
£524.17
(exc. VAT)
£629.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £524.17 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 312-343
- Mfr. Part No.:
- 22319-E1-XL-K
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 95mm | |
| Race Width | 67mm | |
| Bore Type | K Tapered | |
| Cage Material | Carbon Steel | |
| Internal Clearance | CN | |
| Static Load Rating | 700000N | |
| Number of Rows | 2 | |
| Bearing Material | Steel | |
| Outside Diameter | 200mm | |
| Limiting Speed | 3700rpm | |
| Series | 223..-E1-K | |
| Standards/Approvals | DIN 635-2, RoHS | |
| Dynamic Load Rating | 670000N | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 95mm | ||
Race Width 67mm | ||
Bore Type K Tapered | ||
Cage Material Carbon Steel | ||
Internal Clearance CN | ||
Static Load Rating 700000N | ||
Number of Rows 2 | ||
Bearing Material Steel | ||
Outside Diameter 200mm | ||
Limiting Speed 3700rpm | ||
Series 223..-E1-K | ||
Standards/Approvals DIN 635-2, RoHS | ||
Dynamic Load Rating 670000N | ||
Better World Claim Extended Product Life, Saves Energy | ||
Better World Product Yes | ||
- COO (Country of Origin):
- DE
The FAG Spherical Roller Bearing offers high performance and reliability in demanding applications. Designed with a tapered bore, this product ensures precise alignment and excellent load distribution, making it ideal for use in heavy machinery and industrial equipment. Its innovative design features a robust construction with a sheet metal cage that enhances durability and supports effective lubrication. This bearing stands out for its ability to accommodate misalignment and axial loads in both directions, ensuring superior operation in diverse environments. With capabilities to work effectively at high speeds, it meets the needs of various applications including automotive and manufacturing sectors. This product provides an essential solution for quality engineering, delivering outstanding operational efficiency and extended service life.
Versatile use across multiple industrial applications
Temperature range accommodates both low and high operating temperatures
Innovative cage design promotes efficient lubricant circulation
