FAG 22319-E1-XL Cylindrical 95 mm ID Roller Bearing, 200 mm OD
- RS Stock No.:
- 312-598
- Mfr. Part No.:
- 22319-E1-XL
- Brand:
- FAG
Subtotal (1 unit)*
£524.17
(exc. VAT)
£629.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £524.17 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 312-598
- Mfr. Part No.:
- 22319-E1-XL
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Roller Bearing | |
| Inside Diameter | 95mm | |
| Race Width | 67mm | |
| Bore Type | Cylindrical | |
| Cage Material | Sheet Metal | |
| Static Load Rating | 700000N | |
| Outside Diameter | 200mm | |
| Standards/Approvals | RoHS, DIN 635-2 | |
| Series | 223E1 | |
| Bearing Material | Steel | |
| Dynamic Load Rating | 670000N | |
| Limiting Speed | 3700rpm | |
| Number of Rows | 2 | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Roller Bearing | ||
Inside Diameter 95mm | ||
Race Width 67mm | ||
Bore Type Cylindrical | ||
Cage Material Sheet Metal | ||
Static Load Rating 700000N | ||
Outside Diameter 200mm | ||
Standards/Approvals RoHS, DIN 635-2 | ||
Series 223E1 | ||
Bearing Material Steel | ||
Dynamic Load Rating 670000N | ||
Limiting Speed 3700rpm | ||
Number of Rows 2 | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Saves Energy | ||
- COO (Country of Origin):
- DE

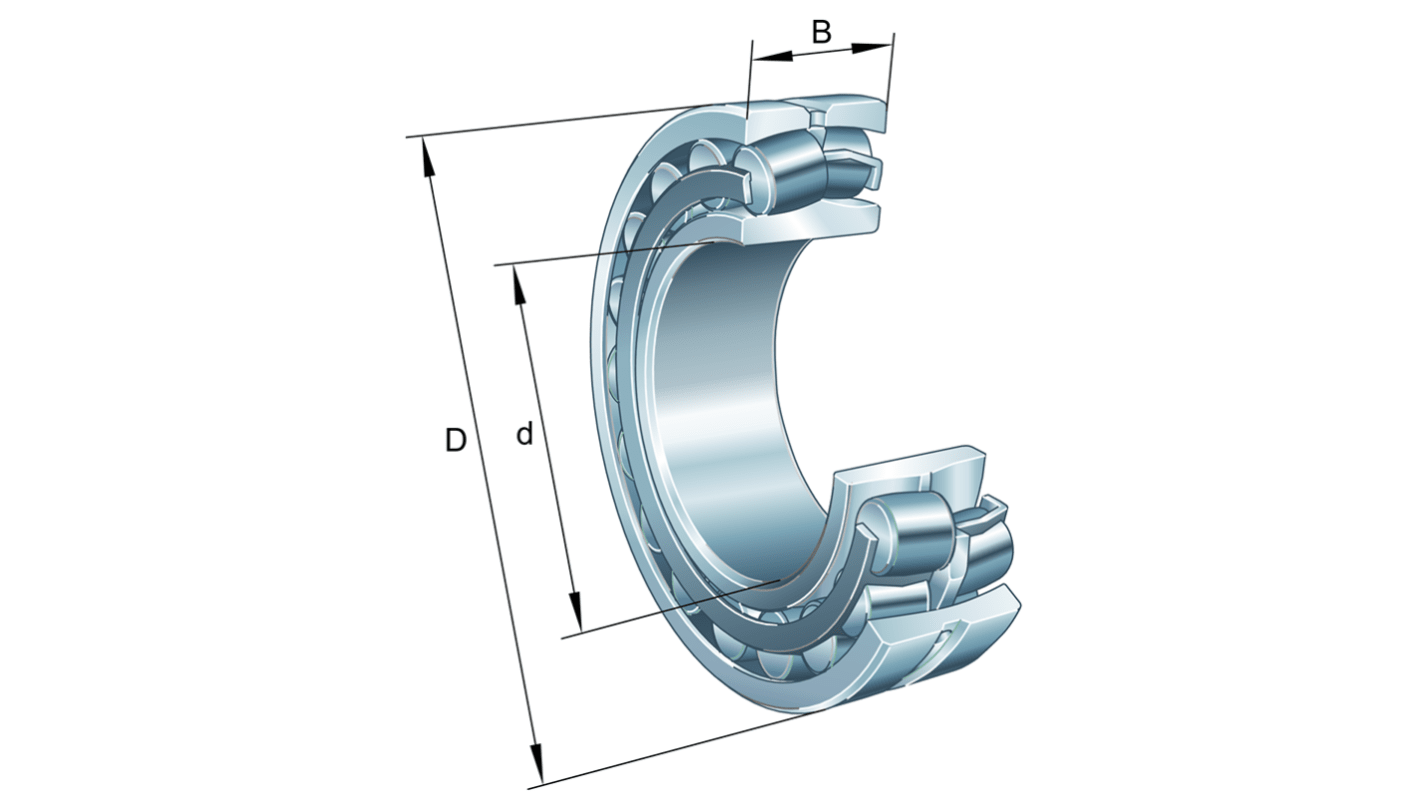

The FAG Spherical Roller Bearing represents a pinnacle of engineering precision, designed specifically for demanding applications. Boasting a robust construction that optimises load distribution, this bearing excels in both radial and axial load scenarios, ensuring exceptional durability. Its design features enhance reliability under extreme conditions, making it ideal for various industrial environments.
Capable of handling extreme temperatures enhancing versatility
Features a cylindrical bore type that aids in seamless installation
Designed to withstand various angular errors and misalignment
Efficiently balances radial and axial loads in two directions
