FAG NJ2309-E-XL-TVP2-C3 45 mm ID Cylindrical Roller Bearing, 100 mm OD
- RS Stock No.:
- 312-099
- Mfr. Part No.:
- NJ2309-E-XL-TVP2-C3
- Brand:
- FAG
Subtotal (1 unit)*
£128.60
(exc. VAT)
£154.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 07 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £128.60 |
*price indicative
- RS Stock No.:
- 312-099
- Mfr. Part No.:
- NJ2309-E-XL-TVP2-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 45 mm | |
| Race Width | 36mm | |
| Cage Material | Polyamide 66 | |
| Limiting Speed | 9.8rpm | |
| Number of Rows | 1 | |
| Static Load Rating | 154N | |
| Dynamic Load Rating | 163N | |
| Outside Diameter | 100 mm | |
| Internal Clearance | CN | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 45 mm | ||
Race Width 36mm | ||
Cage Material Polyamide 66 | ||
Limiting Speed 9.8rpm | ||
Number of Rows 1 | ||
Static Load Rating 154N | ||
Dynamic Load Rating 163N | ||
Outside Diameter 100 mm | ||
Internal Clearance CN | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO

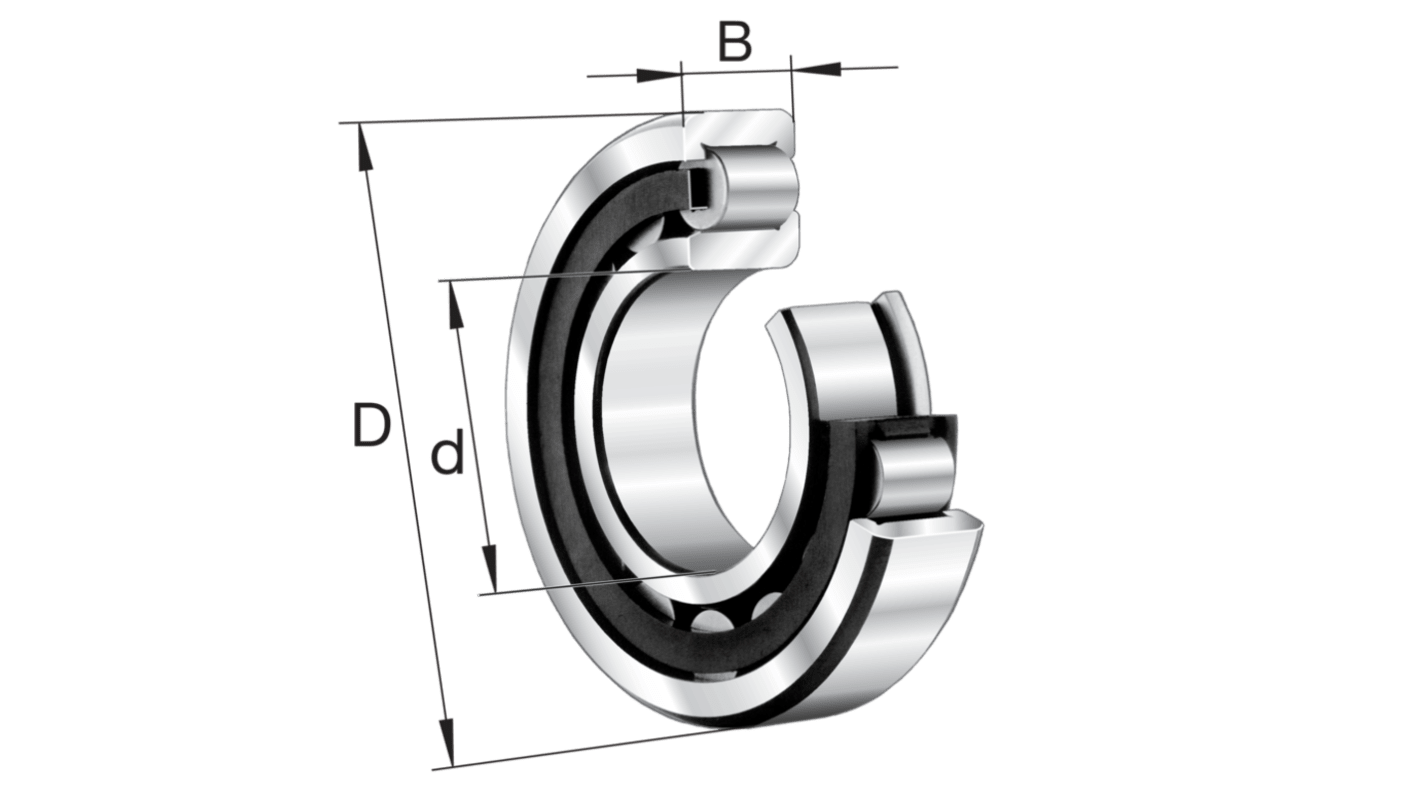

The FAG Cylindrical Roller Bearing is a single row, semi locating bearing designed to handle both radial and axial loads. It features a cage that helps guide the rollers, ensuring smooth and efficient operation. This bearing has two ribs on the outer ring and one rib on the inner ring, which improves load distribution and enhances stability.
Radial load
Axial load in one direction
Grease lubrication
Oil lubrication
Not sealed
