Better World

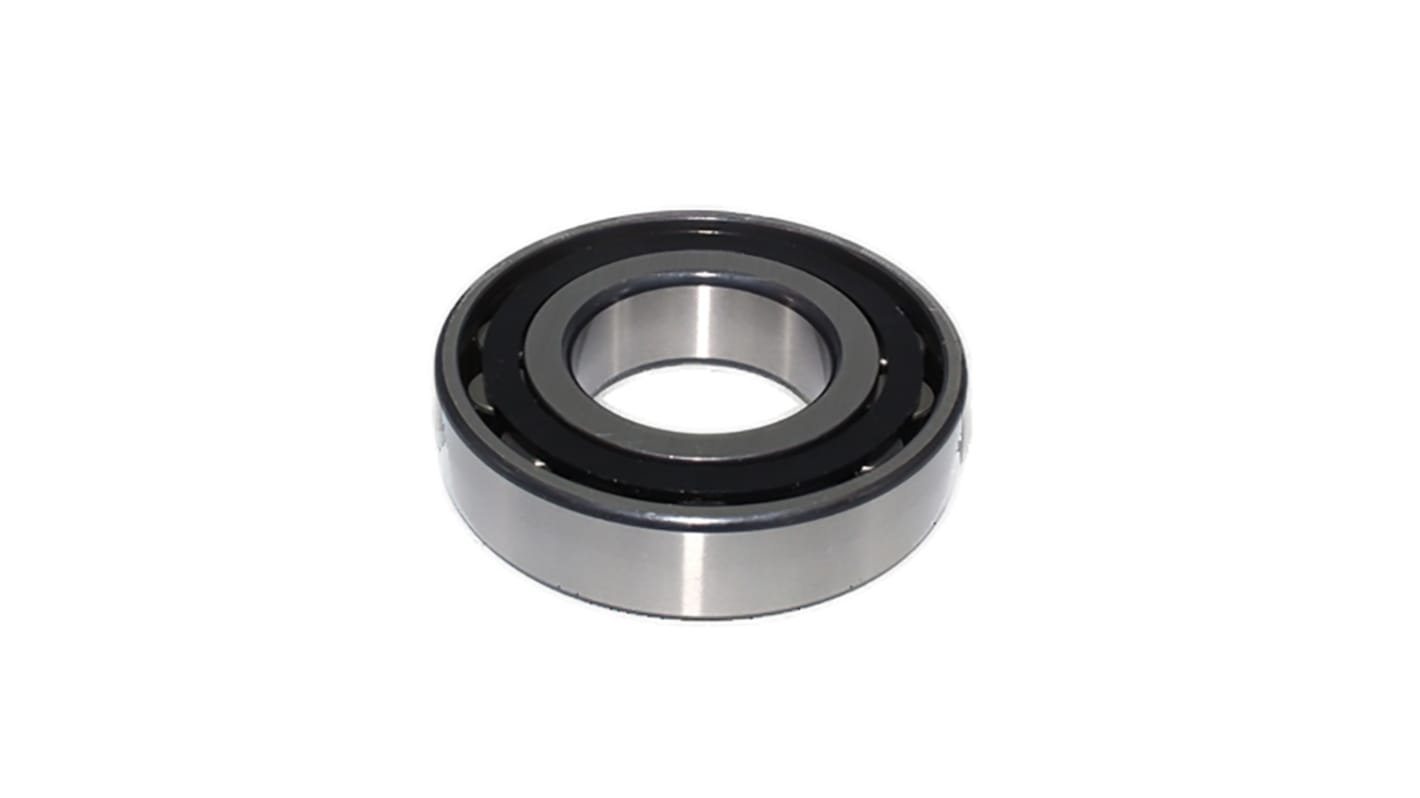

INA N209-E-XL-TVP2-C3 45 mm ID Roller Bearing, 85 mm OD
- RS Stock No.:
- 194-7263
- Mfr. Part No.:
- N209-E-XL-TVP2-C3
- Brand:
- INA
Bulk discount available
Subtotal (1 unit)*
£96.49
(exc. VAT)
£115.79
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £96.49 |
| 5 - 9 | £92.64 |
| 10 - 24 | £90.71 |
| 25 + | £88.78 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 194-7263
- Mfr. Part No.:
- N209-E-XL-TVP2-C3
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Roller Bearing | |
| Inside Diameter | 45mm | |
| Race Width | 19mm | |
| Bore Type | Parallel | |
| Static Load Rating | 63kN | |
| Better World Product | Yes | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 72kN | |
| Outside Diameter | 85mm | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Roller Bearing | ||
Inside Diameter 45mm | ||
Race Width 19mm | ||
Bore Type Parallel | ||
Static Load Rating 63kN | ||
Better World Product Yes | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 72kN | ||
Outside Diameter 85mm | ||
Better World Claim Extended Product Life, Saves Energy | ||
Single row cylindrical roller bearings with cage are suitable where:
Bearing arrangements are subjected to very high radial loads
Not only high radial forces but also axial loads from one or both directions must be supported by the bearing position (semi-locating or locating bearing function)
Bearing arrangements must have very high rigidity
Axial displacements of the shaft relative to the housing must be compensated without constraint in the bearing (in the case of bearings with a non-locating or semi-locating bearing function)
High radial loads and very high speeds occur but the very high radial load carrying capacity of full complement cylindrical roller bearings is not required
The bearings should be separable (one bearing ring can be removed) for easier mounting
