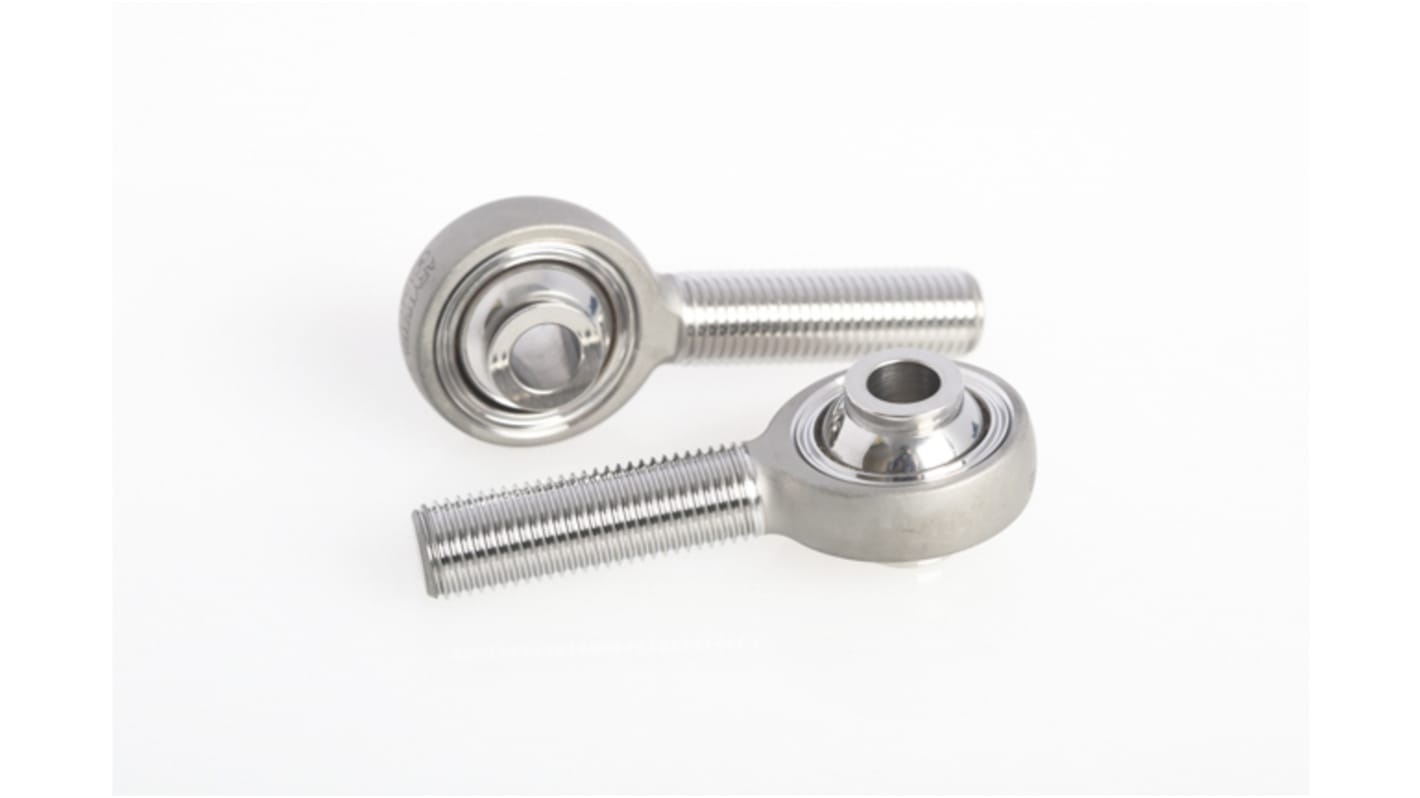

NMB 7/16-20 Male Stainless Steel Rod End, 9.52mm Bore, UNF Thread Standard, Male Connection Gender
- RS Stock No.:
- 185-6529
- Mfr. Part No.:
- ARYTL6E(R)
- Brand:
- NMB
Bulk discount available
Subtotal (1 unit)*
£176.19
(exc. VAT)
£211.43
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £176.19 |
| 5 - 9 | £169.15 |
| 10 + | £165.62 |
*price indicative
- RS Stock No.:
- 185-6529
- Mfr. Part No.:
- ARYTL6E(R)
- Brand:
- NMB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NMB | |
| Connection Size | 7/16-20 Male | |
| Bore Size | 9.52mm | |
| Material | Stainless Steel | |
| Static Load Rating | 36740N | |
| Connection Thread Standard | UNF | |
| Maximum Operating Temperature | +121°C | |
| Minimum Operating Temperature | -54°C | |
| Connection Gender | Male | |
Select all | ||
|---|---|---|
Brand NMB | ||
Connection Size 7/16-20 Male | ||
Bore Size 9.52mm | ||
Material Stainless Steel | ||
Static Load Rating 36740N | ||
Connection Thread Standard UNF | ||
Maximum Operating Temperature +121°C | ||
Minimum Operating Temperature -54°C | ||
Connection Gender Male | ||
The NMB Rod End is a male self lubricating, UNF thread standard with bore size of 9.52mm and connection size of 7/16-20 .
Material: Stainless Steel
