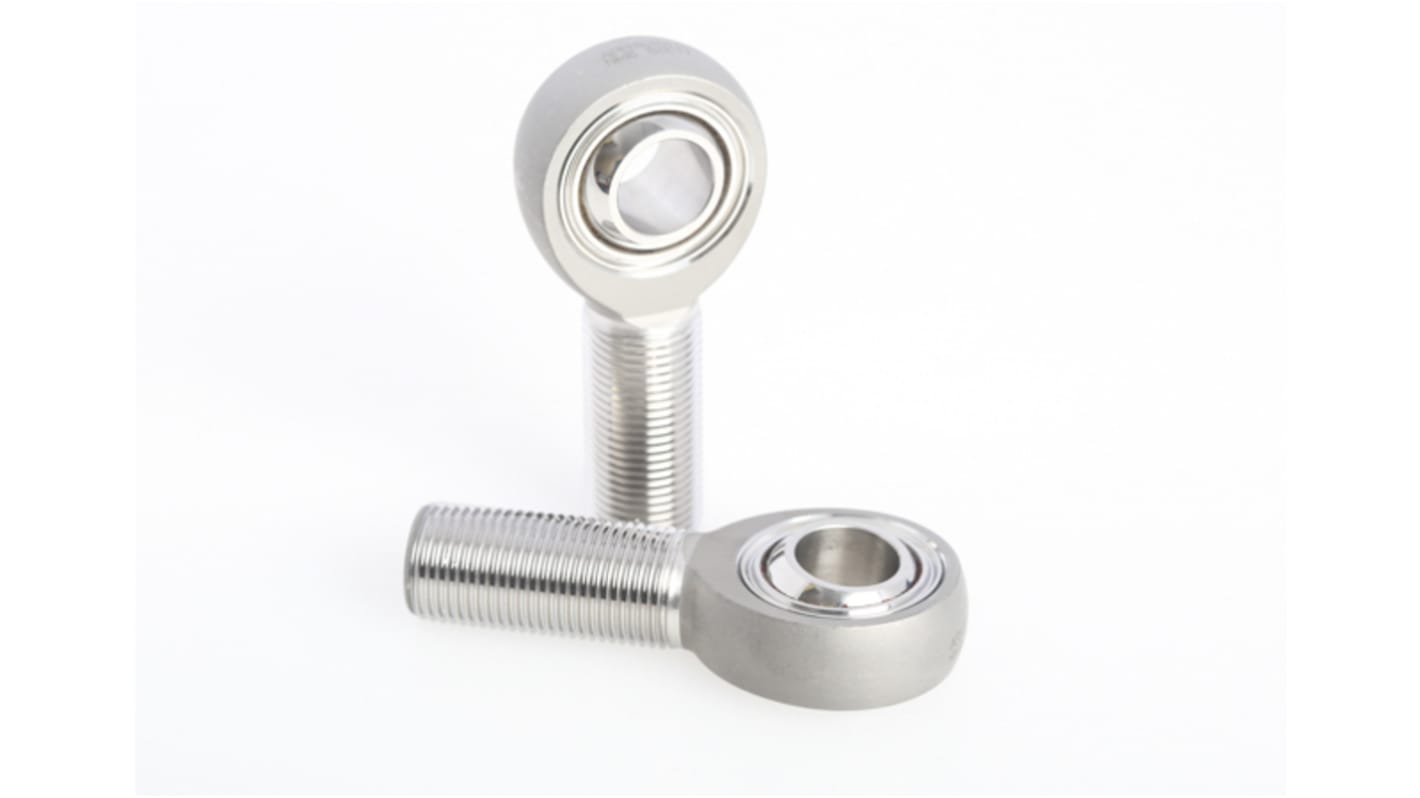

NMB 7/16-20 Male Stainless Steel Rod End, 9.52mm Bore, UNF Thread Standard, Male Connection Gender

View all Rod Ends
Bulk discount available

Subtotal (1 unit)*

£131.09

(exc. VAT)

£157.31

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£131.09
5 - 9£125.85
10 +£123.22

*price indicative

RS Stock No.:
185-6509
Mfr. Part No.:
ARHT6E(R)
Brand:
NMB
Find similar products by selecting one or more attributes.
Select all

Brand

NMB

Connection Size

7/16-20 Male

Bore Size

9.52mm

Material

Stainless Steel

Static Load Rating

48483 (Ultimate) N, 7384 (Static) N

Connection Thread Standard

UNF

Maximum Operating Temperature

+121°C

Minimum Operating Temperature

-54°C

Connection Gender

Male

NMB ARHT-E, ARHT series male rod end bearings, Heavy Duty, self-lubricating 3- piece, Right hand thread. Ideal in extreme conditions.
Materials: Bearing: Stainless steel CRES 440C. Outer cage: Stainless steel CRES 410 with heat treatment. Coating: Teflon. Rod body: C.M. steel with heat treatment and surface coating. Rod end bearings are used on the ends of cylinders, linkages, shafts and rods where an articulating joint is needed, they take up angular misalignments between connecting components. Benefits include long service life, high reliability and low maintenance. Applications are across many industry sectors.
