NMB 1/2-20 Male Stainless Steel Rod End UNF, 11.11 mm Bore
- RS Stock No.:
- 185-6510
- Mfr. Part No.:
- ARHT7E(R)
- Brand:
- NMB
Bulk discount available
Subtotal (1 unit)*
£155.08
(exc. VAT)
£186.10
(inc. VAT)
FREE delivery for orders over £50.00
Stocked by manufacturer
- Ready to ship from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £155.08 |
| 5 - 9 | £148.88 |
| 10 + | £145.77 |
*price indicative
- RS Stock No.:
- 185-6510
- Mfr. Part No.:
- ARHT7E(R)
- Brand:
- NMB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NMB | |
| Connection Size | 1/2-20 Male | |
| Product Type | Rod End | |
| Bore Size | 11.11 mm | |
| Material | Stainless Steel | |
| Thread Standard | UNF | |
| Static Load Rating | 8.23kN | |
| Minimum Operating Temperature | -54°C | |
| Outside Diameter | 29.21 mm | |
| Maximum Operating Temperature | 121°C | |
| Overall Width | 11.48mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand NMB | ||
Connection Size 1/2-20 Male | ||
Product Type Rod End | ||
Bore Size 11.11 mm | ||
Material Stainless Steel | ||
Thread Standard UNF | ||
Static Load Rating 8.23kN | ||
Minimum Operating Temperature -54°C | ||
Outside Diameter 29.21 mm | ||
Maximum Operating Temperature 121°C | ||
Overall Width 11.48mm | ||
Standards/Approvals No | ||

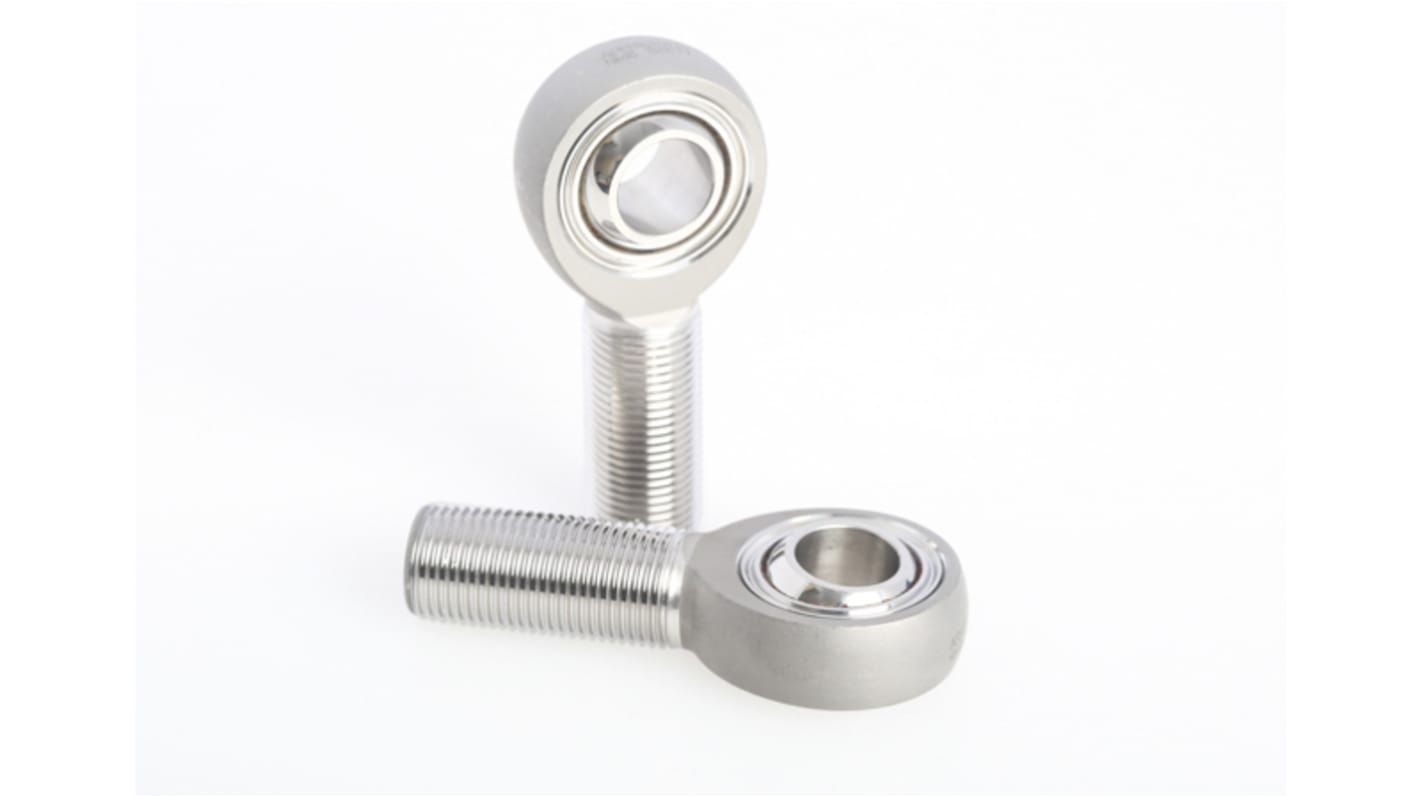

NMB ARHT-E, ARHT series male rod end bearings, Heavy Duty, self-lubricating 3- piece, Right hand thread. Ideal in extreme conditions.
Materials: Bearing: Stainless steel CRES 440C. Outer cage: Stainless steel CRES 410 with heat treatment. Coating: Teflon. Rod body: C.M. steel with heat treatment and surface coating. Rod end bearings are used on the ends of cylinders, linkages, shafts and rods where an articulating joint is needed, they take up angular misalignments between connecting components. Benefits include long service life, high reliability and low maintenance. Applications are across many industry sectors.
