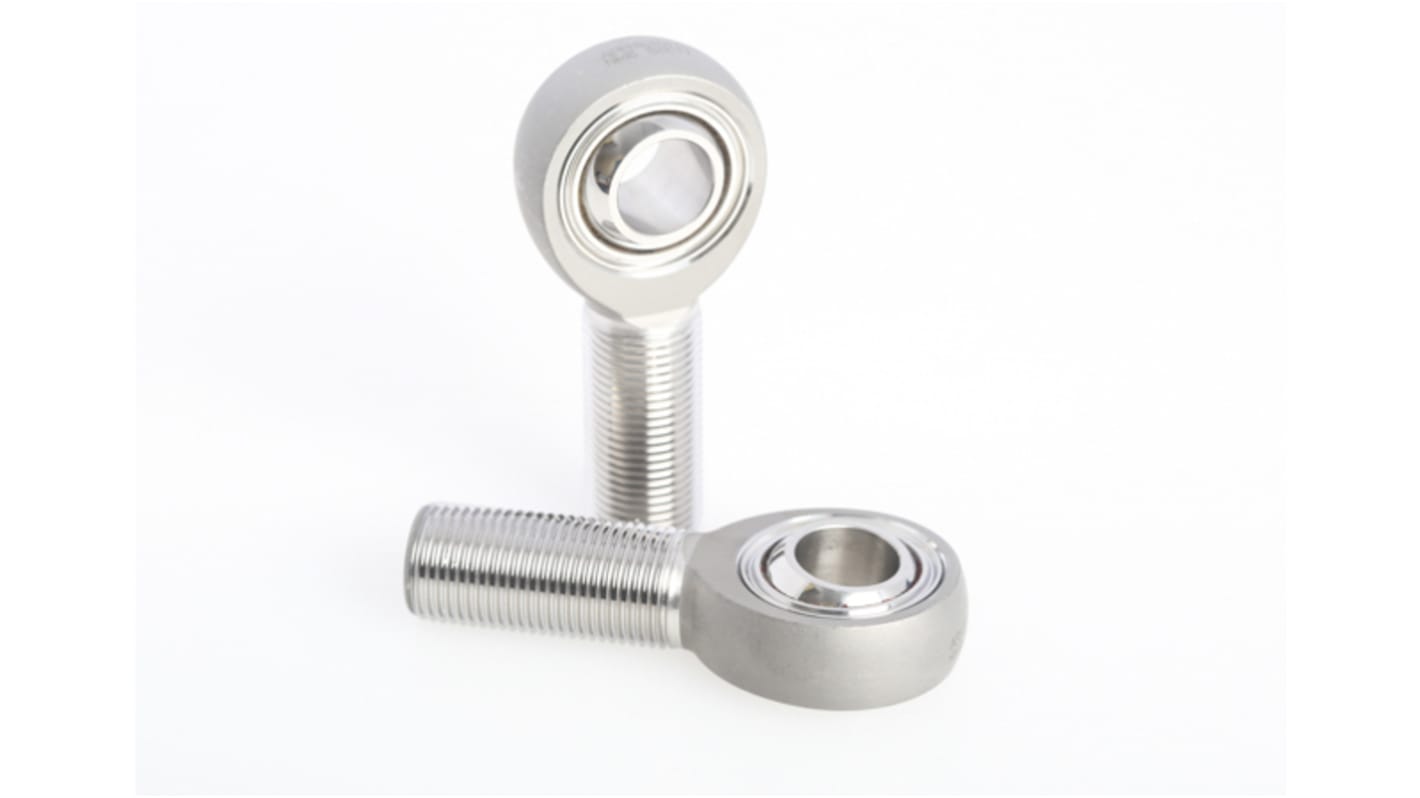

NMB 7/16-20 Male Stainless Steel Rod End, 9.52mm Bore, UNF Thread Standard, Male Connection Gender
- RS Stock No.:
- 185-6515
- Mfr. Part No.:
- ARHTL6E(R)
- Brand:
- NMB
Available to back order for despatch 29/05/2024
Added
Price Each
£132.43
(exc. VAT)
£158.92
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £132.43 |
| 5 - 9 | £127.13 |
| 10 + | £124.48 |
- RS Stock No.:
- 185-6515
- Mfr. Part No.:
- ARHTL6E(R)
- Brand:
- NMB
Technical Reference
Legislation and Compliance
Product Details
NMB ARHT-E, ARHT series male rod end bearings, Heavy Duty, self-lubricating 3- piece, Left hand thread. Ideal in extreme conditions.
Materials: Bearing: Stainless steel CRES 440C. Outer cage: Stainless steel CRES 410 with heat treatment. Coating: Teflon. Rod body: C.M. steel with heat treatment and surface coating. Rod end bearings are used on the ends of cylinders, linkages, shafts and rods where an articulating joint is needed, they take up angular misalignments between connecting components. Benefits include long service life, high reliability and low maintenance. Applications are across many industry sectors.
Materials: Bearing: Stainless steel CRES 440C. Outer cage: Stainless steel CRES 410 with heat treatment. Coating: Teflon. Rod body: C.M. steel with heat treatment and surface coating. Rod end bearings are used on the ends of cylinders, linkages, shafts and rods where an articulating joint is needed, they take up angular misalignments between connecting components. Benefits include long service life, high reliability and low maintenance. Applications are across many industry sectors.
Specifications
Attribute | Value |
|---|---|
| Connection Size | 7/16-20 Male |
| Bore Size | 9.52mm |
| Material | Stainless Steel |
| Static Load Rating | 48483 (Ultimate) N, 7384 (Static) N |
| Connection Thread Standard | UNF |
| Maximum Operating Temperature | +121°C |
| Minimum Operating Temperature | -54°C |
| Connection Gender | Male |
