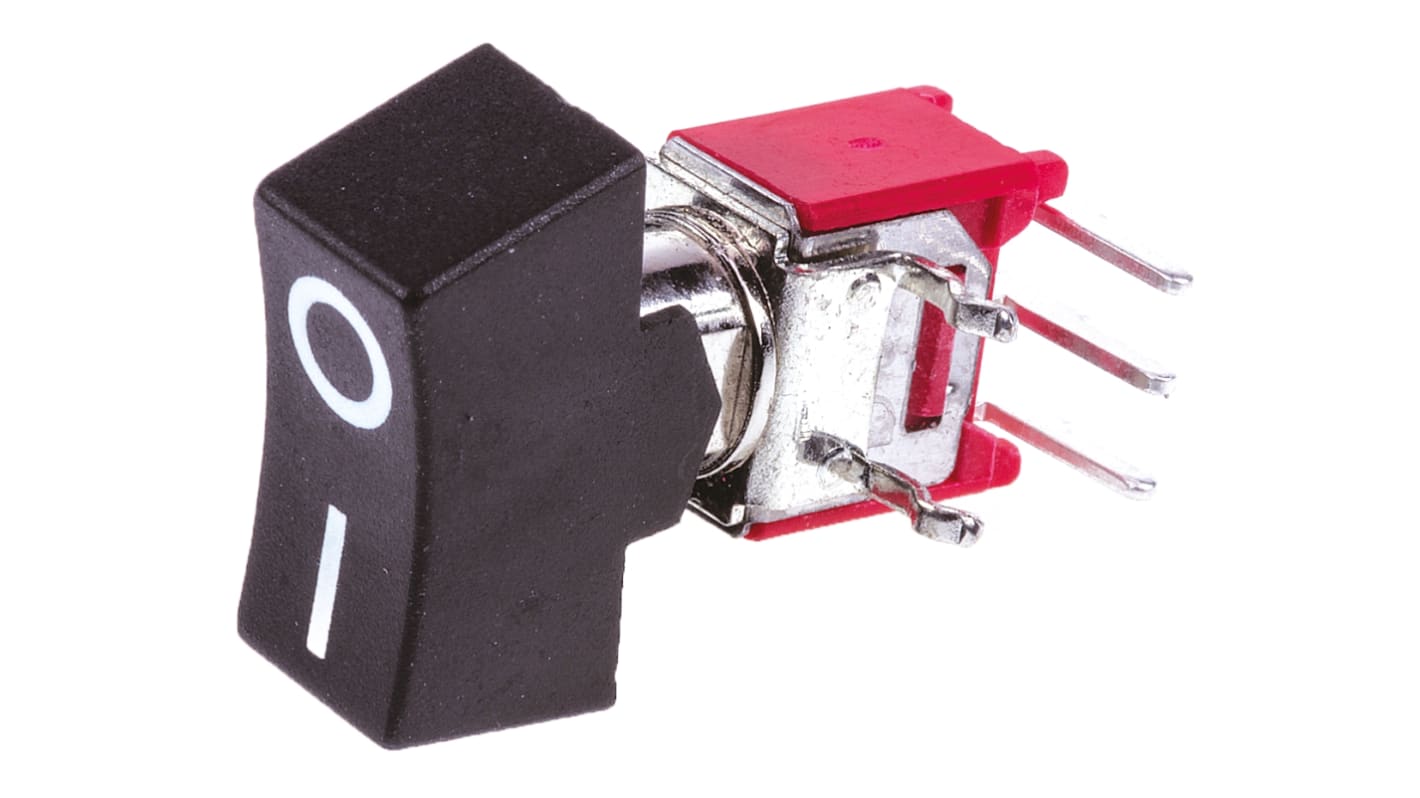

RS PRO SPDT, On-(On) Rocker Switch Panel Mount
- RS Stock No.:
- 734-6918
- Brand:
- RS PRO
1398 In stock - FREE next working day delivery available
8 available from Europe for delivery within 1 working day(s).
Added
Price Each
£3.02
(exc. VAT)
£3.62
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £3.02 |
| 25 - 49 | £2.65 |
| 50 - 99 | £2.57 |
| 100 - 249 | £2.36 |
| 250 + | £2.23 |
- RS Stock No.:
- 734-6918
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
Sub-Miniature Rocker Switches - 4M Series
These Sub-Miniature Rocker Switches are available in a variety of switch configurations with SPDT and DPDT contact configurations. Silver plated Brass contacts with a mechanical life of 30000 make and break cycles are a feature of these Sub-Miniature Rocker Switches . All these Sub-Miniature Rocker Switches have a UL94V0 case material with Nickel plated Brass bushings and stainless steel housings.
Rocker Switches - RS
The RS range of Miniature and Sub-Miniature Rockers Switches are available in a variety of Contact and Switch configurations.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | On-(On) |
| Panel Cut Out Width | 15.75mm |
| Panel Cut Out Height | 7.11mm |
| Contact Current Rating | 3 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| Terminal Type | Right Angle PC Pin |
| Legend Text | On (symbol); Off (symbol) |
| Actuator Shape | Rectangular |
| AC Voltage Rating | 125 V, 250V |
| Panel Cut Out Size | 7.11 x 15.75mm |
| Case Material | Diallyl Phthalate |
| Minimum Operating Temperature | -30°C |
| Mechanical Life | 30000Operations |
| Contact Resistance | 20mΩ |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -30 → +85°C |
| Contact Material | Silver Plated Brass |
